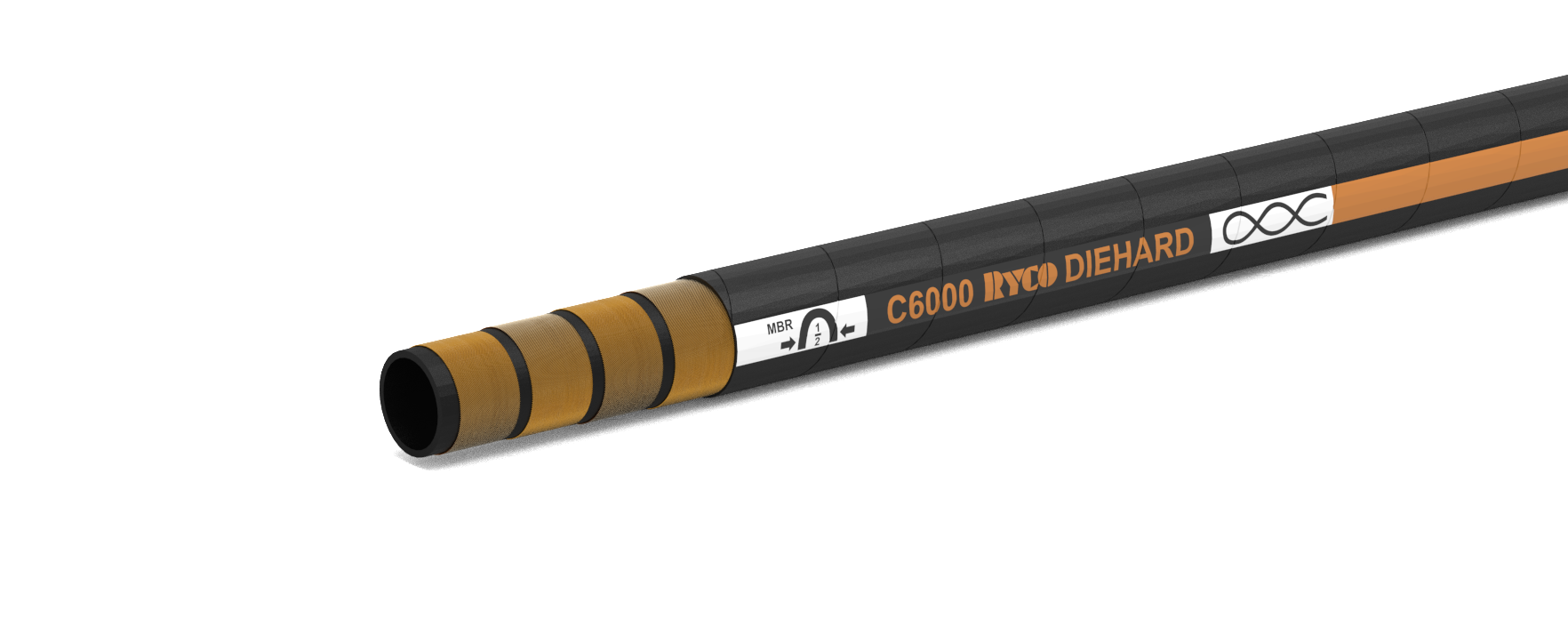

C6000D ISOBARIC – Four Wire Spiral 6100 psi Ultra Flexible Hose DIEHARD™ Cover

Technical Specifications:

Ultra flexiblility and small bend radius provides easy installation in compact environments. Extremely high pressure hydraulic oil lines. Constant pressure (Isobaric) 420 bar / 6100 psi in all sizes.

TUBE: Black, oil resistant synthetic rubber.

REINFORCEMENT: Four alternating layers of spiralled high tensile steel wire.

COVER:DIEHARD™ Black, oil and extra abrasion resistant synthetic rubber. Flame Resistant, Anti-Static (FRAS) & MSHA compliant. Highly visible layline branding for easy and permanent identification. No skiving required with T7000 Series Crimp Couplings.
Meets or Exceeds the Performance Requirements of:
ISO 18752-CC, SAE 100R15.

FEATURES: Ultra flexibility combined with a small bend radius reduces effort during assembly and installations. Tested to 1 million impulse cycles at up to 1/2 SAE 100R15 Minimum Bend Radius. Constant pressure 420 bar / 6100 psi in all sizes for easy system design and hose selection.

FRAS – FLAME RESISTANCE AND ANTI-STATIC:DIEHARD™ complies with Flame Resistant and Electrical Resistance (Anti-Static) requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B and 13A. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.

TEMPERATURE RANGE: -40°C to +121°C (-40°F to +250°F).

WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
