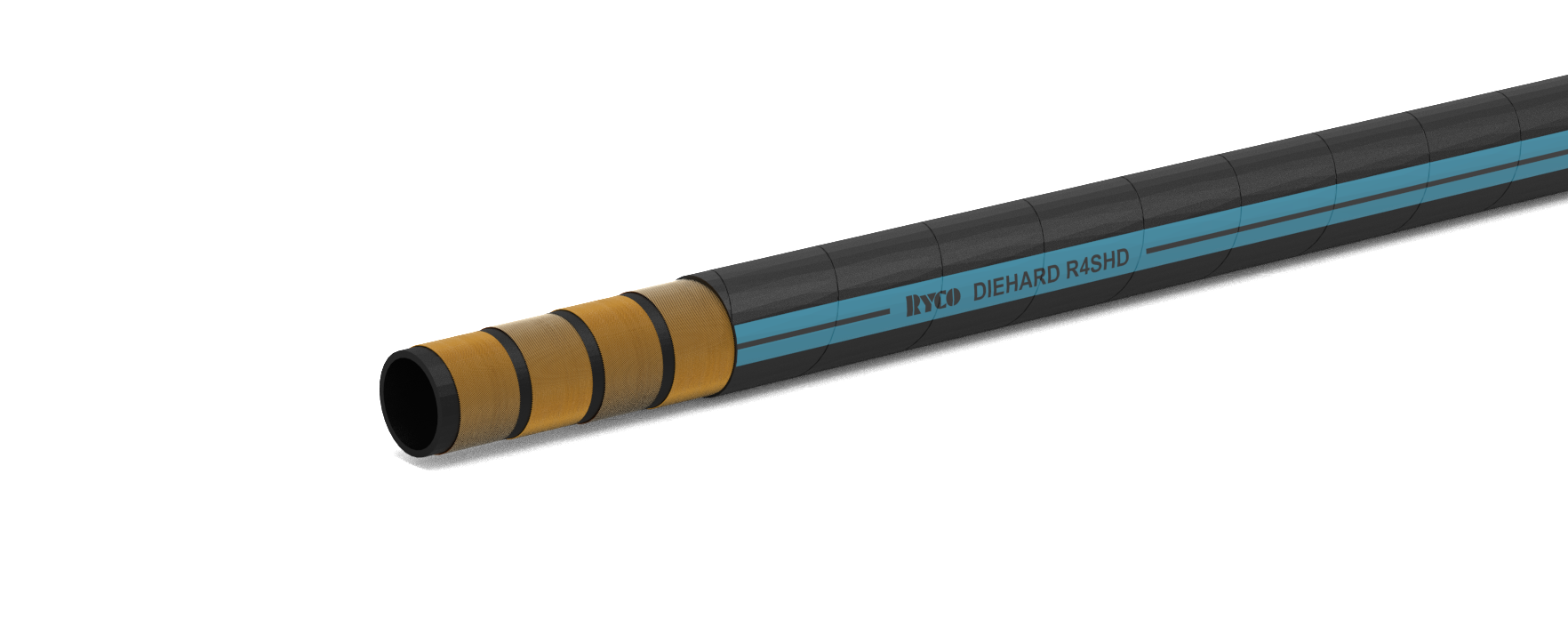

R4SHD – Four Wire Spiral 5100-6100 psi Hose DIEHARD™ Cover
Additional information
Technical Specifications:
Extra high pressure hydraulic oil lines.
TUBE: Black, oil resistant synthetic rubber.
REINFORCEMENT: Four alternating layers of spiralled high tensile steel wire.
COVER: DIEHARD™ Black, oil and extra abrasion resistant synthetic rubber. Flame Resistant, Anti-Static (FRAS) & MSHA compliant. Extra thin cover suitable for non-skive and skive couplings. Highly visible layline branding for easy and permanent identification. No skiving required with T6000 and T7000 Series Crimp Couplings.
Meets or Exceeds the Performance Requirements of:
EN 856 Type 4SH, ISO 3862 Type 4SH.
FRAS – FLAME RESISTANCE AND ANTI-STATIC: DIEHARD™ complies with Flame Resistant and Electrical Resistance (Anti-Static) requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B and 13A. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.
TEMPERATURE RANGE: From -40°C to +100°C (-40°F to +212°F).
WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
| R4SHD – DIEHARD SPIRAL HOSE | MATCHED COUPLINGS SERIES | |||
|---|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | FIELD ATT | |
| HOSE | DN | DASH | NON-SKIVE | |
| R4SH12D | 19 | -12 | T6000 | |
| R4SH16D | 25 | -16 | T7000 | |
| R4SH20D | 31 | -20 | T7000 | |
| R4SH24D | 38 | -24 | T7000 | |
