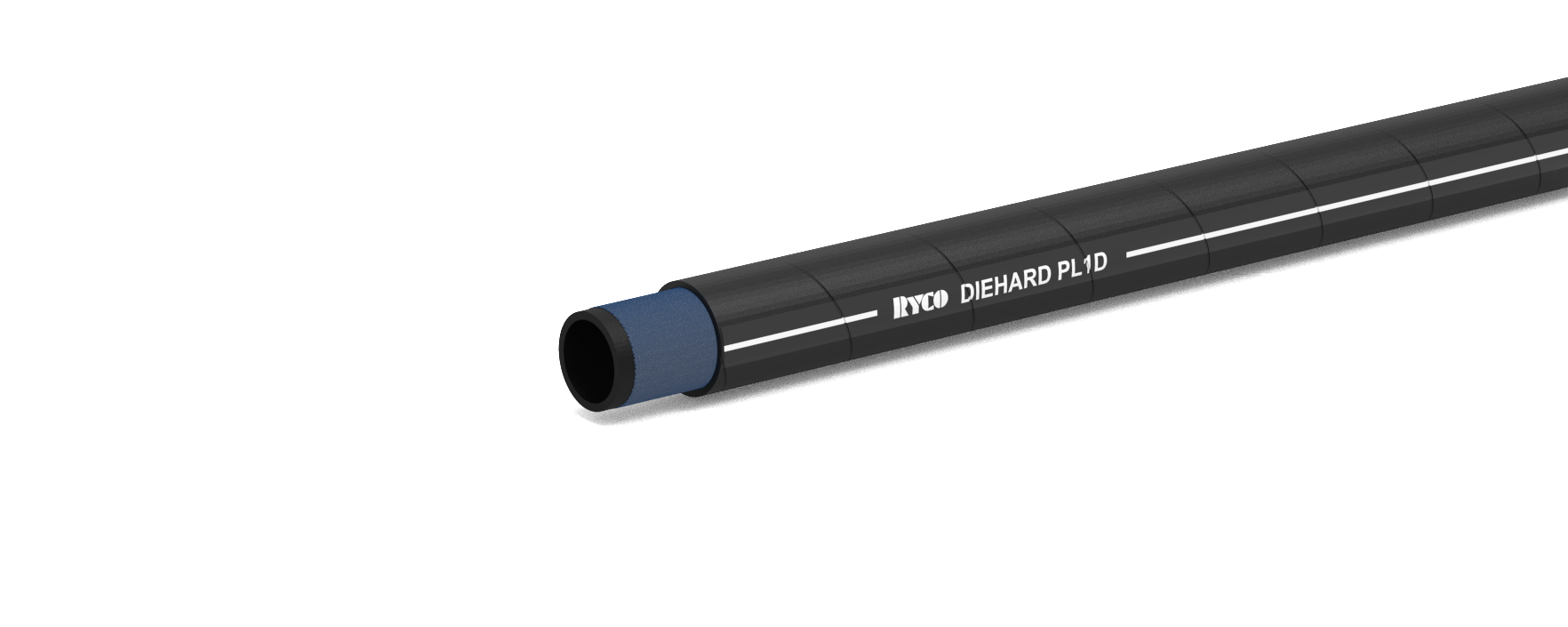

PL1D – One Textile Braid 320-435 psi Push On Hose DIEHARD™ Cover
Additional information
Technical Specifications:
Petroleum base hydraulic oils, glycol antifreeze solutions, water, diesel fuels, and air.
TUBE: Black, oil resistant synthetic rubber.
REINFORCEMENT: One textile braid.
COVER: DIEHARD™ Black, oil and extra abrasion resistant synthetic rubber. Flame Resistant, Anti-Static (FRAS) & MSHA compliant. No skiving required with T4000 Series Crimp Couplings.
FRAS – FLAME RESISTANCE AND ANTI-STATIC: DIEHARD™ FRAS textile braided hose meets or exceeds the Flame Resistance of U.S.A. MSHA Code of Federal Regulations Title 30 Part 18 Section 18.65 and the Anti-Static requirements of MDG 41, AS1180-13A and ISO 8031 having a resistance of less than 1MΩ per metre.
TEMPERATURE RANGE: From -40°C to +100°C (-40°F to +212°F).
WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure). PL1D Hose, and 8000 Series Push-On Fittings, are recommended for use in systems with Static Working Pressures (constant loads without pressure spikes) only. They are not recommended for vibration or pressure surge applications. PL1D Hose should not be used at both maximum working pressure and maximum temperature simultaneously.
| PL1 D PUSH ON HOSE | MATCHED COUPLINGS SERIES | |||
|---|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | PUSH ON | |
| HOSE | DN | DASH | NON-SKIVE | |
| PL14D | 6 | -04 | T4000 | 8000 |
| PL15D | 8 | -05 | T4000 | 8000 |
| PL16D | 10 | -06 | T4000 | 8000 |
| PL18D | 12 | -08 | T4000 | 8000 |
| PL110D | 16 | -10 | T4000 | 8000 |
| PL112D | 19 | -12 | T4000 | 8000 |
