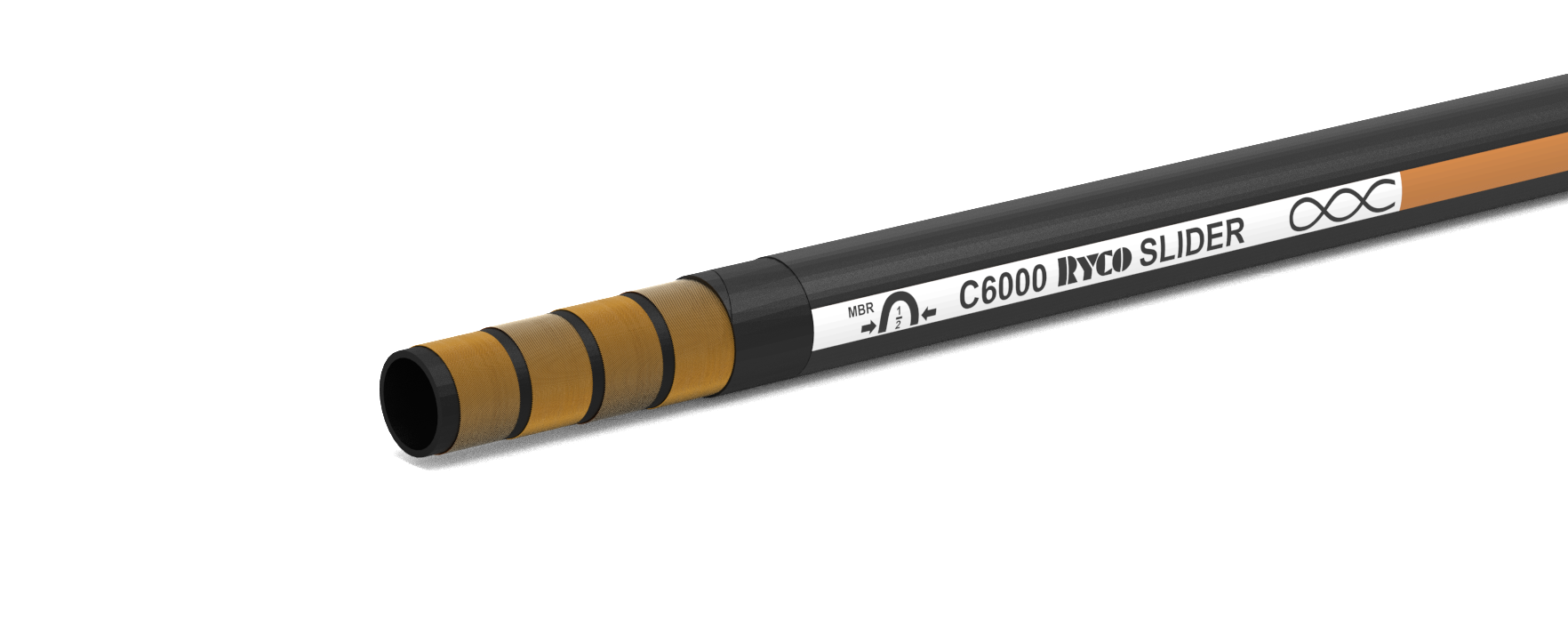

C6000S ISOBARIC – Four Wire Spiral 6100 psi Ultra Flexible Hose SLIDER Cover
Technical Specifications:
Ultra flexiblility and small bend radius provides easy installation in compact environments. Extremely high pressure hydraulic oil lines. Constant pressure (Isobaric) 420 bar / 6100 psi in all sizes.
TUBE: Black, oil resistant synthetic rubber.
REINFORCEMENT: Four alternating layers of spiralled high tensile steel wire.
COVER: SLIDER Black, oil and extremely abrasion resistant synthetic rubber sheathed with a layer of extremely abrasion resistant polyethylene. Flame Resistant, MSHA compliant. Highly visible layline branding for easy and permanent identification. No skiving required with T7000 Series Crimp Couplings.
Meets or Exceeds the Performance Requirements of:
ISO 18752-CC, SAE 100R15.
FEATURES: Ultra flexibility combined with a small bend radius reduces effort during assembly and installations. Tested to 1 million impulse cycles at up to 1/2 SAE 100R15 Minimum Bend Radius. Constant pressure 420 bar / 6100 psi in all sizes for easy system design and hose selection.
MSHA – FLAME RESISTANCE:SLIDER complies with Flame Resistant requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.
TEMPERATURE RANGE: -40°C to +121°C (-40°F to +250°F).
WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
C6012S 19-12T7000
C6000D – DIEHARD ULTRA FLEXIBLE ISOBARIC SPIRAL HOSE | MATCHED COUPLINGS SERIES | ||
---|---|---|---|
PART NO | HOSE SIZE | ONE PIECE | |
HOSE | DN | DASH | NON-SKIVE |
C6016S | 25 | -16 | T7000 |
