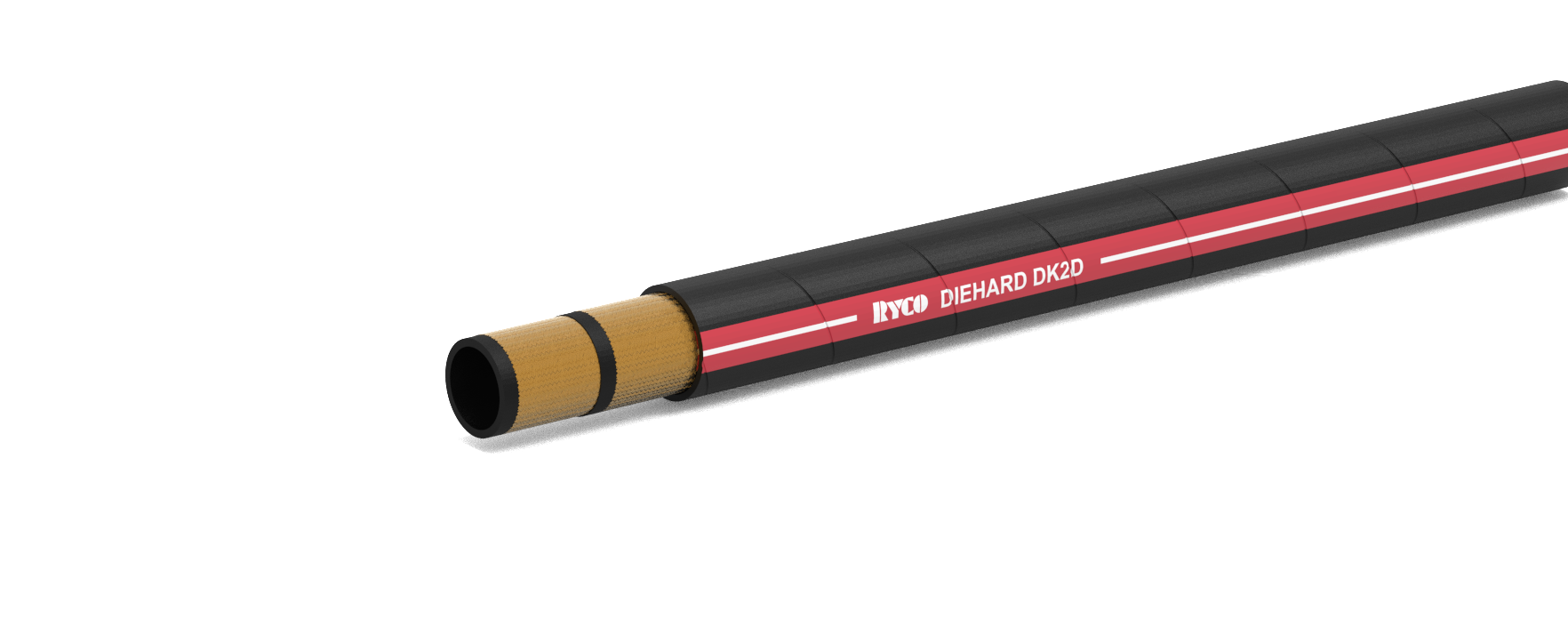

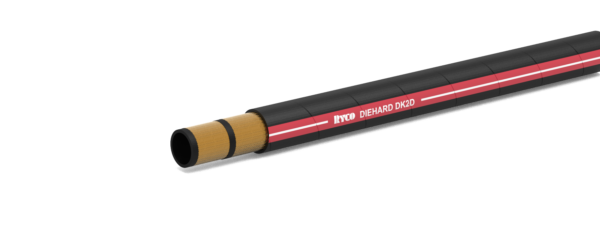

DK2D – Two Wire Braid 2540-6525 psi Compact Hose DIEHARD™ Cover

Additional information

Technical Specifications:

Extra high pressure hydraulic oil lines in applications where the hose cover is subjected to abrasion. Compact dimensions and small bend radius are advantages in installations where space is limited.

TUBE: Black, oil resistant synthetic rubber.

REINFORCEMENT: Two braids of high tensile steel wire.

COVER: DIEHARD™ Black, oil, ozone and extra abrasion resistant synthetic rubber. Flame Resistant, Anti-Static (FRAS) & MSHA compliant. Highly visible layline branding for easy and permanent identification. No skiving required with T2000 Series Crimp Couplings.
Exceeds the Performance Requirements of:
EN 857 Type 2SC, ISO 6805 Type 1 & Type 2, ISO 6805 Type 4
(sizes -10 and above), ISO 11237 Type 2SC.

FEATURES: The very high abrasion resistant properties of the cover, combined with the extra high working pressures and excellent impulse life, results in increased service life and minimises equipment downtime.

Compact dimensions and small bend radius are advantages in installations where space is limited.

FRAS – FLAME RESISTANCE AND ANTI-STATIC: DIEHARD™ complies with Flame Resistant and Electrical Resistance (Anti-Static) requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B and 13A, and requirements of ISO 6805 when tested in accordance with ISO 8030 and ISO 8031.

Meets Flame Resistant Designation “U.S MSHA” of the US Department of Labour, Mine Safety and Health Administration.

TEMPERATURE RANGE: From -40°C to +100°C (-40°F to +212°F).

WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

DK2D – COMPACT EXTRA HIGH PRESSURE NON-SKIVE HOSE MATCHED COUPLINGS SERIES
PART NO HOSE SIZE ONE PIECE
HOSE DN DASH NON-SKIVE
DK24D 6 -04 T2000
DK25D 8 -05 T2000
DK26D 10 -06 T2000
DK28D 12 -08 T2000
DK210D 16 -10 T2000
DK212D 19 -12 T2000
DK216D 25 -16 T2000
DK220D 31 -20 T2000
