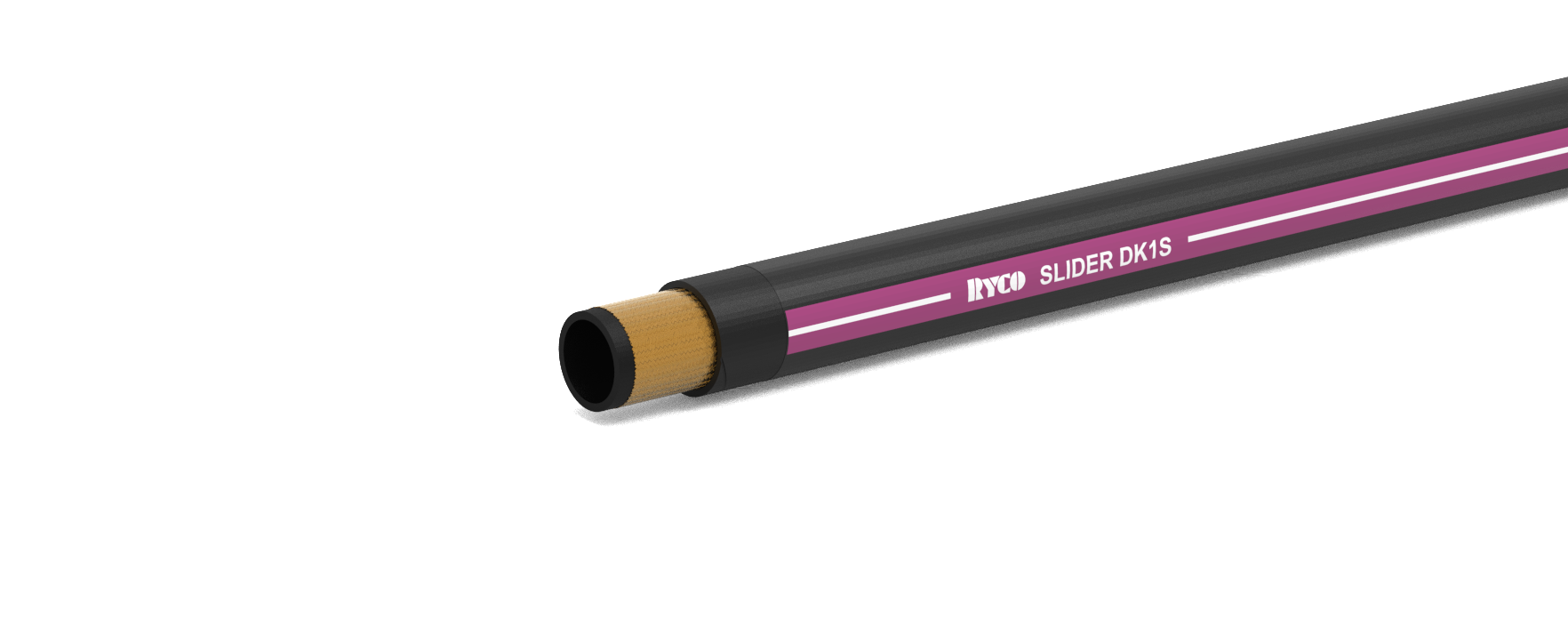

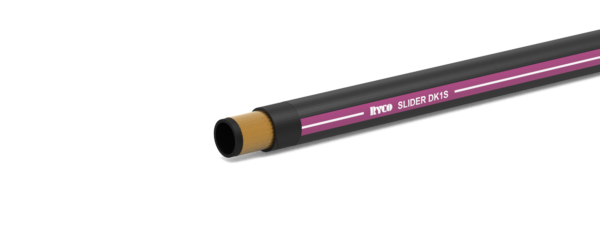

DK1S – One Wire Braid 1450-4280 psi Compact Hose SLIDER Cover

Additional information

Technical Specifications:

Extra high pressure hydraulic oil lines in applications where the hose cover is subjected to abrasion. Compact dimensions and small bend radius are advantages in installations where space is limited.

TUBE: Black, oil resistant synthetic rubber.

REINFORCEMENT: One braid of high tensile steel wire.

COVER: SLIDER Black, oil and extremely abrasion resistant synthetic rubber sheathed with a layer of extremely abrasion resistant polyethylene. Flame Resistant, MSHA compliant. Highly visible layline branding for easy and permanent identification. No skiving required with T2000 Series Crimp Couplings.
Exceeds the Performance Requirements of:
EN 857 Type 1SC, ISO 11237 Type 1SC.

FEATURES: The extremely abrasion resistant properties of the cover, combined with the extra high working pressures and excellent impulse life, results in increased service life and minimises equipment downtime.

Compact dimensions and small bend radius are advantages in installations where space is limited.

MSHA – FLAME RESISTANCE: SLIDER meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.

TEMPERATURE RANGE: From -40°C to +100°C (-40°F to +212°F).

WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

DK1S – SLIDER EXTRA HIGH PRESSURE NON-SKIVE HOSE MATCHED COUPLINGS SERIES
PART NO HOSE SIZE ONE PIECE
HOSE DN DASH NON-SKIVE
DK14S 6 -04 T2000
DK15S 8 -05 T2000
DK16S 10 -06 T2000
DK18S 12 -08 T2000
DK110S 16 -10 T2000
DK112S 19 -12 T2000
DK116S 25 -16 T2000
DK120S 31 -20 T2000
