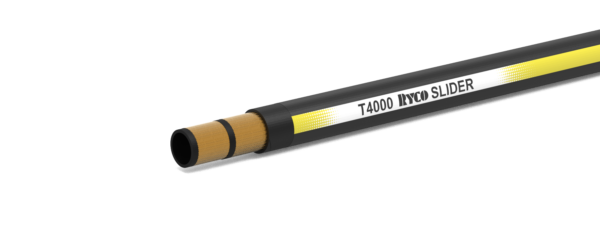

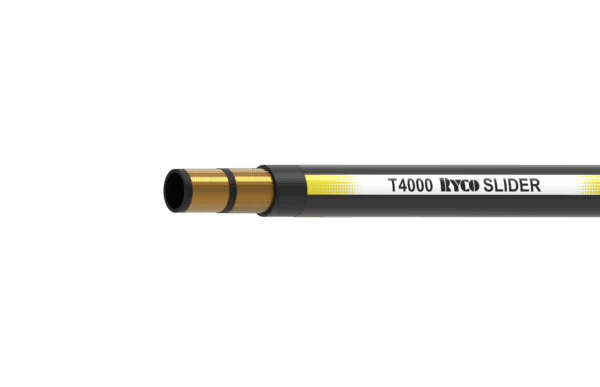

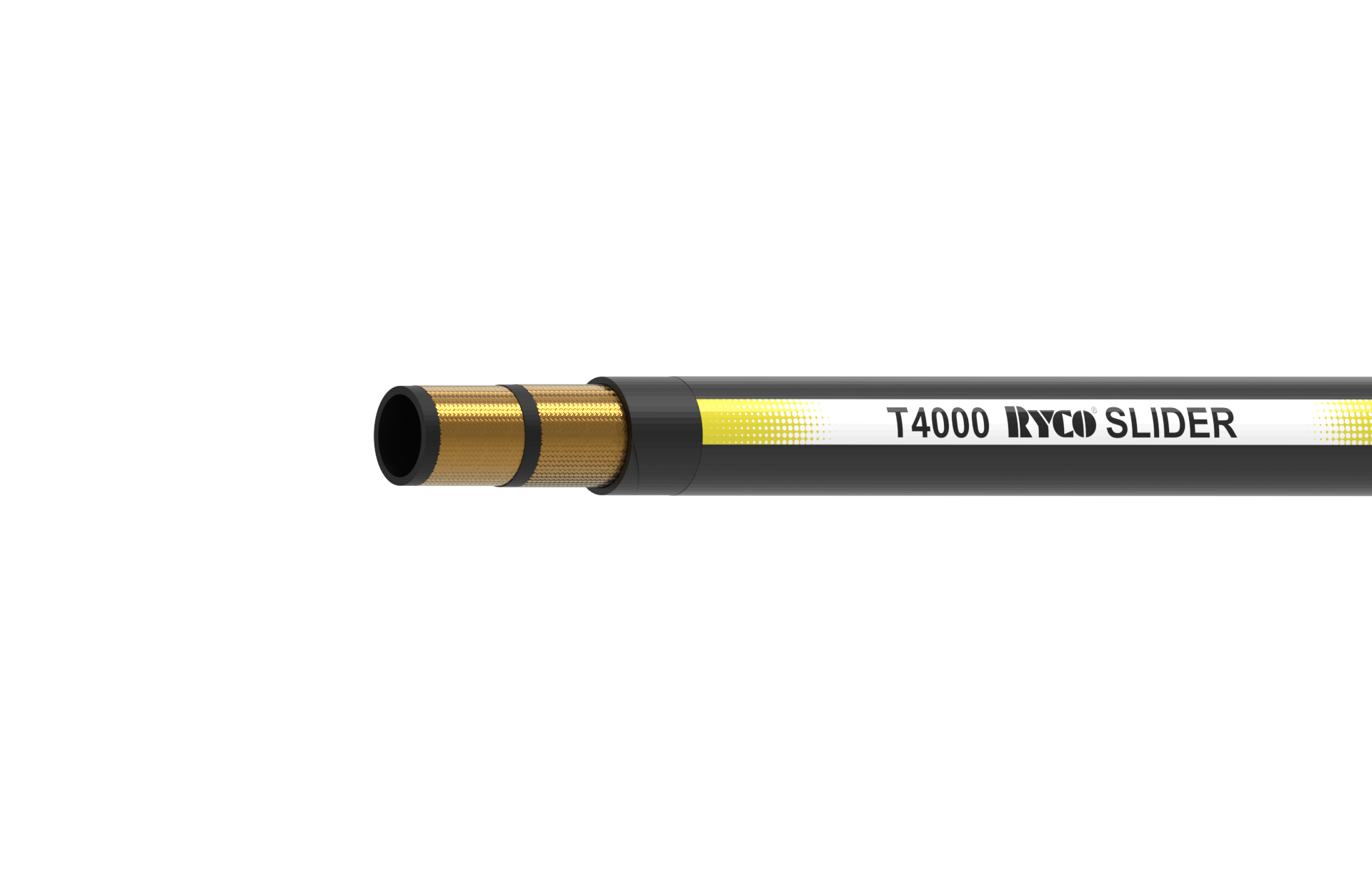

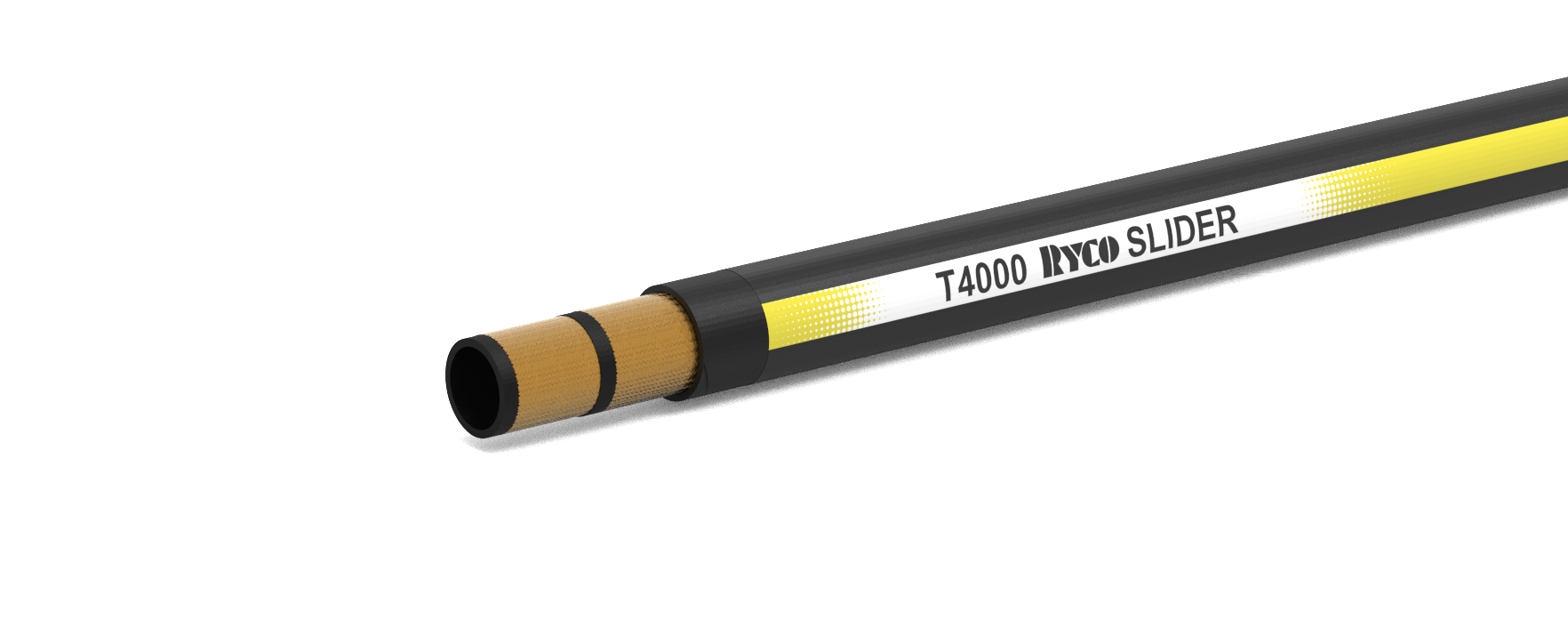

T4000S ISOBARIC – One-Two Wire Braid 4100 psi Compact Hose SLIDER Cover
Additional information
Technical Specifications:
High pressure hydraulic oil lines. Constant pressure (Isobaric) 280 bar / 4100 psi in all sizes. Small bend radius and compact dimensions are advantages in installations.
TUBE: Black, oil resistant synthetic rubber.
REINFORCEMENT: One braid (-04 size) or two braids (-05 to -12 size) of high tensile wire.
COVER: SLIDER Black, oil and extremely abrasion resistant synthetic rubber sheathed with a layer of extremely abrasion resistant polyethylene. Flame Resistant, MSHA compliant. Highly visible layline branding for easy and permanent identification.
Meets or Exceeds the Performance Requirements of:
ISO 18752-BC, SAE 100R19.
FEATURES: Constant pressure 280 bar / 4100 psi in all sizes for easy system design and hose selection. Small bend radius and compact dimensions are advantages in installations.
MSHA – FLAME RESISTANCE: SLIDER complies with Flame Resistant requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.
TEMPERATURE RANGE: -40°C to +100°C (-40°F to +212°F).
WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
| T4000S – SLIDER COMPACT ISOBARIC HOSE | MATCHED COUPLINGS SERIES | ||
|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | |
| HOSE | DN | DASH | NON-SKIVE |
| T4004S | 6 | -04 | T2000 |
| T4005S | 8 | -05 | T2000 |
| T4006S | 10 | -06 | T2000 |
| T4008S | 12 | -08 | T2000 |
| T4010S | 16 | -10 | T2000 |
| T4012S | 19 | -12 | T2000 |
