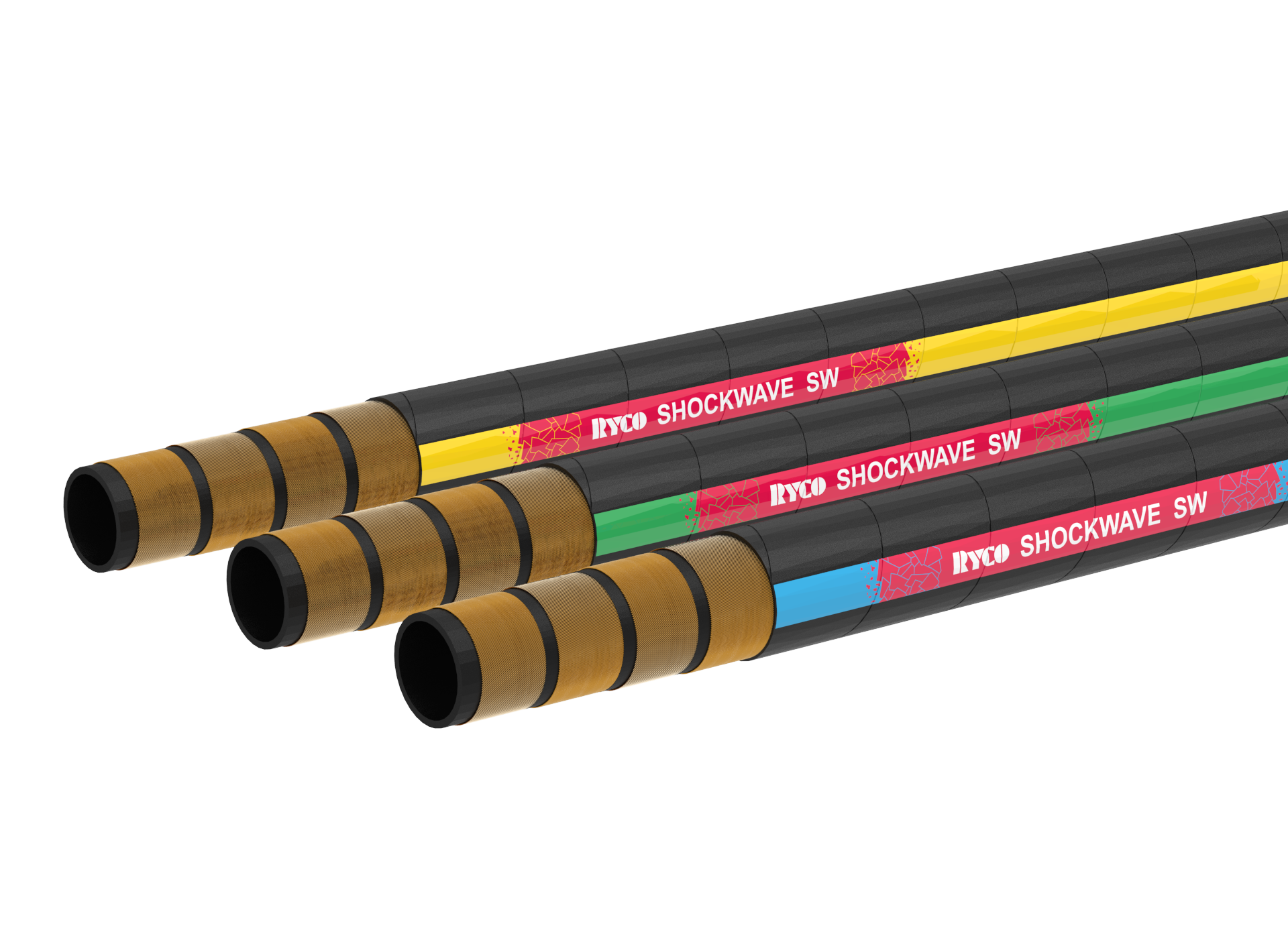

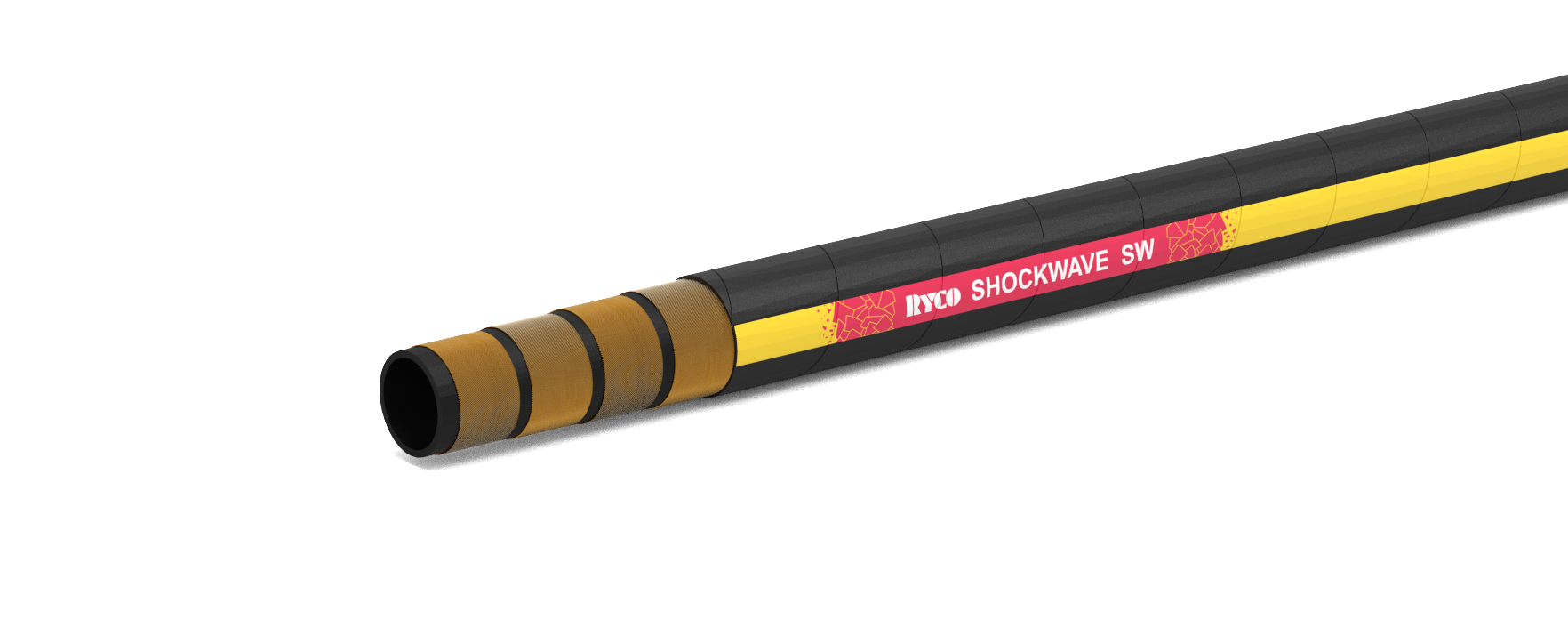

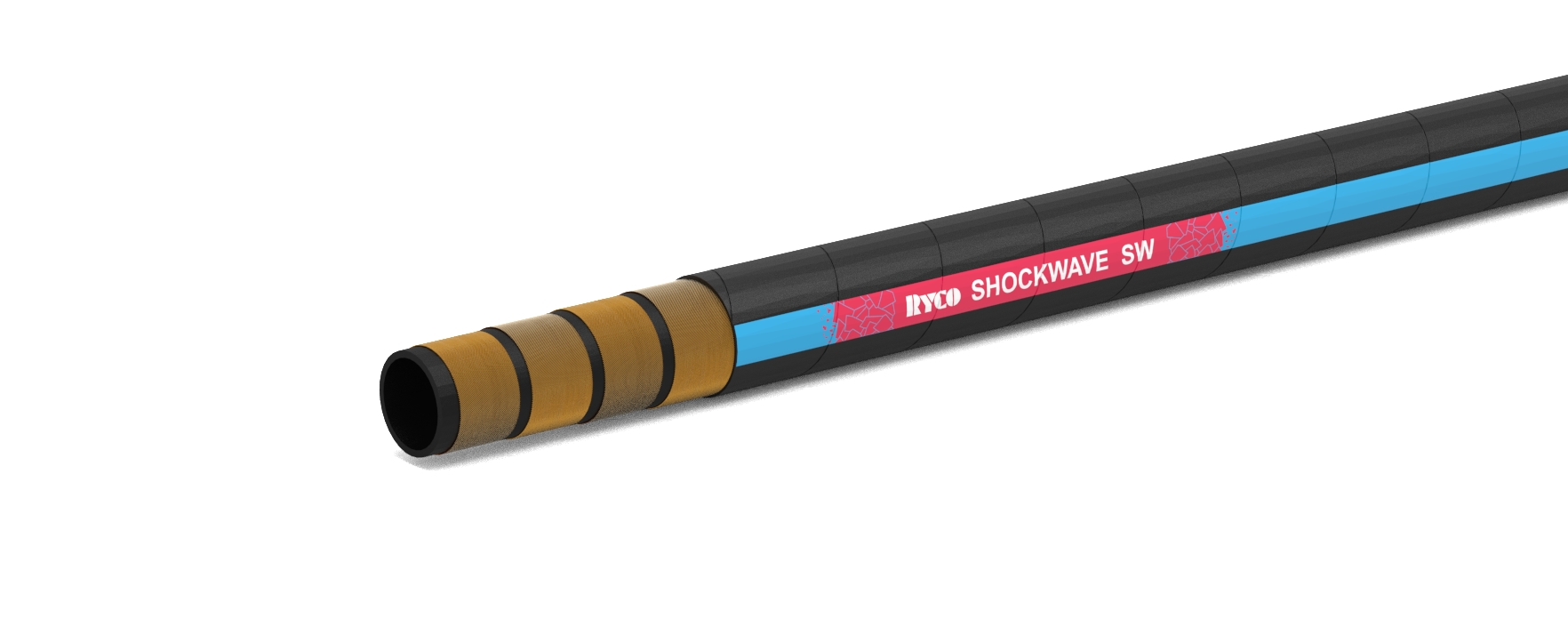

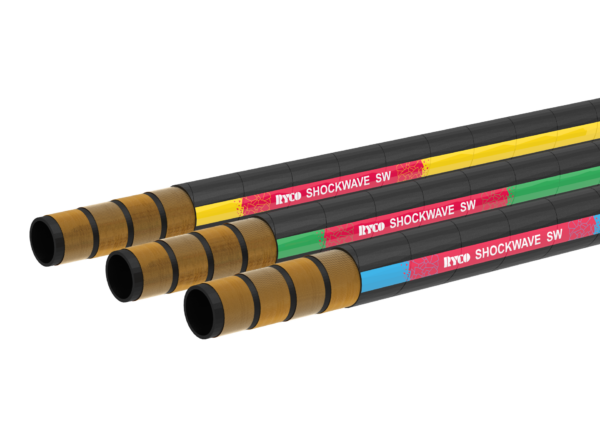

SW SHOCKWAVE – Four Wire Spiral 10000-18125 psi Waterblast Hose

Additional information

Technical Specifications:

Very High Pressure waterblast hose for the cleaning and preparation of marine surfaces, runway and swimming pool cleaning, and paint removal.
DO NOT USE with Steam.

TUBE: Oil and water resistant synthetic rubber.

REINFORCEMENT: Four alternating layers of spiralled high tensile steel wire.

COVER: Oil, water and ozone resistant synthetic rubber. The cover is formulated to resist marking. Internal and External skiving required with TW4000 Series Interlok Crimp Couplings.

FEATURES: Exceeds ISO 7751 performance requirements. Meets specifications EN 1829-2 (impulse) and AS/NZS 4233.2. Highly abrasion resistant cover.

TEMPERATURE RANGE: Continuous service from -20°C to +80°C (-4°F to +176°F). Intermittent service to +100°C (+212°F).

WORKING PRESSURE: Maximum working pressures are based on 2.5:1 safety factor (maximum working pressure to minimum burst pressure).

SW SHOCKWAVE – VERY HIGH PRESSURE HOSE MATCHED COUPLINGS SERIES
COLOUR CODE PART NO HOSE SIZE ONE PIECE
HOSE DN DASH NON-SKIVE
SW18006 10 -06 TW4000
SW16008 12 -08 TW4000
SW14512 16 -10 TW4000
SW10012 19 -12 TW4000
SW10016 25 -16 TW4000

WJTA-IMCA colour code recommendations:

20K Pressure Range
15K Pressure Range
10K Pressure Range
