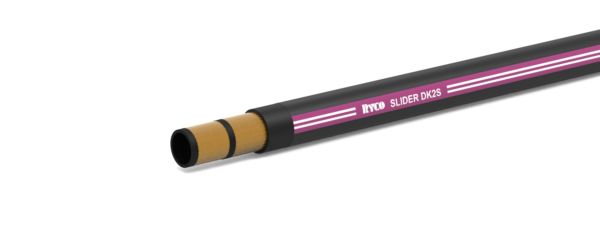

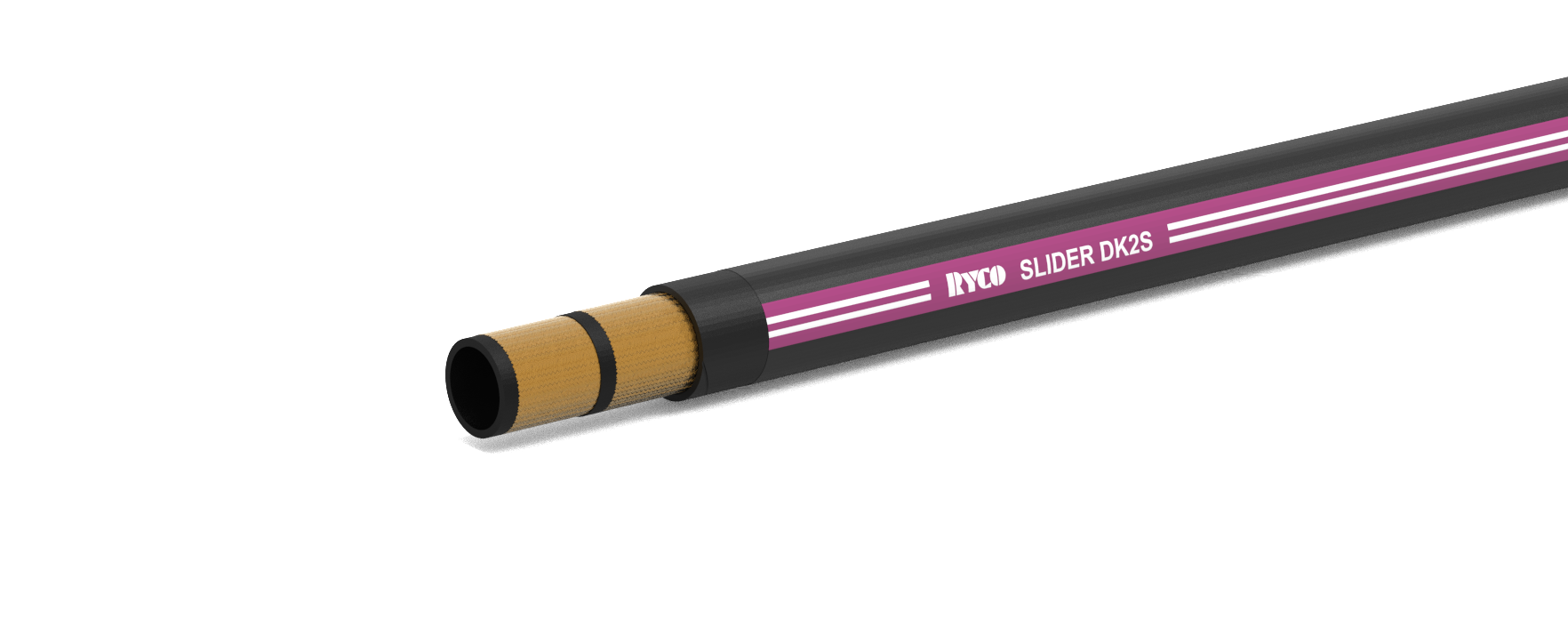

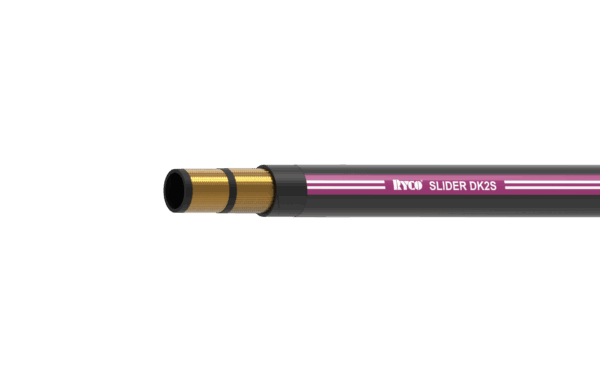

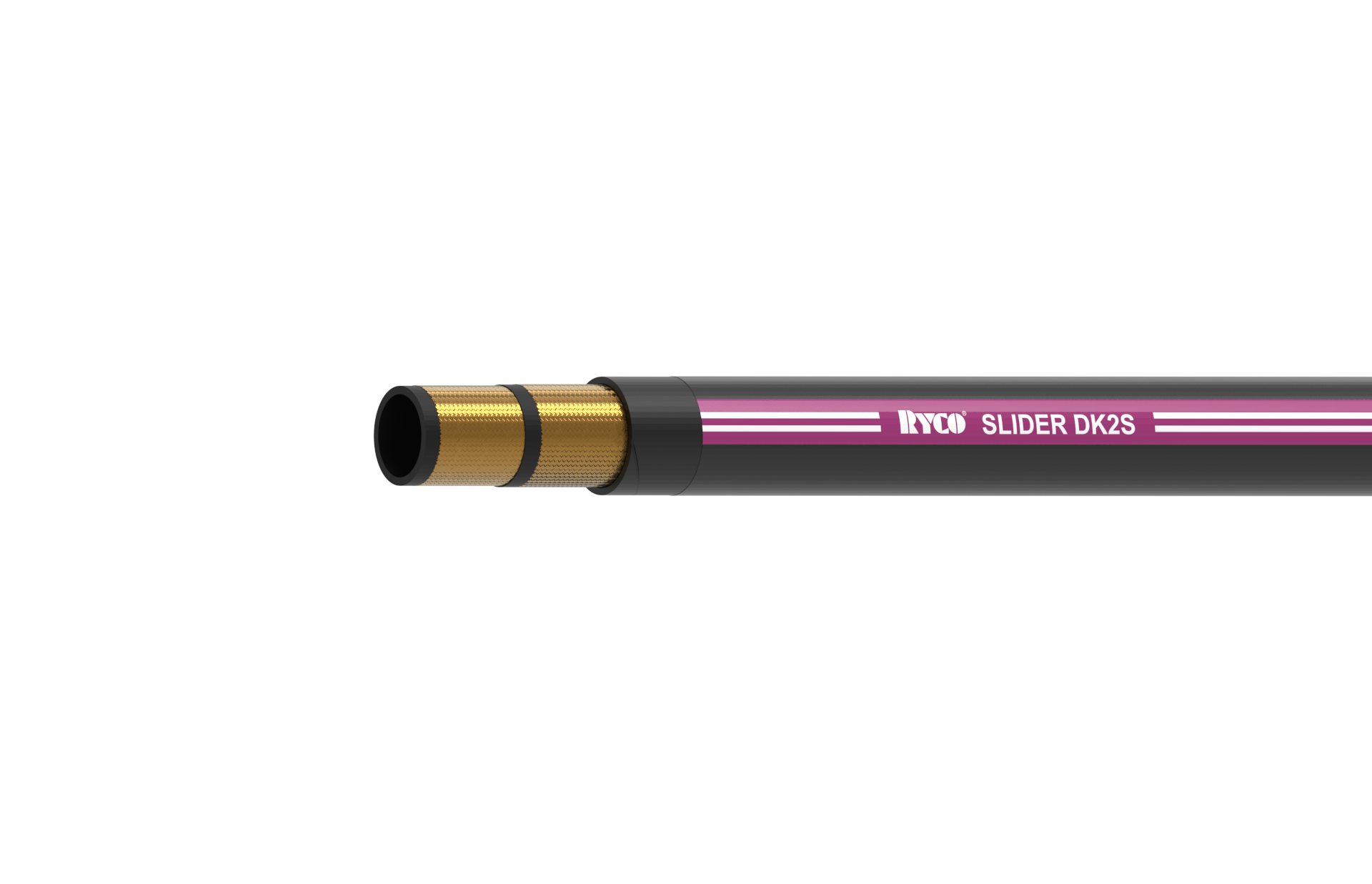

DK2S – Two Wire Braid 2540-6525 psi Compact Hose SLIDER Cover

Technical Specifications:

Extra high pressure hydraulic oil lines in applications where the hose cover is subjected to abrasion. Compact dimensions and small bend radius are advantages in installations where space is limited.

TUBE: Black, oil resistant synthetic rubber.

REINFORCEMENT: Two braids of high tensile steel wire.

COVER: SLIDER Black, oil and extremely abrasion resistant synthetic rubber sheathed with a layer of extremely abrasion resistant polyethylene. Flame Resistant, MSHA compliant. Highly visible layline branding for easy and permanent identification. No skiving required with T2000 Series Crimp Couplings.
Exceeds the Performance Requirements of:
EN 857 Type 2SC, ISO 6805 Type 1 & Type 2, ISO 6805 Type 4
(sizes -10 and above), ISO 11237 Type 2SC.

FEATURES: The extremely abrasion resistant properties of the cover, combined with the extra high working pressures and excellent impulse life, results in increased service life and minimises equipment downtime.

Compact dimensions and small bend radius are advantages in installations where space is limited.

MSHA – FLAME RESISTANCE: SLIDER complies with Flame Resistant requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.

TEMPERATURE RANGE: From -40°C to +100°C (-40°F to +212°F).

WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
