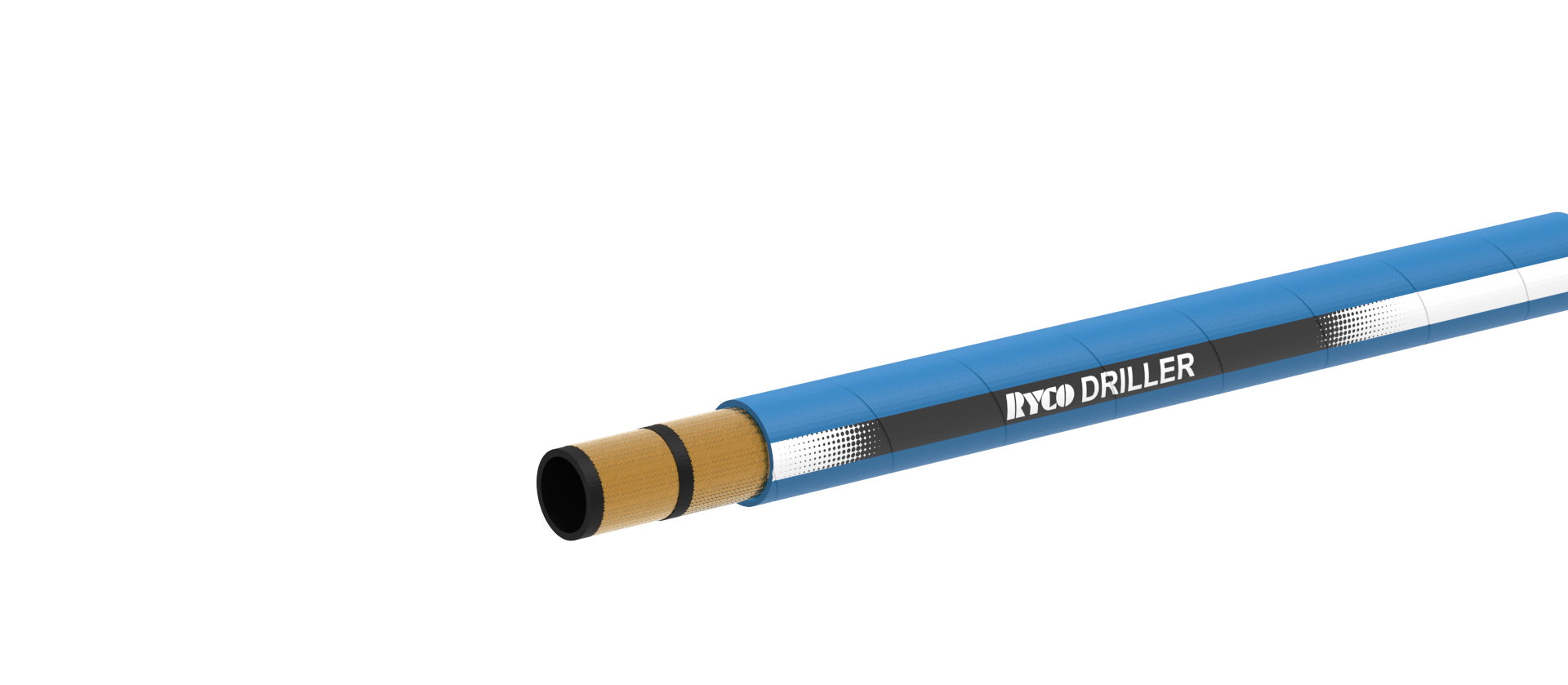

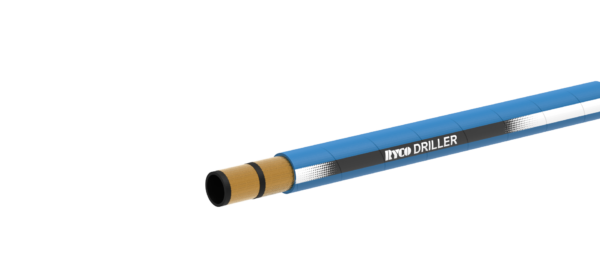

D2B DRILLER – Two Wire Braid 1300-2030 psi High Temperature Drill Rig Hose
Additional information
Technical Specifications:
Hydraulic oil or air lines. Drill rigs – high pressure, large bore air hose.
TUBE: Black, oil resistant synthetic rubber specifically compounded for temperature resistance.
REINFORCEMENT: Two braids of high tensile steel wire.
COVER: Perforated blue, oil and abrasion resistant synthetic rubber. No skiving required with T2000 & T7000 Series Crimp Couplings.
MSHA – FLAME RESISTANCE: Complies with Flame Resistant requirements of Australian Standard AS 2660 and Method of Test AS 1180.10B. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.
TEMPERATURE RANGE:
Air: -40°C to +121°C (-40°F to +250°F)
Oil: -40°C to +135°C (-40°F to +275°F)
WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
| D2B – DRILLER HOSE | MATCHED COUPLINGS SERIES | |||
|---|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | ||
| HOSE | DN | DASH | NON-SKIVE | |
| D220B | 31 | -20 | T2000 | |
| D224B | 38 | -24 | T2000 | T7000 |
| D232B | 51 | -32 | T2000 | T7000 |
