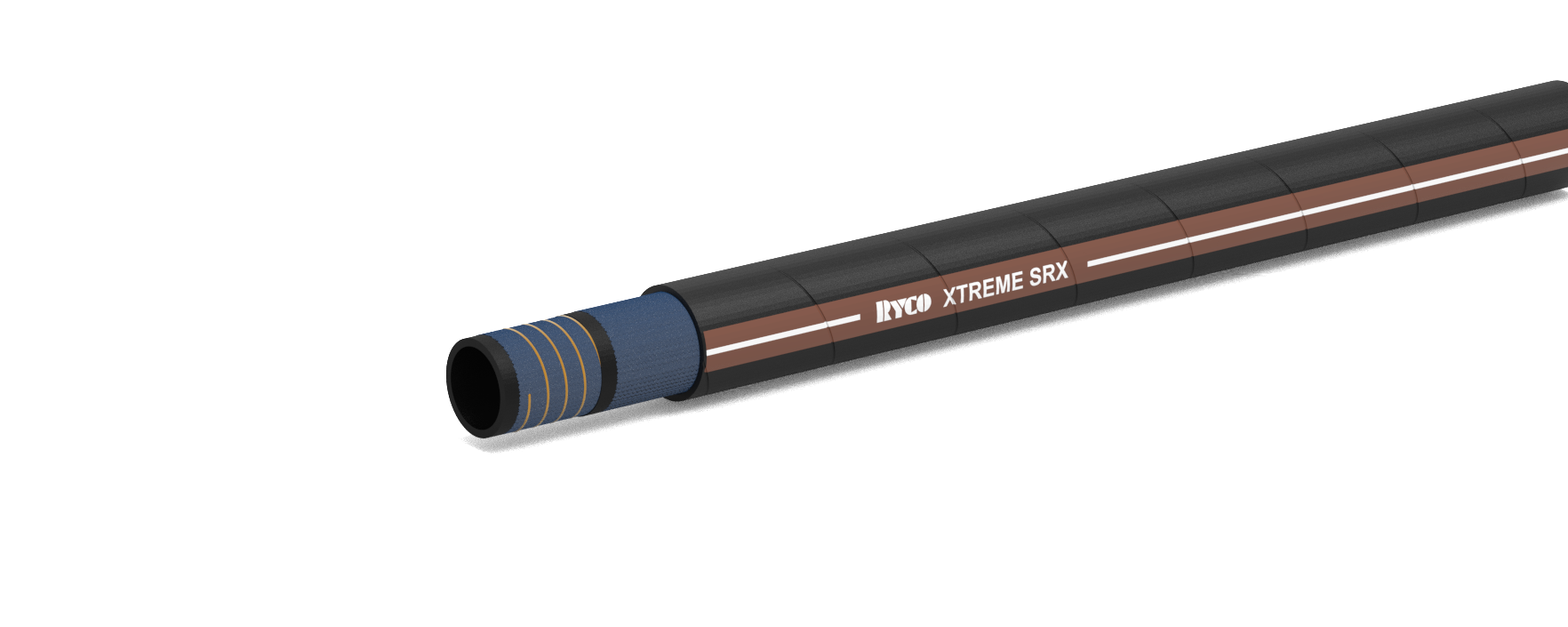

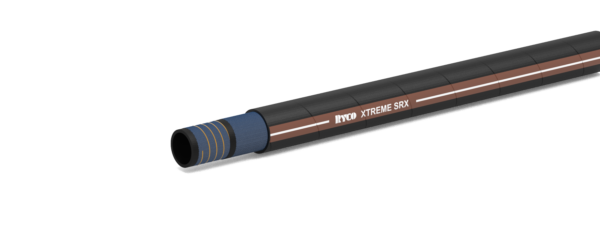

SRX XTREME – Extreme Flexibility Compact Suction & Return Hose

Additional information

Technical Specifications:

Petroleum and water base hydraulic fluids in suction lines or in low pressure return lines. Extreme Flexibility is an advantage in installations where space is minimal. (Tighter Bend Radius than SAE 100R4)

TUBE: Black, oil resistant synthetic rubber.

REINFORCEMENT: Textile reinforcement with spiral wire to prevent collapsing.

COVER: Black, oil resistant and abrasion resistant synthetic rubber.

TEMPERATURE RANGE: From -40°C to +100°C (-40°F to +212°F)

WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

SRX– XTREME SUCTION AND RETURN HOSE MATCHED COUPLINGS SERIES
PART NO HOSE SIZE ONE PIECE
HOSE DN DASH NON-SKIVE
SRX12 19 -12 T4000
SRX16 25 -16 T4000
SRX20 31 -20 T4000
SRX24 38 -24 T4000
SRX32 51 -32 T4000
SRX40 63 -40 T4000
SRX48 76 -48 T4000
