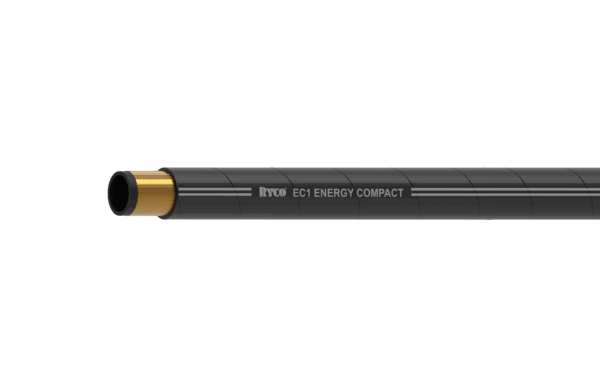

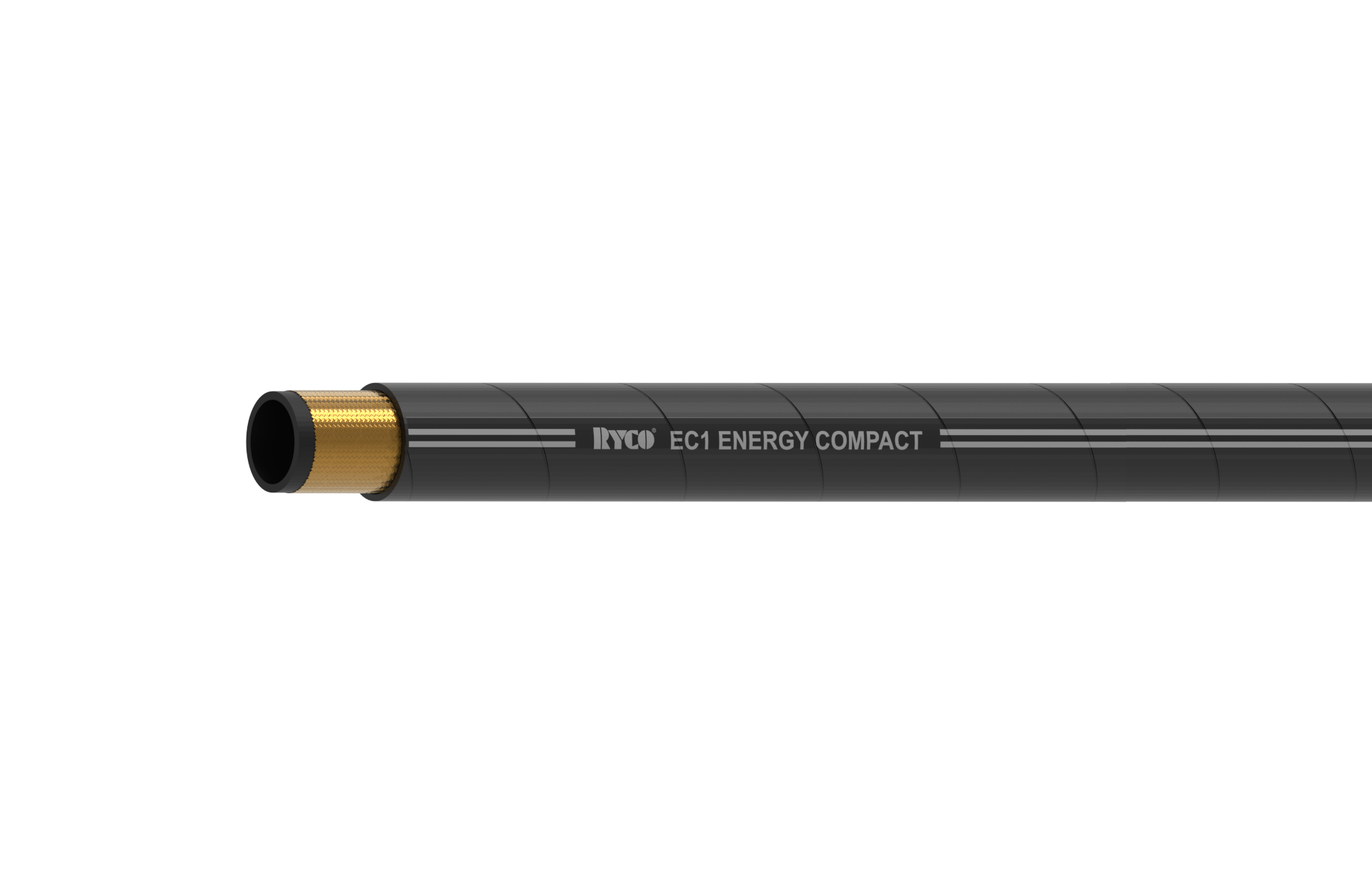

EC1 – ENERGY Compact One Wire Braid Hose

RECOMMENDED FOR:
High pressure hydraulic oil lines. Ideal for high pressure use that requires a more compact outside diameter than someother one wire braid hoses.

PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
EN 857 Type 1SC, ISO 11237 Type 1SC.

TUBE:
Black, oil resistant synthetic rubber.

REINFORCEMENT:
One braid of high tensile steel wire.

COVER:
Black, oil resistant synthetic rubber. No skiving required with T2000 Series Crimp Couplings.

TEMPERATURE RANGE:
From -40°C to +100°C (-40°F to +212°F).

WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series (sizes -04 to -16).
