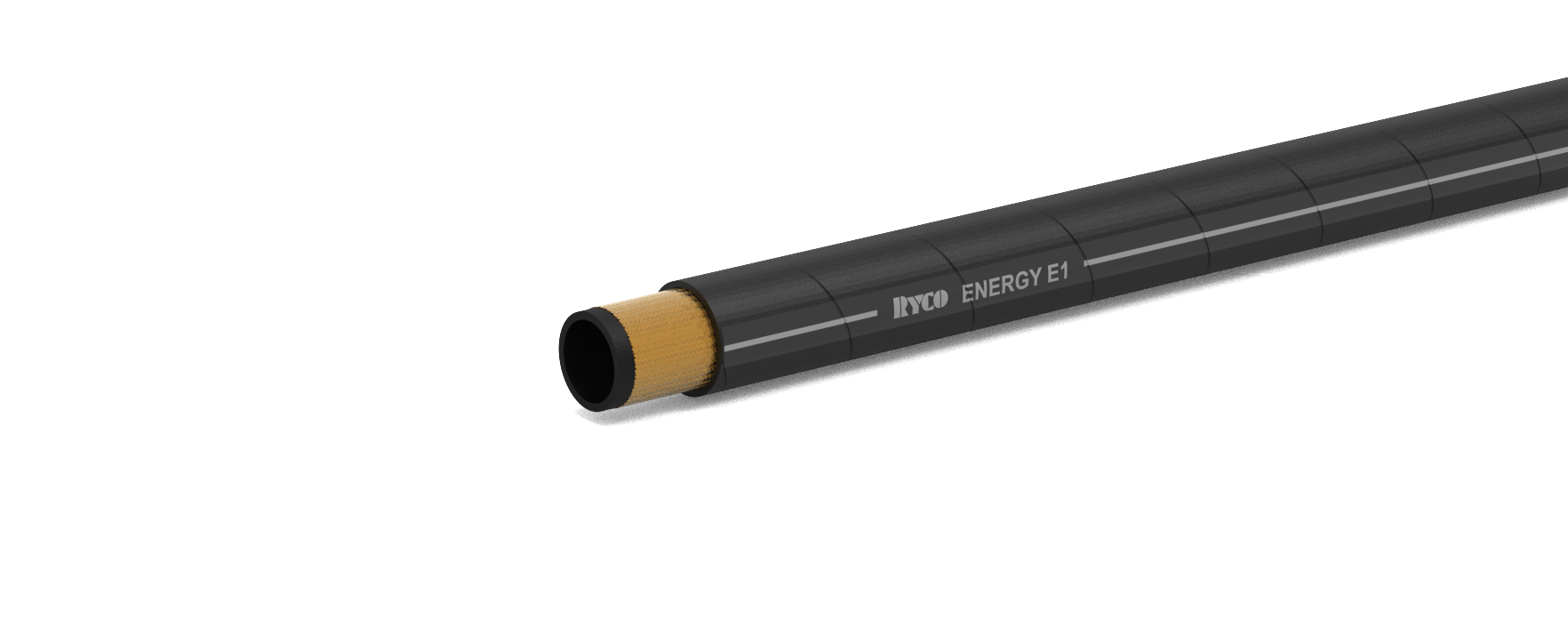

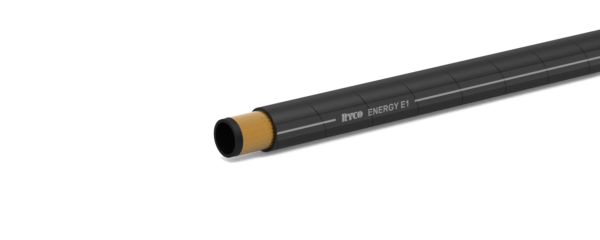

E1 – One Wire Braid 1280-3625 psi Hose ENERGY Cover

Additional information

Technical Specifications:

High pressure hydraulic oil lines.

TUBE: Black, oil resistant synthetic rubber.

REINFORCEMENT: One braid of high tensile steel wire.

COVER: Black, oil resistant synthetic rubber. No skiving required with T2000 Series Crimp Couplings and K000 Series Field Attachable Couplings.
Meets or Exceeds the Performance Requirements of:
AS 3791 100R1AT, DIN 20022-1SN, EN 853 Type 1SN,
ISO 1436 Types R1AT & 1SN, SAE 100R1AT.

TEMPERATURE RANGE: From -40°C to +100°C (-40°F to +212°F).

WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

E1 – ENERGY HOSE MATCHED COUPLINGS SERIES
PART NO HOSE SIZE ONE PIECE FIELD ATT
HOSE DN DASH NON-SKIVE
E13 5 03 T2000 6000 (K000)
E14 6 -04 T2000 6000 (K000)
E15 8 -05 T2000
E16 10 -06 T2000 6000 (K000)
E18 12 -08 T2000 6000 (K000)
E110 16 -10 T2000 6000 (K000)
E112 19 -12 T2000 6000 (K000)
E116 25 -16 T2000 6000 (K000)
