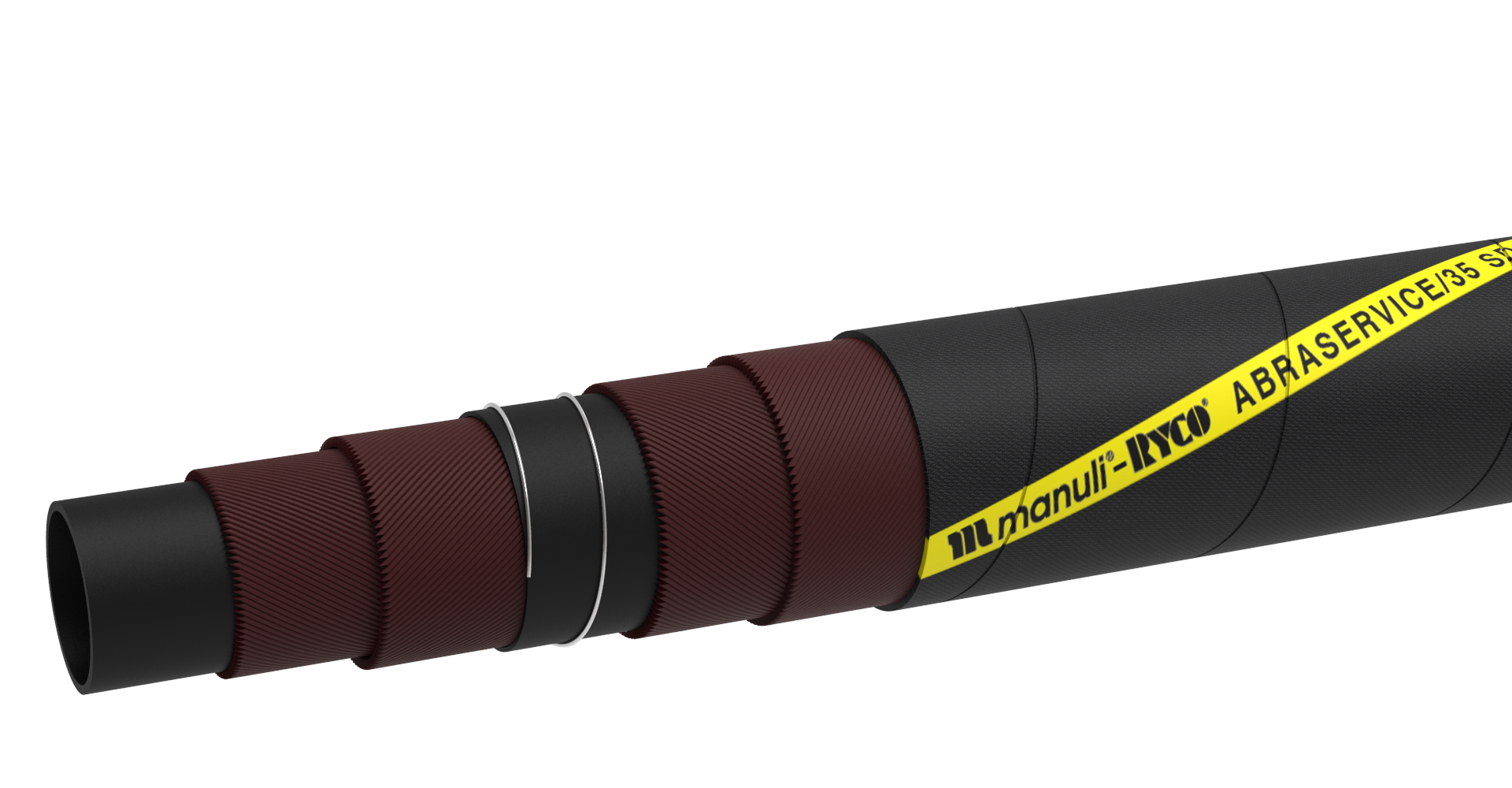

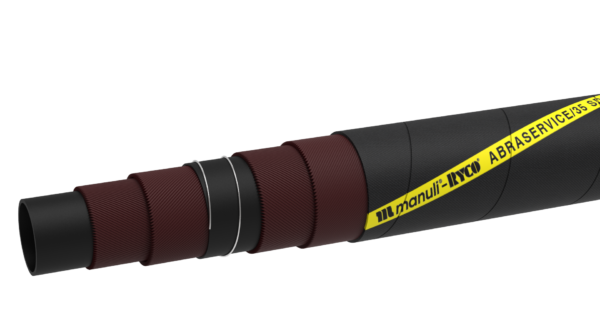

ABRASERVICE/35 SD

Additional information

Technical Specifications:

Suction and delivery hose for drilling slurry with stones and mixed materials. Use for reverse cycle drilling operations.

WORKING PRESSURE: 35 bar / 508 psi.

TUBE: Black, NR/SBR rubber; anti-static; abrasion resistant thick tube.

REINFORCEMENT: High-tensile synthetic cord with steel helix body wire.

COVER: Black NR/SBR rubber; anti-static, abrasion resistant. Mylar layline for positive, permanent identification.

FEATURES: Hardwall suction and delivery structure; Highly robust hose structure; Long lasting in severe applications; High abrasion resistant tube compound.

Long length assemblies available – Max. length: 61m

TEMPERATURE RANGE: From -40°C to +80°C (-40°F to +176°F).

ABRASERVICE/35 SD MATCH COUPLING SERIES
PART NO HOSE SIZE TWO-PIECE
HOSE DN DASH SKIVE
H80018063 63 -40 SR+D08000 SERIES
H80018076 76 -48 SR+D08000 SERIES
H80018102 102 -64 SR+D08000 SERIES
