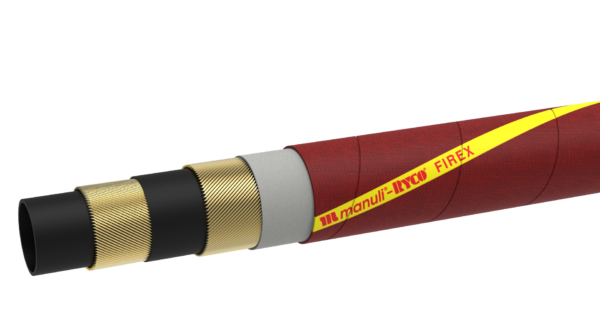

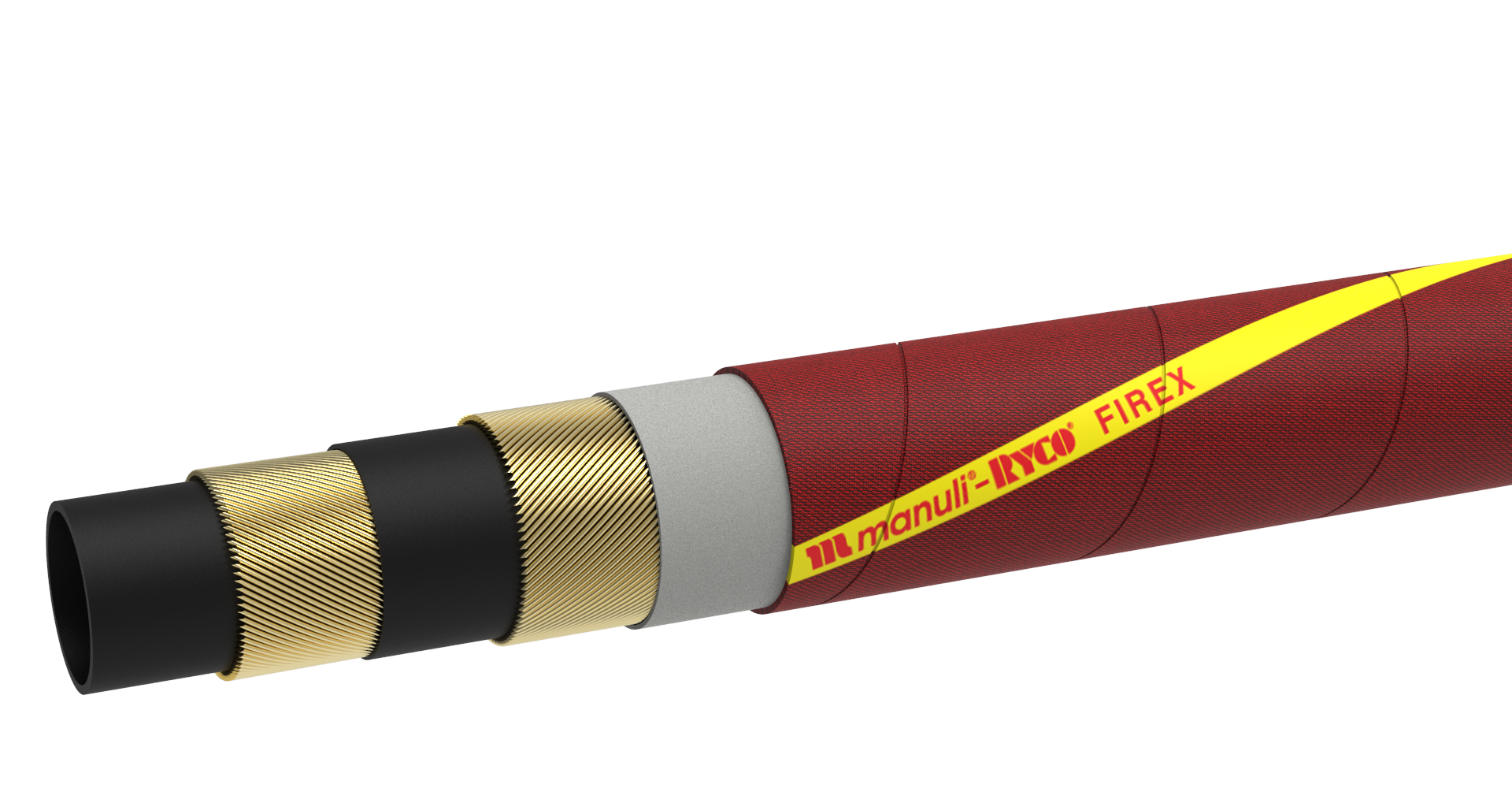

FIREX
Additional information
Technical Specifications:
Fire suppression delivery hose for fire-water deluge hose applications on oil rigs. ABS approved for offshore applications.
WORKING PRESSURE: 20 bar / 300 psi.
TUBE: Black, CR rubber.
REINFORCEMENT: High-tensile steel spirals.
COVER: Glass-fibre layers, co-vulcanized with an external layer of red CR rubber; fire, sea-water, abrasion and ozone resistant (black cover available on request)
FEATURES: Hardwall delivery structure; Robust hose structure for longer life in severe applications.
Long length assemblies available – Max. length: 61m
APPLICABLE SPECS: EN 15540:1999 (800°C x 30’) / ABS approval (required)
TEMPERATURE RANGE: From -40°C to +100°C (-40°F to +212°F).
| FIREX | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | DASH | SKIVE |
| H80016051 | 51 | -32 | MARKET FITTING |
| H80016076 | 76 | -48 | MARKET FITTING |
| H80016102 | 102 | -64 | MARKET FITTING |
| H80016127 | 127 | -80 | MARKET FITTING |
| H80016152 | 152 | -96 | MARKET FITTING |
