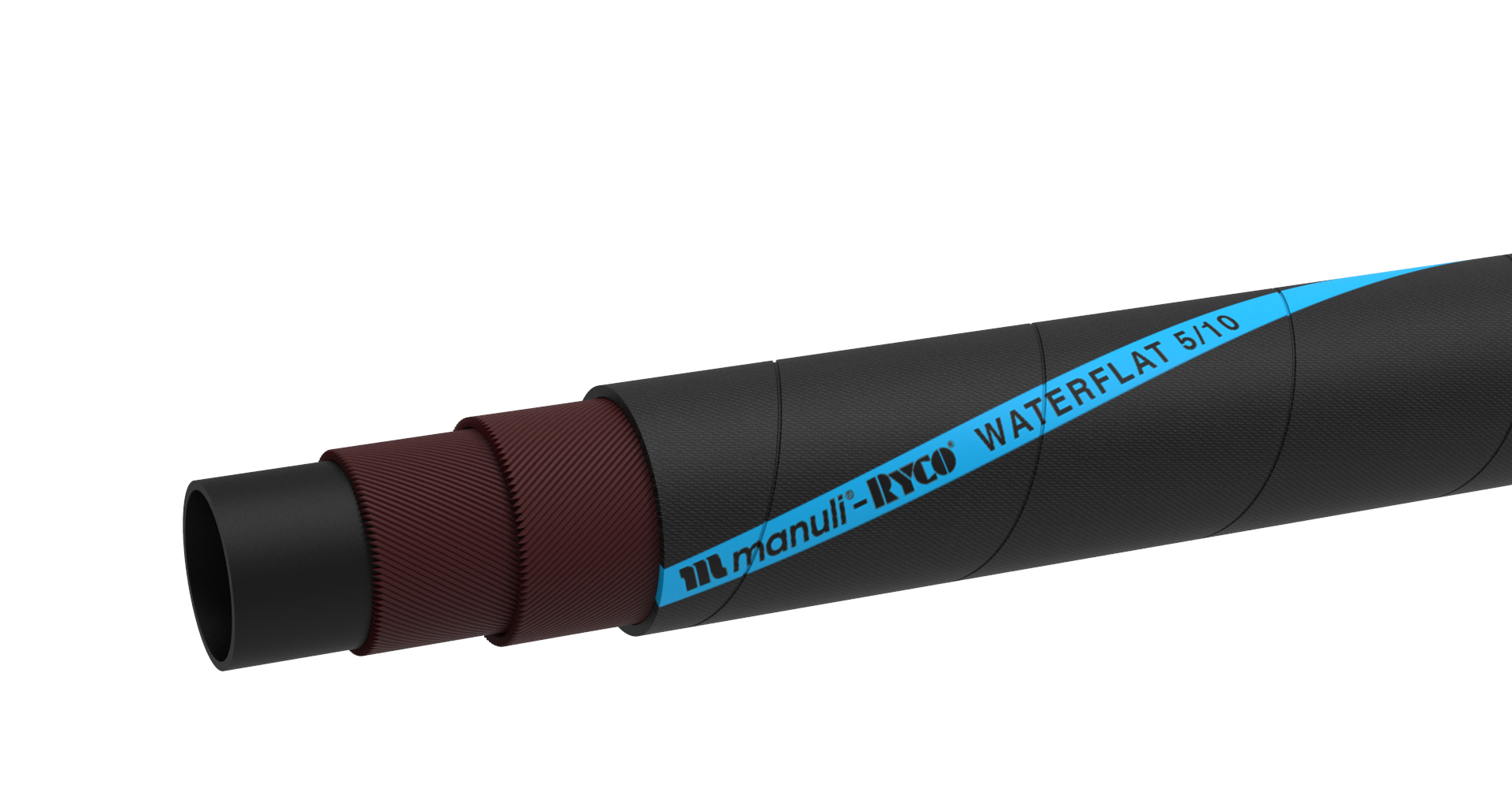

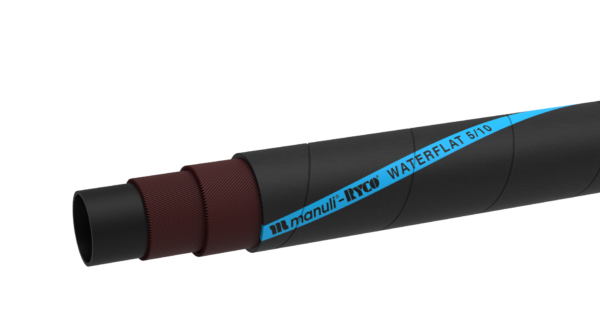

WATERFLAT 5/10

Additional information

Technical Specifications:

Layflat hose for general purpose water delivery. Use with water, liquid fertilizer and non-corrosive inert fluids for irrigation. Suitable for submersible pumps and general industrial applications

WORKING PRESSURE: 5 bar or 10 bar / 75 psi or 150 psi.

TUBE: Black, SBR rubber.

REINFORCEMENT: High-tensile synthetic cord.

COVER: Blue, synthetic SBR rubber. Long-lasting weathering and ozone resistant. Mylar layline for positive, permanent identification.

FEATURES: Layflat delivery structure; Compact, lightweight and flexible; Robust hose structure for longer life in severe applications.

Long length assemblies available – Max. length: 61m (DN 51 – DN 102); 30.5m (DN 152 – DN 203); 12m (DN 254 – DN 609)

TEMPERATURE RANGE: From -30°C to +80°C (-22°F to +176°F).

WATERFLAT 5/10 MATCH COUPLING SERIES
PART NO HOSE SIZE TWO-PIECE
HOSE DN DASH SKIVE
H80056051 51 -32 MARKET FITTING
H80056076 76 -48 MARKET FITTING
H80056102 102 -64 MARKET FITTING
H80056152 152 -96 MARKET FITTING
H80056203 203 -128 MARKET FITTING
H80056254 254 -160 MARKET FITTING
H80056305 305 -192 MARKET FITTING
H80056457 457 -288 MARKET FITTING
H80056609 609 -384 MARKET FITTING
