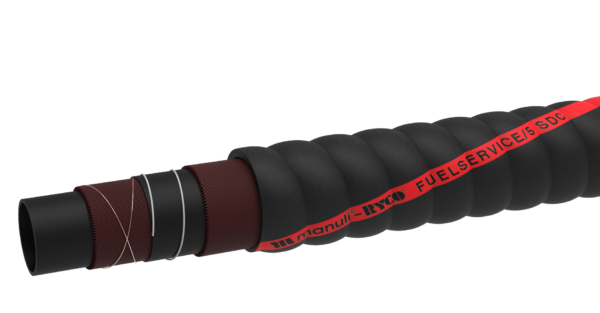

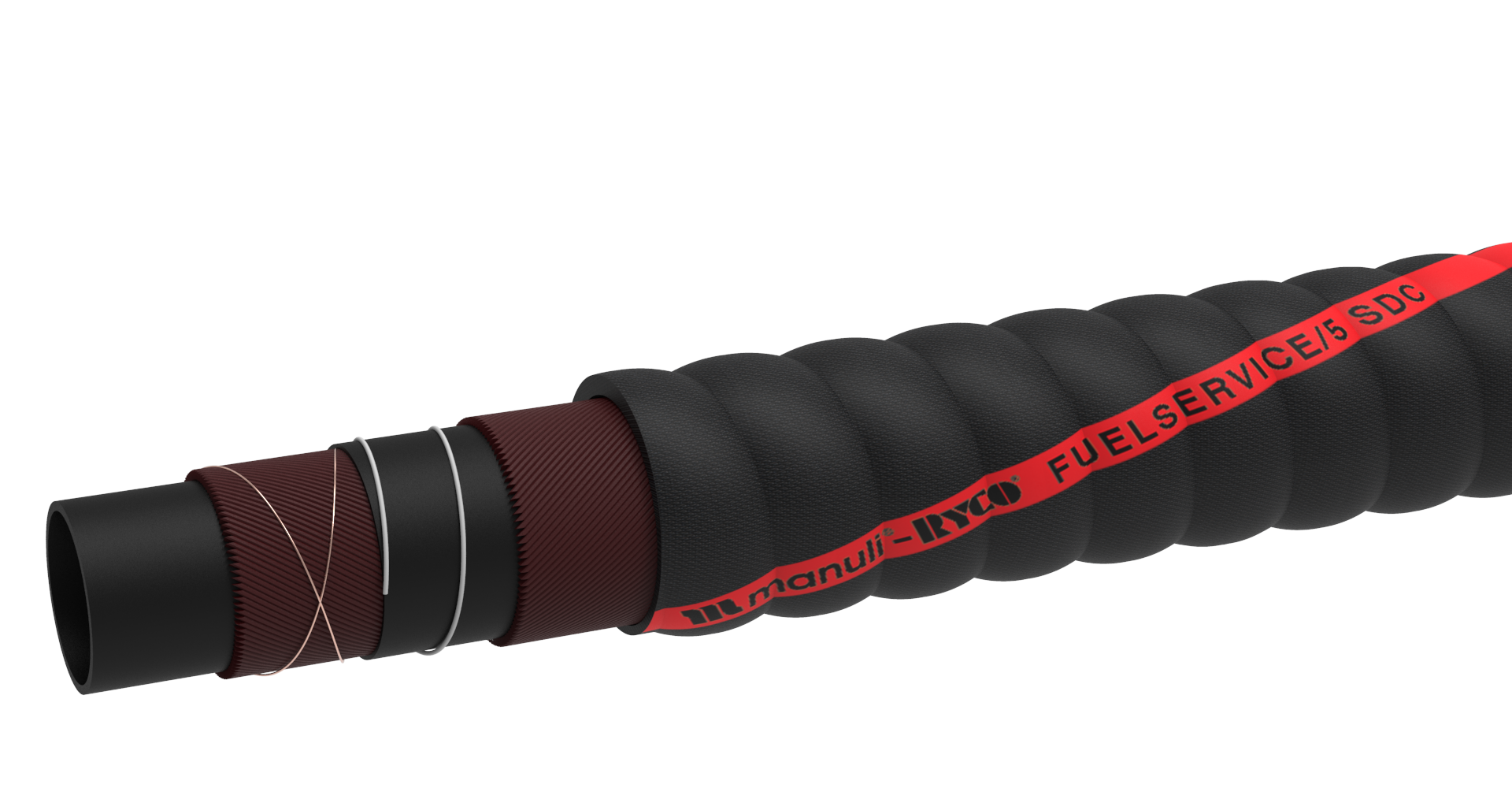

FUELSERVICE/5 SDC

Technical Specifications:

Highly flexible, anti-static, suction and delivery hose for fuels, oils, petroleum and its derivatives with aromatic content up to 50%.

WORKING PRESSURE: 5 bar / 75 psi.

TUBE: Black, NBR rubber.

REINFORCEMENT: High tensile synthetic cord and steel helix body wire and two crossing copper wires for grounding.

COVER: Black, synthetic CR rubber; convoluted cover style; anti-static (R<10⁶ Ohm/m); oil, fuel, abrasion and weathering resistant. Mylar layline for positive, permanent identification.

FEATURES: Hardwall suction and delivery structure; Convoluted cover provides extreme flexibility and very low bend radius; Highly robust hose structure; Long lasting in severe applications.

Long length assemblies available – Max. length: 61m

TEMPERATURE RANGE: From -30°C to +100°C (-22°F to +212°F).
