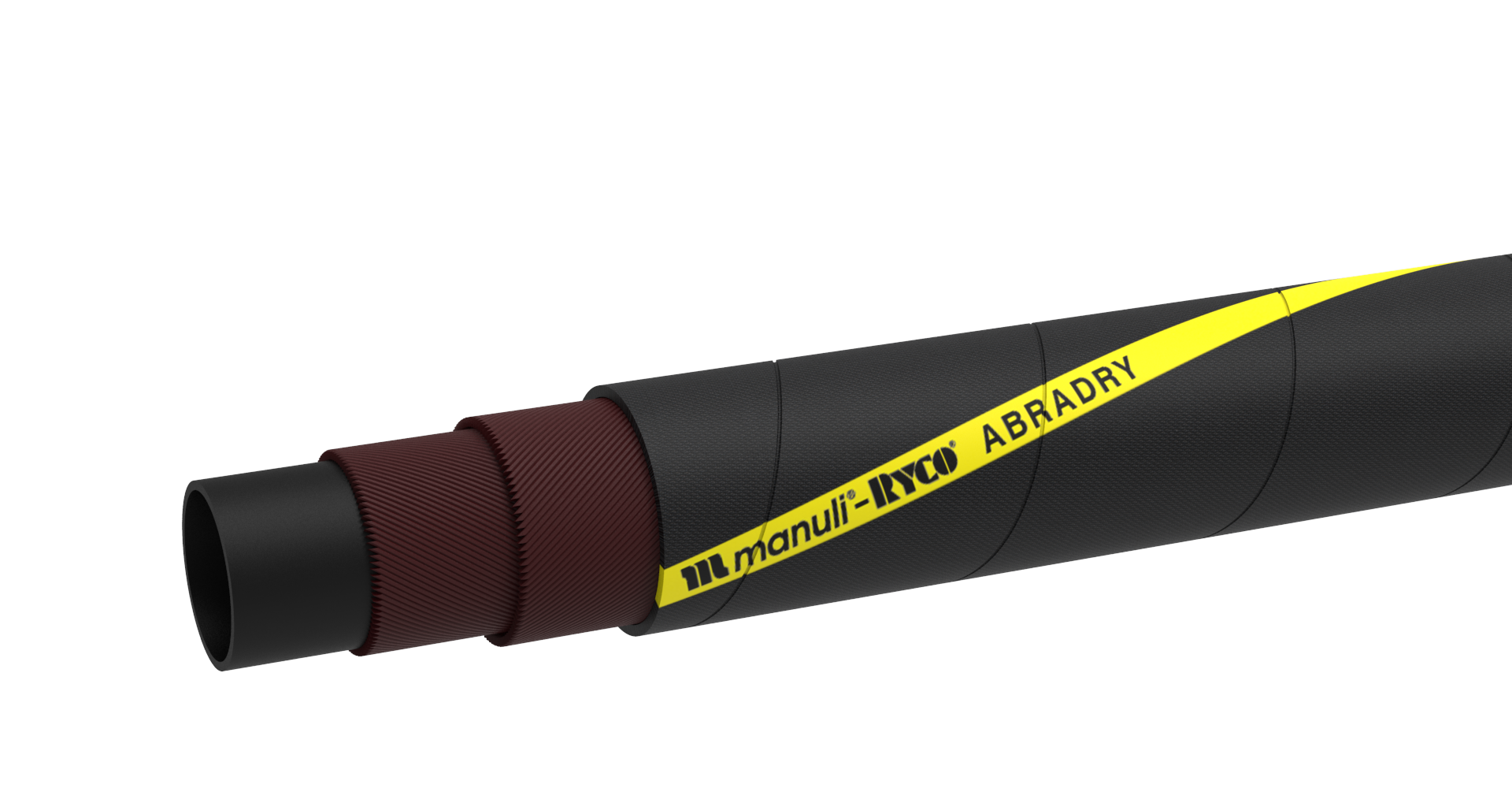

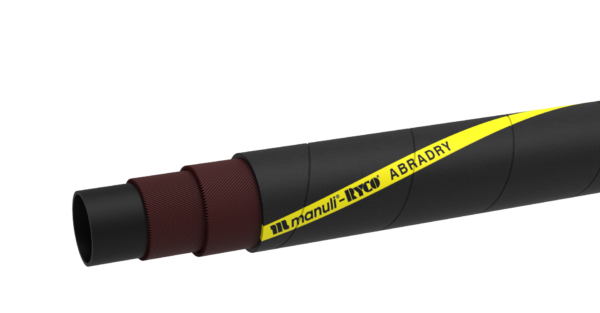

ABRADRY

Additional information

Technical Specifications:

Layflat delivery hose for dry and abrasive materials. Use for concrete, sand, gravel etc.

WORKING PRESSURE: 4 bar or 6 bar / 60 psi or 90 psi.

TUBE: Black NR/SBR rubber.

REINFORCEMENT: High tensile synthetic cord.

COVER: Black, synthetic SBR/NR/PVC rubber; antistatic; abrasion and weathering resistant. Mylar layline for positive, permanent identification.

FEATURES: Layflat delivery structure; Compact, lightweight and flexible; Highly robust hose structure; Long lasting in severe applications.

Long length assemblies available – Max. length: 61m (up to DN 102); 30.5m (DN 127 – DN 203).

APPLICABLE SPECS: DIN 53516 70 ±5mm3.

TEMPERATURE RANGE: From -40°C to +70°C (-40°F to +158°F).

ABRADRY MATCH COUPLING SERIES
PART NO HOSE SIZE TWO-PIECE
HOSE DN DASH SKIVE
H80051090 90 -56 MARKET FITTINGS
H80051102 102 -64 MARKET FITTINGS
H80051127 127 -80 MARKET FITTINGS
H80051152 152 -96 MARKET FITTINGS
H80051203 203 -128 MARKET FITTINGS
