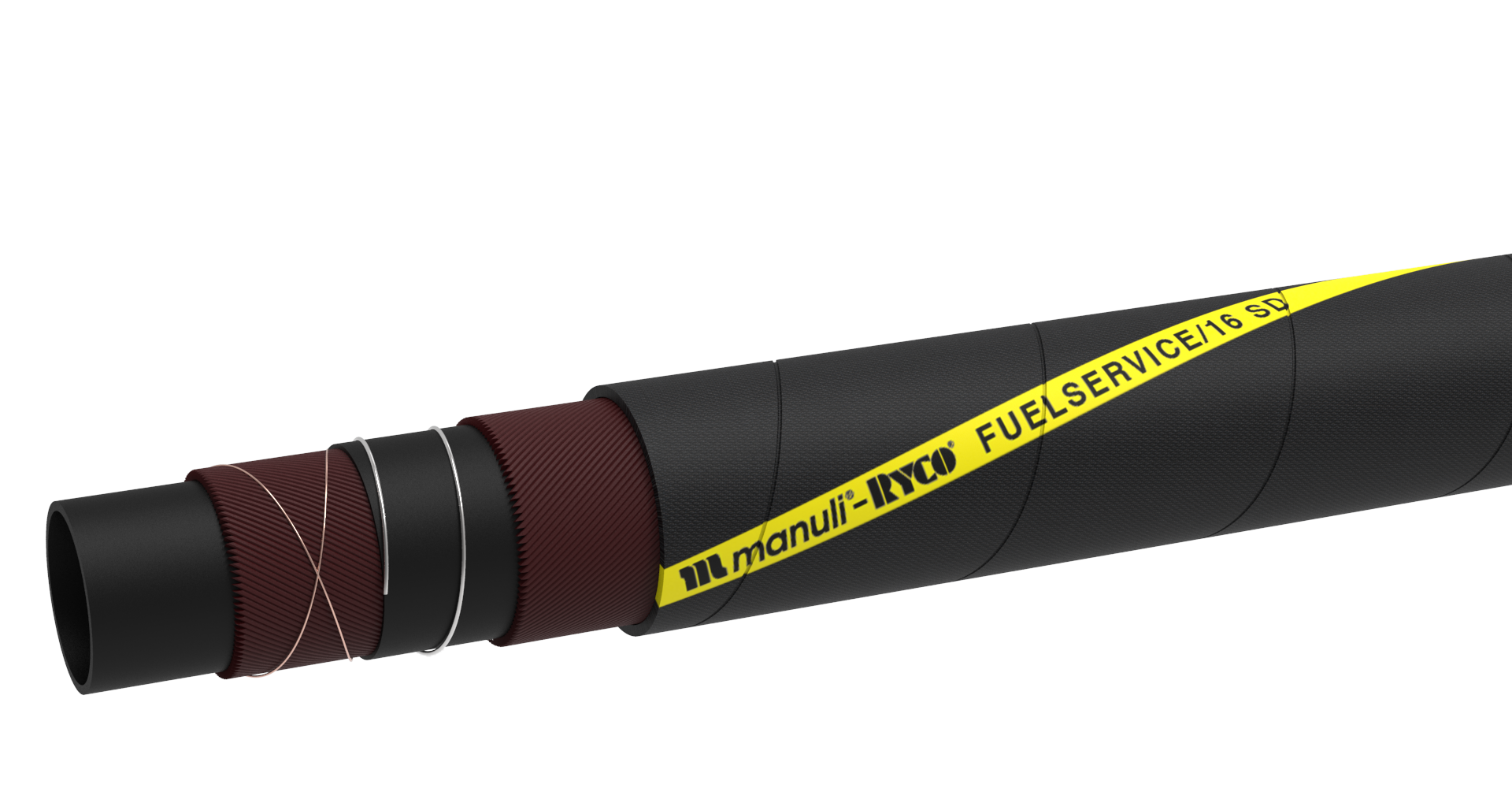

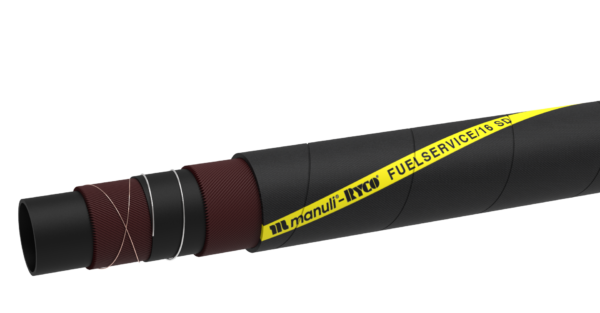

FUELSERVICE/16 SD

Technical Specifications:

Suction and delivery hose for fuels, oils and petroleum and its derivatives with aromatic content up to 50%. Cover compound tested and approved according to EN 60079-0:2012 (R ≤ 10⁹ Ohm/m). Hose structure designed to assure and maintain the requirements for the ATEX working conditions.

WORKING PRESSURE: 16 bar / 240 psi.

TUBE: Black, anti-static NBR rubber.

REINFORCEMENT: High tensile synthetic cord with steel helix body wire and two crossing copper wires for grounding.

COVER: Black, synthetic CR rubber; fireproof and anti-static (R<1G Ohm/m), chemical, ozone and weathering resistant. Mylar layline for positive, permanent identification.

FEATURES: Hardwall suction and delivery structure; Compact, lightweight and flexible. Highly robust hose structure; Long lasting in severe applications.

Long length assemblies available – Max. length: 61m

APPLICABLE SPECS: EN 12115 (Grade Ω/T) / TRbF; EN 60079-0

TEMPERATURE RANGE: From -30°C to +80°C (-22°F to +176°F).
