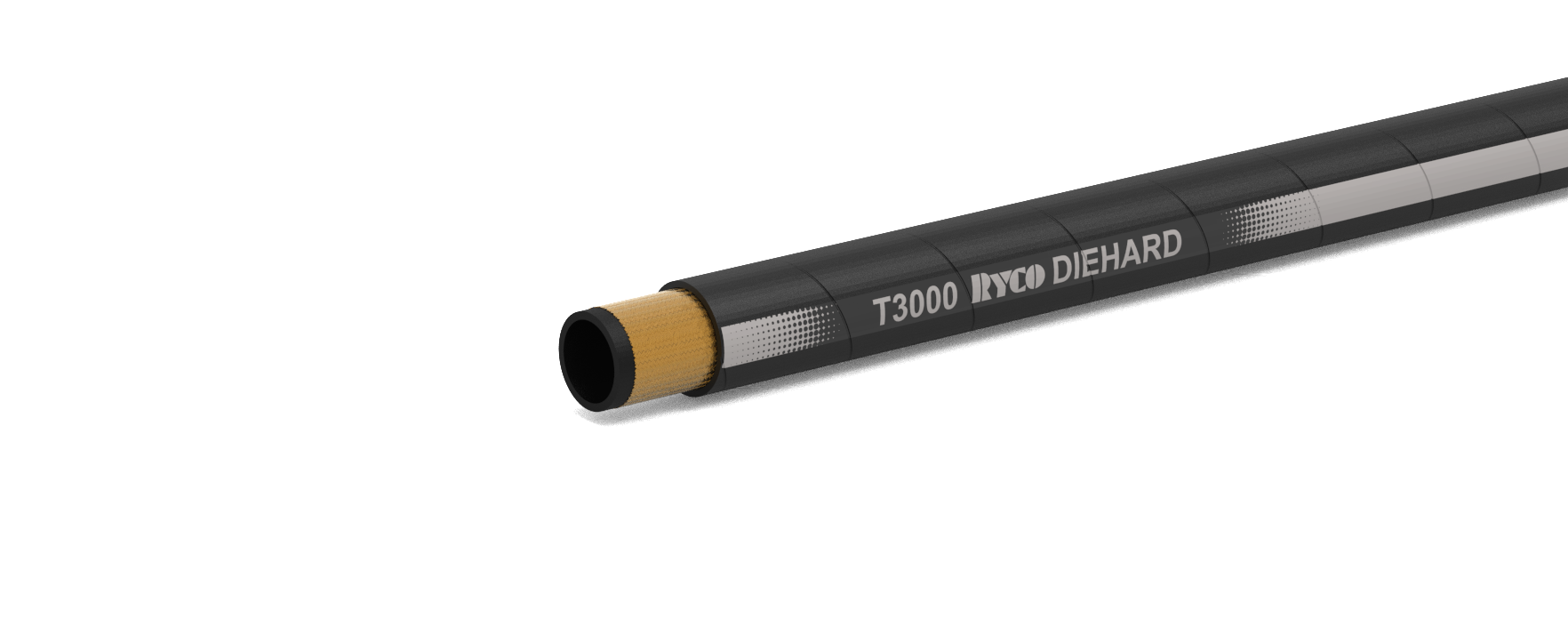

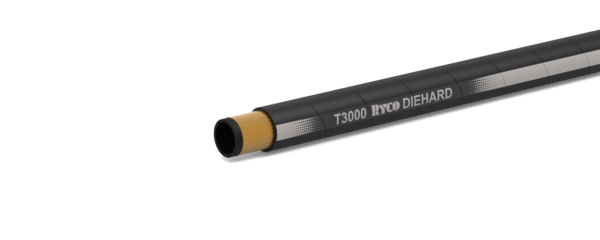

T3000D ISOBARIC – One-Two Wire Braid 3100-3500 psi Compact Hose DIEHARD™ Cover
Additional information
Technical Specifications:
High pressure hydraulic oil lines. Constant pressure (Isobaric) 215 bar / 3100 psi in all sizes. Small bend radius and compact dimensions are advantages in installations.
TUBE: Black, oil resistant synthetic rubber.
REINFORCEMENT: One braid (-04 to -08 size) or two braids (-10 to -16 size) of high tensile steel wire.
COVER: DIEHARD™ Black, oil and extra abrasion resistant synthetic rubber. Flame Resistant, Anti-Static (FRAS) & MSHA compliant. Highly visible layline branding for easy and permanent identification. No skiving required with T2000 Series Crimp Couplings.
FEATURES: Tested to 1 million impulse cycles. Constant pressure 215 bar / 3100 psi in all sizes for easy system design and hose selection. Small bend radius and compact dimensions are advantages in installations.
FRAS – FLAME RESISTANCE AND ANTI-STATIC:
DIEHARD™ complies with Flame Resistant and Electrical Resistance (Anti-Static) requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B and 13A. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.
TEMPERATURE RANGE: -40°C to +100°C (-40°F to +212°F).
WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
| T3000D – DIEHARD COMPACT ISOBARIC HOSE | MATCHED COUPLINGS SERIES | ||
|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | |
| HOSE | DN | DASH | NON-SKIVE |
| T3004D | 6 | -04 | T2000 |
| T3005D | 8 | -05 | T2000 |
| T3006D | 10 | -06 | T2000 |
| T3008D | 12 | -08 | T2000 |
| T3010D | 16 | -10 | T2000 |
| T3012D | 19 | -12 | T2000 |
| T3016D | 25 | -16 | T2000 |
