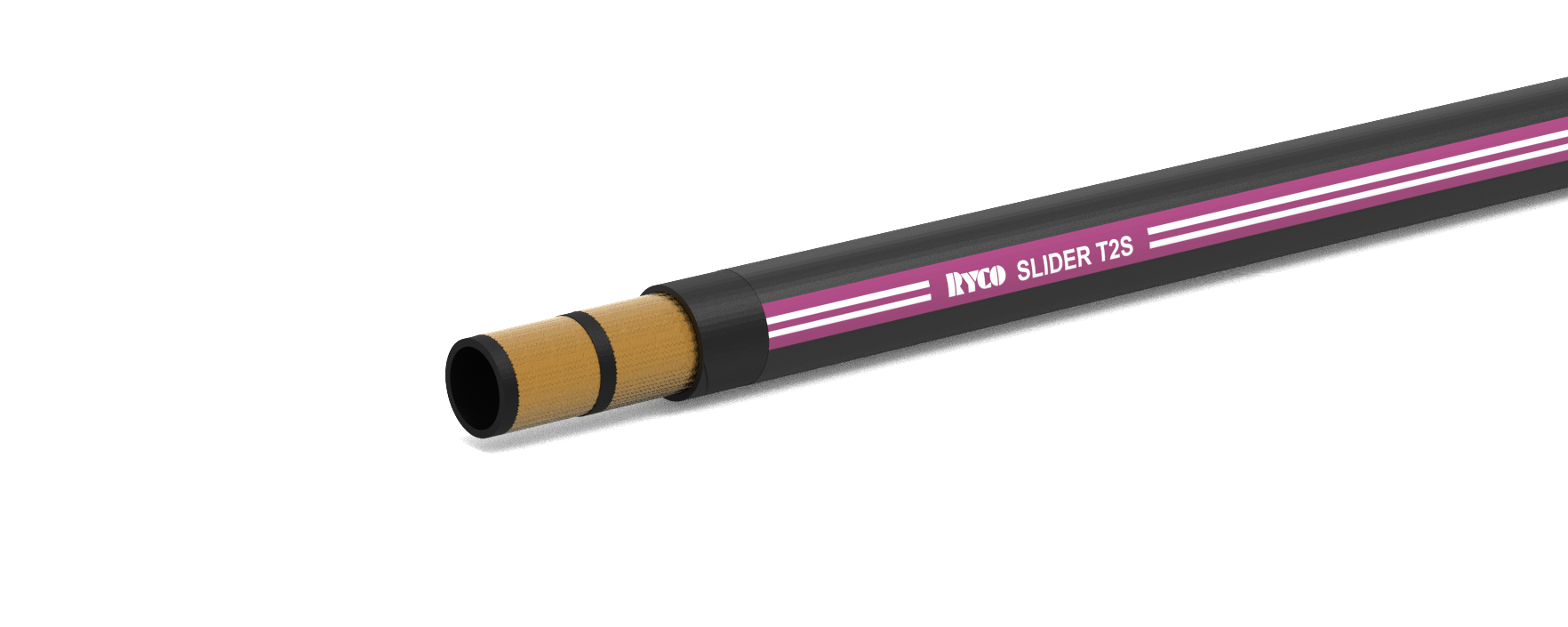

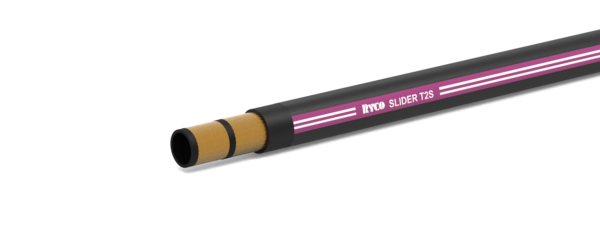

T2S – Two Wire Braid 1300-6100 psi Hose SLIDER Cover

High pressure hydraulic oil lines in applications where the outside cover of the hose is subjected to sliding abrasion that may cause premature failure of standard hoses.

TUBE: Black, oil resistant synthetic rubber.

REINFORCEMENT: Two braids of high tensile steel wire.

COVER: SLIDER Black, oil and extremely abrasion resistant synthetic rubber sheathed with a layer of extremely abrasion resistant polyethylene. Flame Resistant, MSHA compliant. Highly visible layline branding for easy and permanent identification. No skiving required with T2000 & T7000 Series Crimp Couplings.
Meets or Exceeds the Performance Requirements of:
AS 3791 100R2AT, DIN 20022-2SN, EN 853 Type 2SN,
ISO 1436 Type 2AT, SAE 100R2AT.

MSHA – FLAME RESISTANCE: SLIDER complies with Flame Resistant requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.

TEMPERATURE RANGE: From -40°C to +100°C (-40°F to +212°F).

WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
