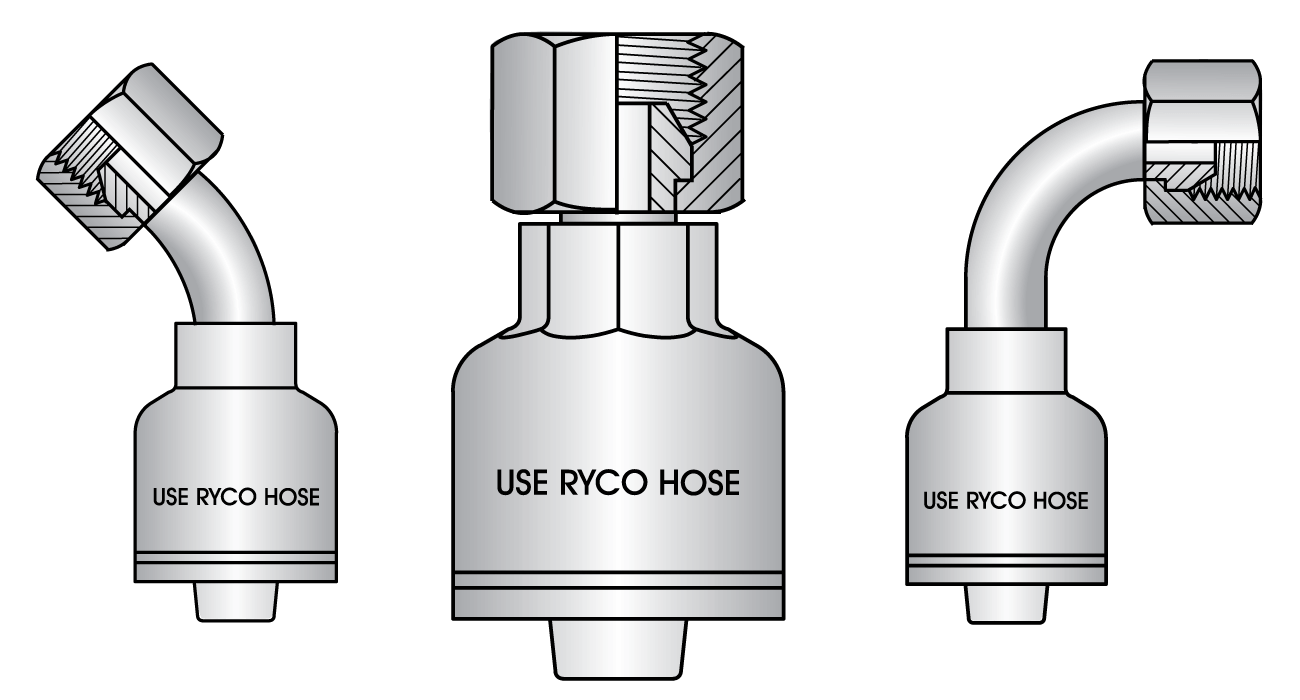

T2000 – BSPT / BSPP
Additional information
BSPT: BRITISH STANDARD PIPE TAPER
Sealing Method: Tapered thread or 30° cone seat
Thread Form: 55°
Thread Standard: Whitworth thread ISO 7-1, BS 21, AS1722.1, DIN 3852-2 (Form C)
BSPP: BRITISH STANDARD PIPE PARALLEL
Sealing Method: 30° cone seat
Thread Form: 55°
Thread Standard: Whitworth ISO 228-1, BS 2779, AS 1722.2
Connection Standard: BS 5200, ISO 8434-6
Coupling Part Number & End Style:
- T2010 – BSPT Male
- T2013 – BSPP Male
- T2017 – BSPP Male Encapsulated Seal
- T2020 – BSPP Female
- T2320 – BSPT Male Swivel
- T2340 – BSPT Male Swivel 90º Elbow
- T2028B – BSPP Female Live Swivel
- T2024 – BSPP Female Flat Face
- T2060 – BSPP Female 45º Elbow
- T2050 – BSPP Female 90º Elbow
- T2270 – BSPP Female 45º Tube Bend
- T2260 – BSPP Female 90º Tube Bend
- T2210 – BSPP Female 90º Long Bend
- T2475 – BSP Banjo
- BBB – BSP Banjo Bolt
- T2027 – BSPO Female
- T2057 – BSPO Female 90º Elbow
- T2277 – BSPO Female 45º Tube Bend
- T2267 – BSPO Female 90º Tube Bend
