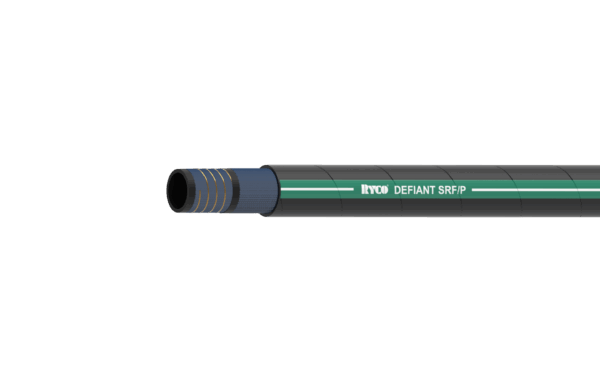

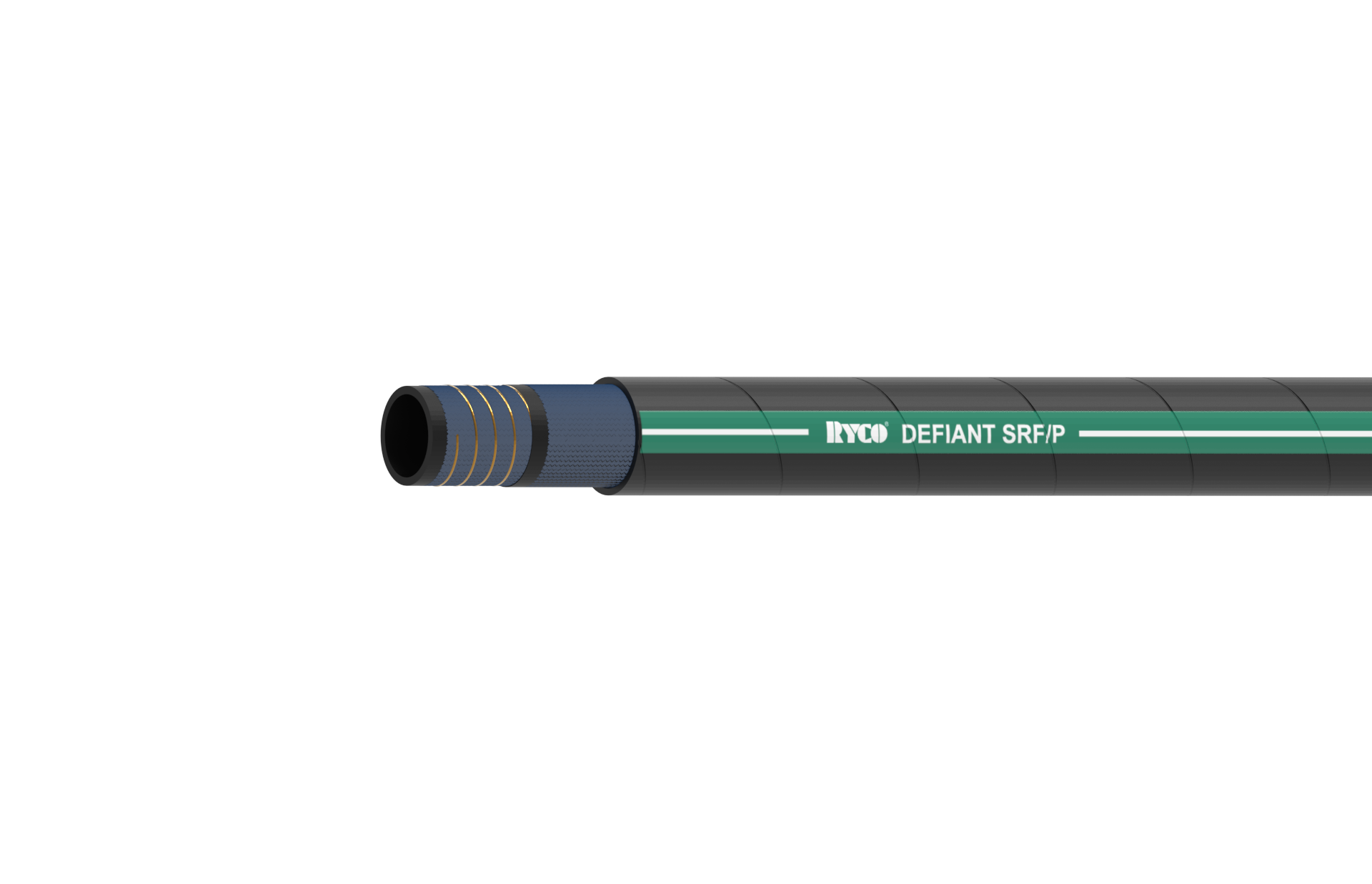

SRF/P DEFIANT Compact Suction & Return Hose
Additional information
SRF/P DEFIANT
Compact suction & return hose.
RECOMMENDED FOR:
Petroleum and water base hydraulic Auids in suction lines or in low pressure return lines. Small bend radius is an advantage in installations where space is minimal.
PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
AS 3791 100R4, SAE J517 100R4.
TUBE:
Black, oil resistant synthetic rubber.
REINFORCEMENT:
Textile reinforcement with spiral wire to prevent collapsing.
COVER:
Black, oil resistant and abrasion resistant synthetic rubber.
TEMPERATURE RANGE:
From -40°C to +100°C (-40°F to +212°F).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T4000 Series (Sizes -12 to -48).
NON-SKIVE TWO-PIECE CRIMP
MF Series +M03400 Ferrule (Sizes -56 to -64).
| SRFP – DEFIANT COMPACT SUCTION AND RETURN HOSE | MATCHED COUPLINGS SERIES | ||
|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | |
| HOSE | DN | DASH | NON-SKIVE |
| SRFP12 | 19 | -12 | T4000 |
| SRFP16 | 25 | -16 | T4000 |
| SRFP20 | 31 | -20 | T4000 |
| SRFP24 | 38 | -24 | T4000 |
| SRFP32 | 51 | -32 | T4000 |
| SRFP40 | 63 | -40 | T4000 |
| SRFP48 | 76 | -48 | T4000 |
| SRFP56 | 89 | -56 | MF + M03400-56 |
| SRFP64 | 102 | -64 | MF + M03400-64 |
