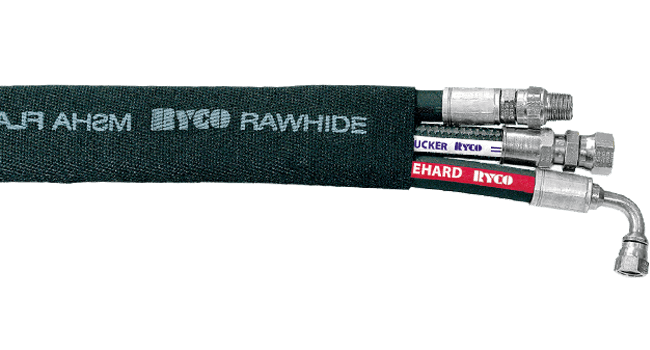

RH RAWHIDE – Nylon Hose Sleeve
Additional information
Technical Specifications:
Protection of individual hoses from severe abrasion. Provides a cost effective method of bundling hoses together, while providing abrasion resistance to the bundle. When abrasion occurs, the thousands of tiny filaments in the sleeve bulk up, to continually renew the surface.
Densely woven, multi-filament nylon, tubular sleeve. Black colour. Nylon is not affected by exposure to air, water, hydraulic oil and many other fluids. The inside bore of the
sleeve is smooth, allowing hose to move inside the sleeve, and allowing easy installation.
FLAME RESISTANCE:
Meets Flame Resistant Designation ”U.S. MSHA” of the U.S. Department of Labor, Mine Safety and Health Administration.
TEMPERATURE RANGE:
From – 50°C to + 121°C (- 58°F to + 250°F).
SIZE SELECTION:
Choose a size that is slightly larger than the hose or hoses to be sleeved.
If sleeve is to be installed onto fitted hose assemblies, allow for the maximum outside profile of the hose fittings.
ASSEMBLY INSTRUCTIONS:
1. Cut the Nylon Hose Sleeve to length.
2. The loose fibres of the cut edges can be sealed with a heat gun or hot knife, to prevent fraying.
3. Install over hoses or hose assemblies.
4. Secure in place using cable ties, band clamps or hose clamps.
STANDARD LENGTHS:
91.4 metre (300 ft) long coils; or cut lengths.
