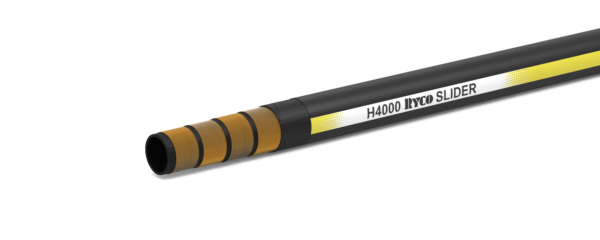

H4000S ISOBARIC – Four-Six Wire Spiral 4100 psi Hose SLIDER Cover

High pressure hydraulic oil lines. Constant pressure (Isobaric) 280 bar / 4100 psi in all sizes. Small bend radius is an advantage in installations.

TUBE: Black, oil resistant synthetic rubber.

REINFORCEMENT: Four (-06 to -24 size) and six (-32 size) alternating layers of spiralled high tensile steel wire.

COVER: SLIDER Black, oil and extremely abrasion resistant synthetic rubber sheathed with a layer of extremely abrasion resistant polyethylene. Flame Resistant, MSHA compliant. Highly visible layline branding for easy and permanent identification. No skiving required with T7000 Series Crimp Couplings.
Meets or Exceeds the Performance Requirements of:
EN 856 Type R12, EN 856 Type 4SP (size DN25, -16), ISO 18752-DC, SAE 100R12.

FEATURES: Tested to 1 million impulse cycles at up to 1/2 SAE 100R12 Minimum Bend Radius. Constant pressure 280 bar / 4100 psi in all sizes for easy system design and hose selection. Small bend radius is an advantage in installations.

MSHA – FLAME RESISTANCE: SLIDER complies with Flame Resistant requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.

TEMPERATURE RANGE: -40°C to +121°C, (-40°F to +250°F.)

WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
