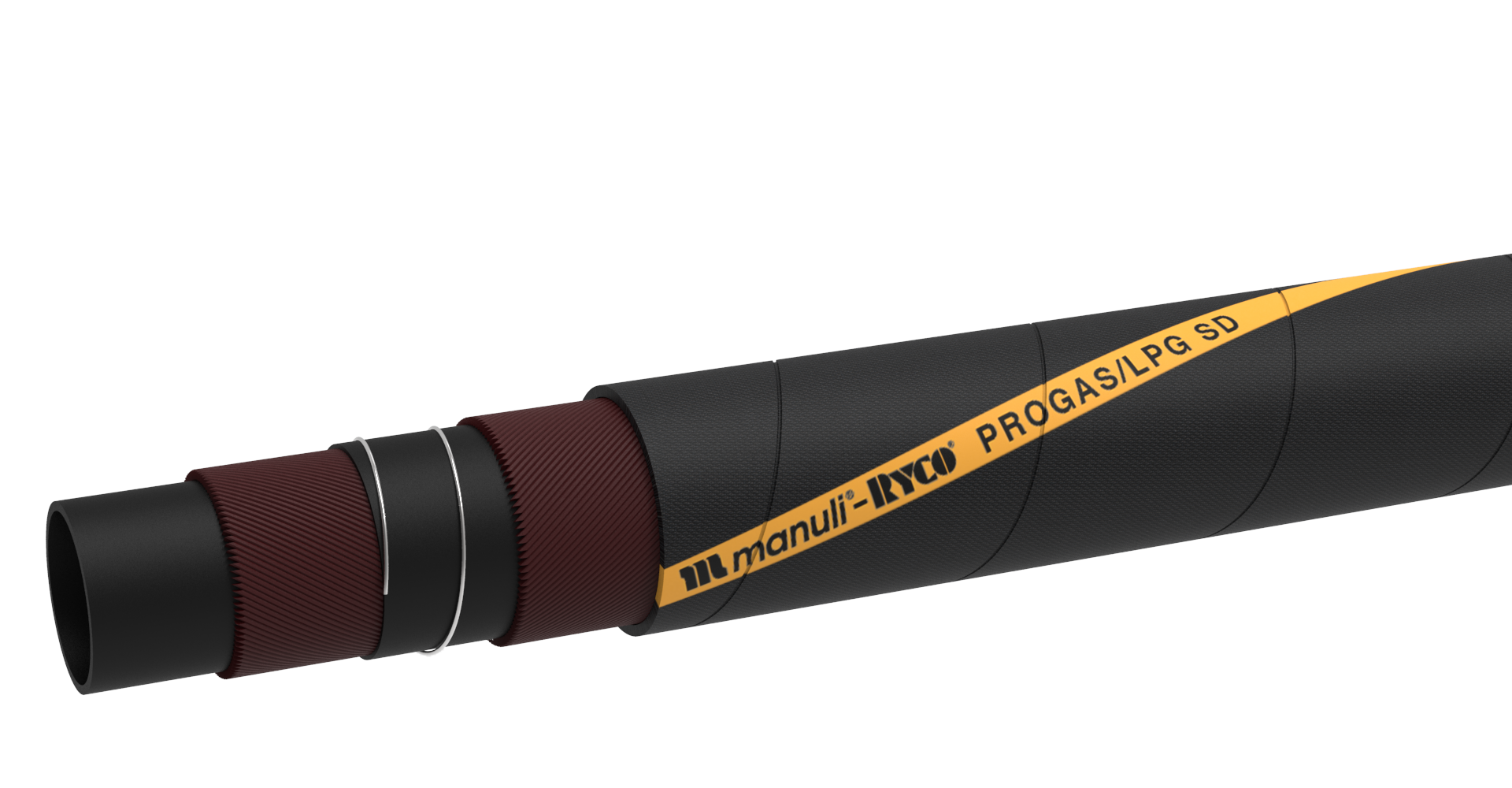

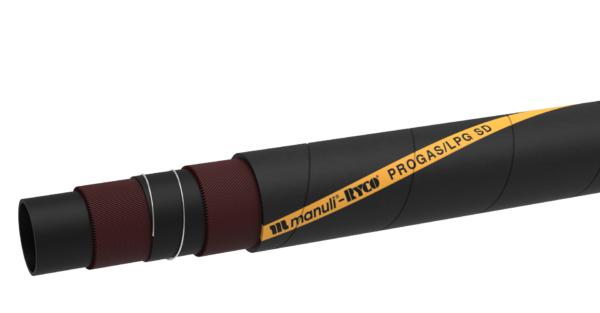

PROGAS LPG SD

Additional information

Technical Specifications:

Suction and delivery of LPG.

WORKING PRESSURE: 25 bar / 375 psi.

TUBE: Black, NBR conductive rubber.

REINFORCEMENT: High tensile synthetic cord and steel helix body wire.

COVER: Black, pin-pricked CR rubber; fire-proof; anti-static (R<106 Ohm/m), oil, abrasion and weathering resistant. Mylar layline for positive, permanent identification.

FEATURES: Hardwall suction and delivery structure; Compact, lightweight and flexible; Highly robust hose structure; Long lasting in severe applications.

Long length assemblies available – Max. length: 61m

APPLICABLE SPECS: EN 1762 Type SD / TRbF

TEMPERATURE RANGE: From -30°C to +70°C (-22°F to +158°F).

PROGAS LPG SD MATCH COUPLING SERIES
PART NO HOSE SIZE TWO-PIECE
HOSE DN DASH SKIVE
H80057012 12 -08 SR+D08000 SERIES
H80057016 16 -10 SR+D08000 SERIES
H80057019 19 -12 SR+D08000 SERIES
H80057025 25 -16 SR+D08000 SERIES
H80057031 31 -20 SR+D08000 SERIES
H80057038 38 -24 SR+D08000 SERIES
H80057051 51 -32 SR+D08000 SERIES
H80057063 63 -40 SR+D08000 SERIES
H80057076 76 -48 SR+D08000 SERIES
H80057102 102 -64 SR+D08000 SERIES
