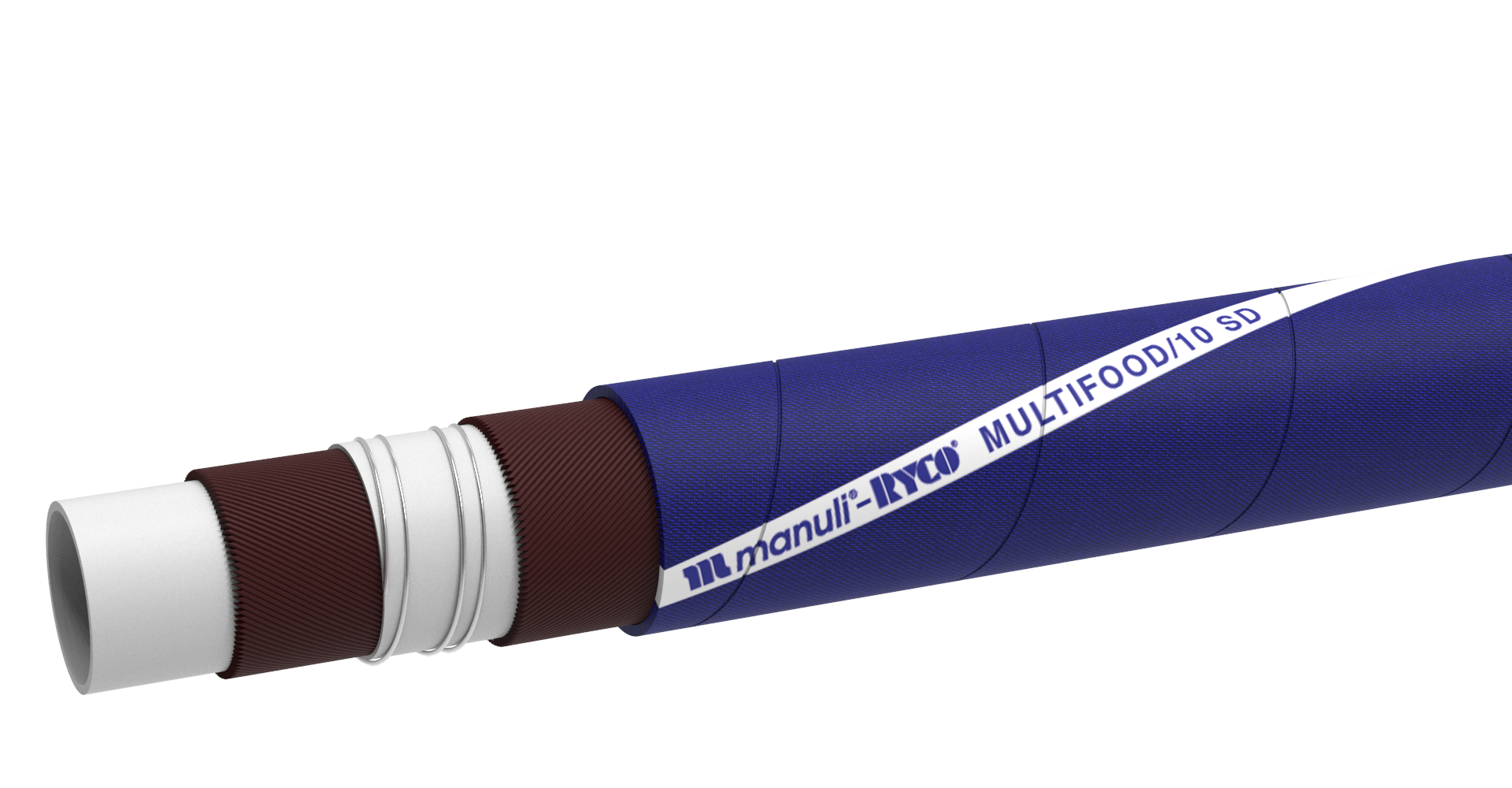

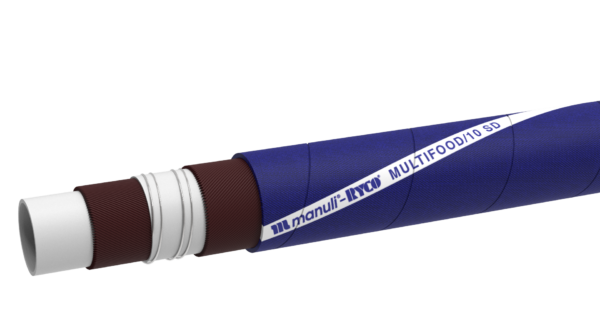

MULTIFOOD/10 SD

Additional information

Technical Specifications:

Suction & delivery hose for fatty foods, wine, beer, potable water etc..

WORKING PRESSURE: 10 bar / 150 psi.

TUBE: White EPDM rubber, food quality, odourless and taste-free.

REINFORCEMENT: High tensile synthetic cord and 2 steel helix body wires.

COVER: Blue EPDM rubber; ozone, abrasion and weathering resistant. Mylar layline for positive, permanent identification.

FEATURES: Hardwall suction and delivery structure; Compact, lightweight and flexible; Highly robust hose structure; Long lasting in severe applications.

Long length assemblies available – Max. length: 61m

APPLICABLE SPECS: FDA title 21 art. 177.2600 (f) for fatty foods; BfR; ADI free; D.M. 21/03/73; CE 1935/2004; PHTHALATE free.

TEMPERATURE RANGE: From -40°C to +140°C (-40°F to +284°F); Sterilization at 110°C/230°C for 30 minutes

MULTIFOOD/10 SD MATCH COUPLING SERIES
PART NO HOSE SIZE TWO-PIECE
HOSE DN DASH SKIVE
H80045038 38 -24 SR+D08000 SERIES
H80045051 51 -32 SR+D08000 SERIES
H80045063 63 -40 SR+D08000 SERIES
H80045076 76 -48 SR+D08000 SERIES
H80045102 102 -64 SR+D08000 SERIES
