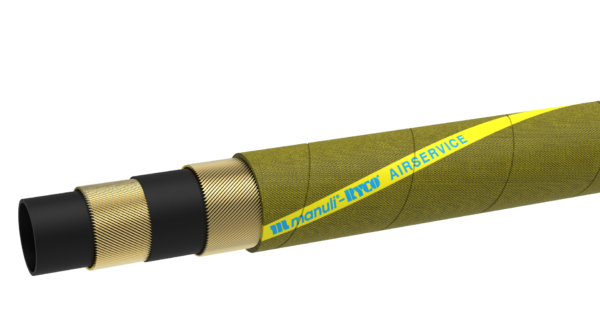

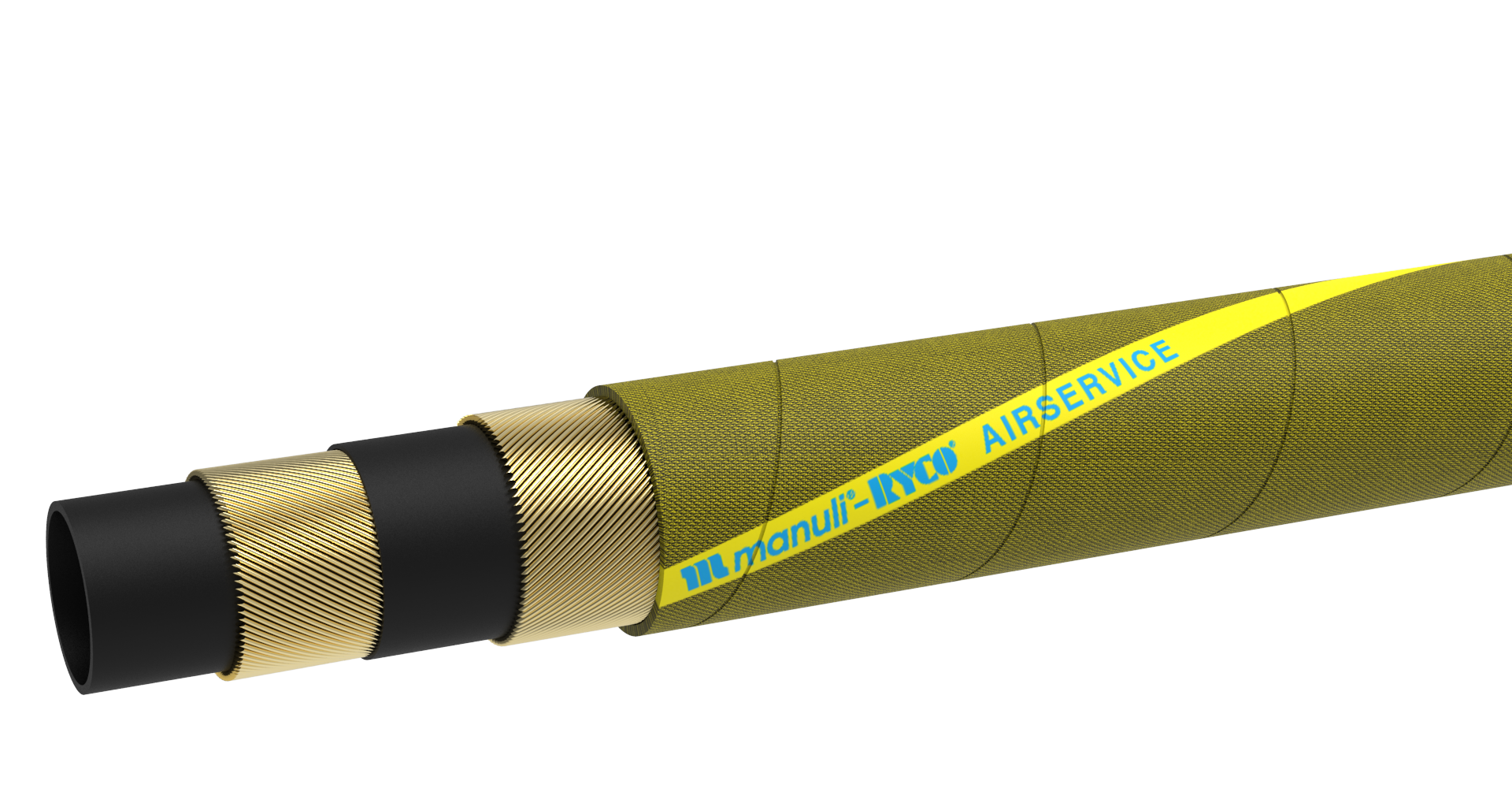

AIRSERVICE

Additional information

Technical Specifications:

Heavy duty air compressor hose, for use with high-pressure compressed air with oil traces used in mining, construction, etc. Typically used in compressed air systems and power transmission.

WORKING PRESSURE: 45 bar / 650 psi.

TUBE: Black, smooth, synthetic SBR rubber.

REINFORCEMENT: Two wire braids or multiple plies of high tensile steel wire spirals.

COVER: Yellow, synthetic NBR/PVC rubber. Long-lasting weathering and ozone resistant. Mylar layline for positive, permanent identification.

FEATURES: Heavy duty, softwall delivery structure; Highly robust hose structure; Long lasting in severe applications.

Long length assemblies available – Max. length: 61m

TEMPERATURE RANGE: From -40°C to +80°C (-40°F to +176°F).

AIRSERVICE MATCH COUPLING SERIES
PART NO HOSE SIZE TWO-PIECE
HOSE DN DASH SKIVE
H80010019 19 -12 SR+D08000 SERIES
H80010025 25 -16 SR+D08000 SERIES
H80010031 31 -20 SR+D08000 SERIES
H80010038 38 -24 SR+D08000 SERIES
H80010051 51 -32 SR+D08000 SERIES
H80010063 63 -40 SR+D08000 SERIES
H80010076 76 -48 SR+D08000 SERIES
H80010102 102 -64 SR+D08000 SERIES
