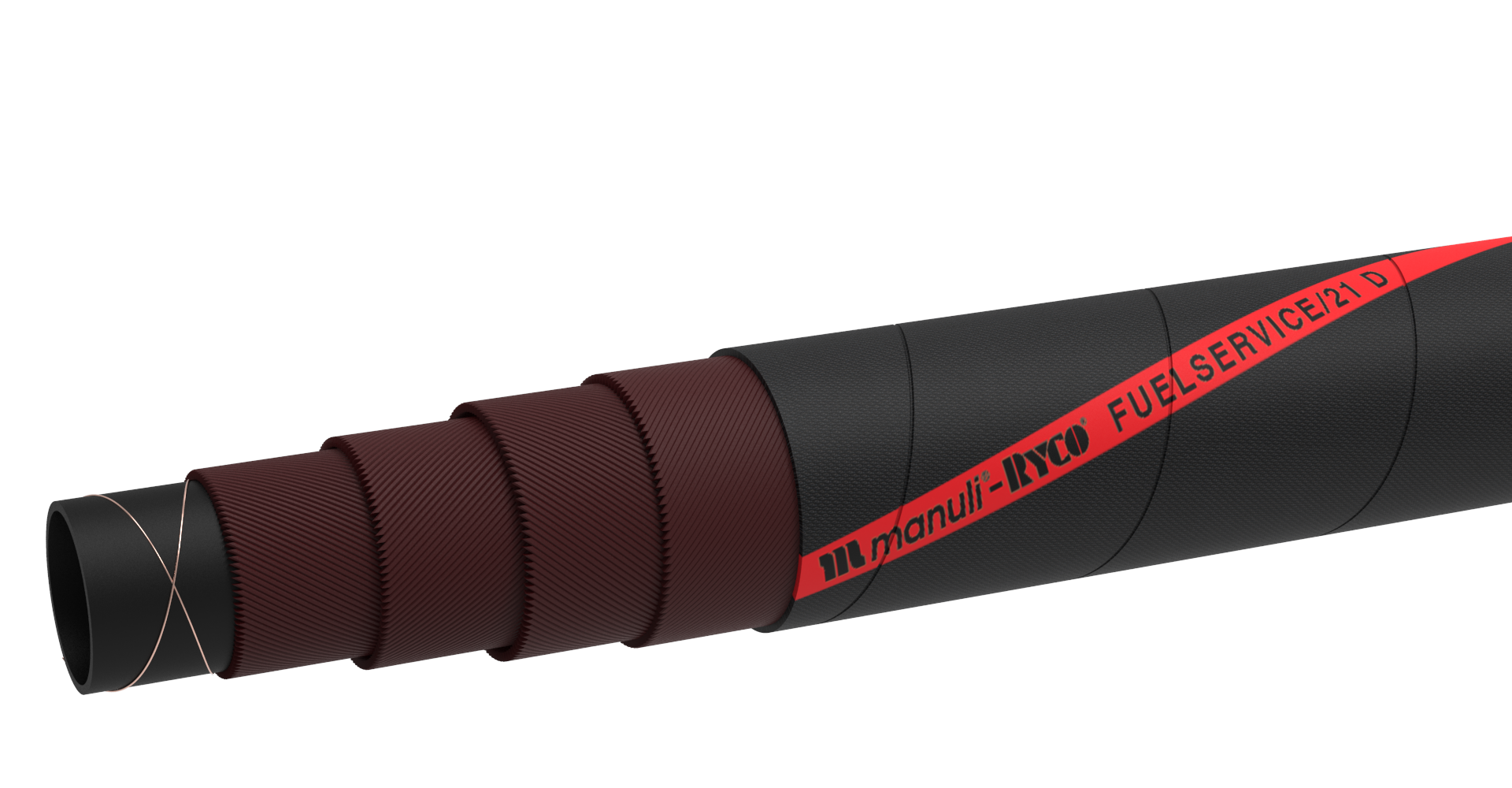

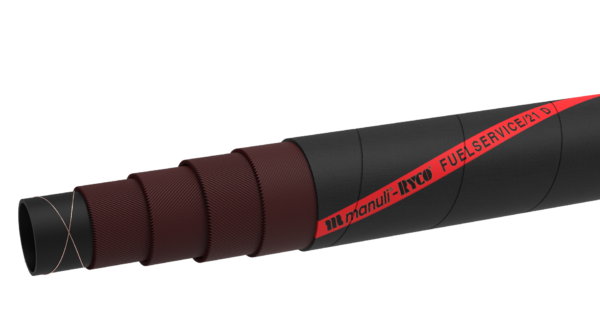

FUELSERVICE/21 D

Additional information

Technical Specifications:

Delivery hose for fuels, oils and diesel with aromatic content up to 50%.

WORKING PRESSURE: 21 bar / 300 psi.

TUBE: Black NBR anti-static rubber.

REINFORCEMENT: High tensile synthetic cord and two crossing copper wires for grounding.

COVER: Black, synthetic SBR rubber; Long lasting, ozone and weathering resistant. Mylar layline for positive, permanent identification.

FEATURES: Softwall delivery structure; Highly robust heavy duty hose structure; Long lasting in severe applications.

Long length assemblies available – Max. length: 61m

TEMPERATURE RANGE: From -30°C to +90°C (-22°F to +194°F).

FUELSERVICE/21 D MATCH COUPLING SERIES
PART NO HOSE SIZE TWO-PIECE
HOSE DN DASH SKIVE
H80006019 19 -12 SR+D08000 SERIES
H80006025 25 -16 SR+D08000 SERIES
H80006031 31 -20 SR+D08000 SERIES
H80006038 38 -24 SR+D08000 SERIES
H80006051 51 -32 SR+D08000 SERIES
H80006063 63 -40 SR+D08000 SERIES
H80006076 76 -48 SR+D08000 SERIES
