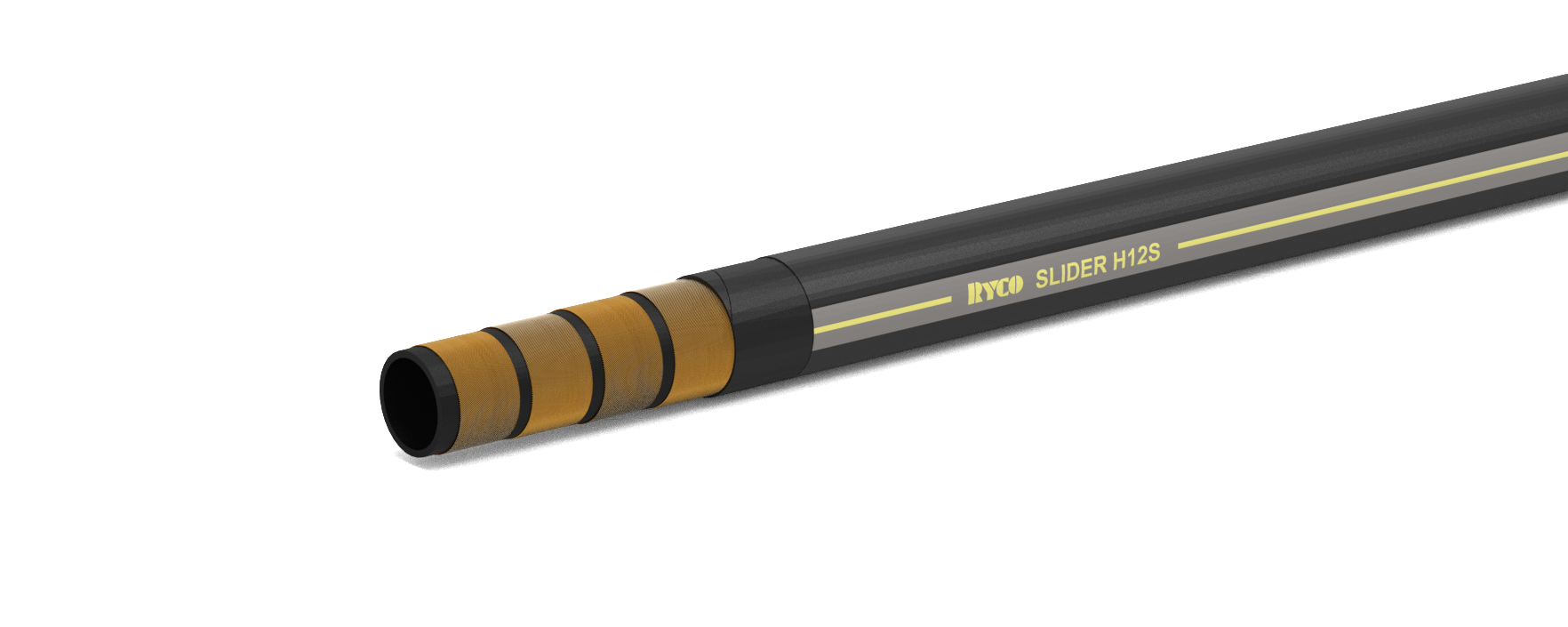

H12S – Four Wire Spiral 3050-5100 psi Hose SLIDER Cover

Additional information

Technical Specifications:

Very high pressure hydraulic oil lines, in applications where the outside cover of the hose is subject to sliding abrasion that may cause premature failure of standard hoses.

TUBE: Black, oil resistant synthetic rubber.

REINFORCEMENT: Four alternating layers of spiralled high tensile steel wire.

COVER: SLIDER Black, oil and extremely abrasion resistant synthetic rubber sheathed with a layer of extremely abrasion resistant polyethylene. Flame Resistant, MSHA compliant. Highly visible layline branding for easy and permanent identification. No skiving required with T7000 Series Crimp Couplings.
Meets or Exceeds the Performance Requirements of:
AS 3791 100R12, EN 856 Type R12, EN 856 Type 4SP
(-12 and above), ISO 3862 Type R12, SAE 100R12.

FEATURES: The extremely high abrasion resistant properties of the polyethylene sheathed cover, combined with the extra high working pressures and excellent impulse life, when tested to SAE 100R12 test conditions, result in increased service life and minimise equipment downtime.

MSHA – FLAME RESISTANCE: SLIDER complies with Flame Resistant requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.

TEMPERATURE RANGE: From -40°C to +121°C (-40°F to +250°F).

WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

H12S – SLIDER SPIRAL HOSE MATCHED COUPLINGS SERIES
PART NO HOSE SIZE ONE PIECE
HOSE DN DASH NON-SKIVE
H1206S 10 -06 T7000
H1208S 12 -08 T7000
H1210S 16 -10 T7000
H1212S 19 -12 T7000
H1216S 25 -16 T7000
H1220S 31 -20 T7000
H1224S 38 -24 T7000
H1232S 51 -32 T7000
