FUELDISPENSER/D

Additional information

Technical Specifications:

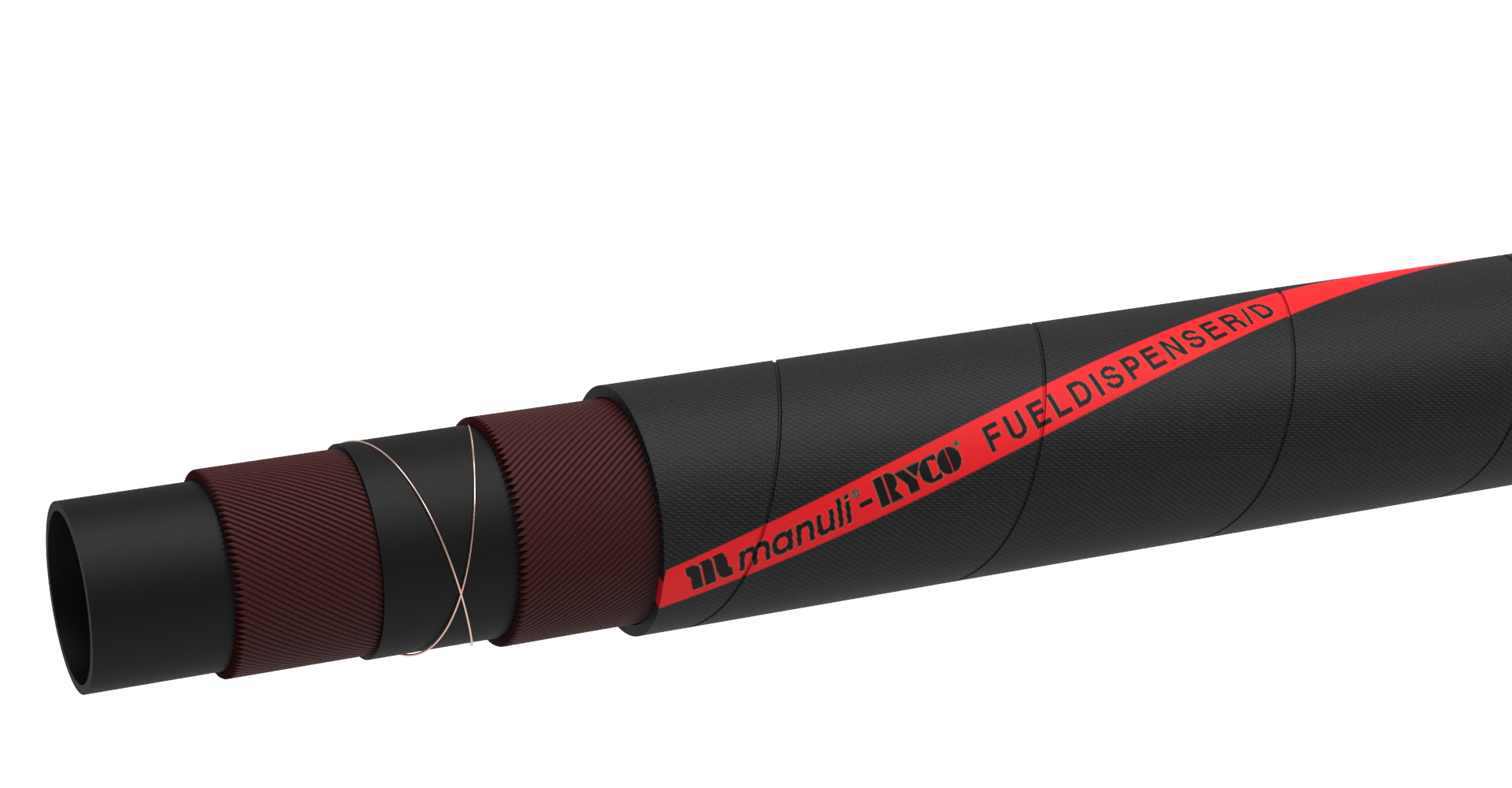

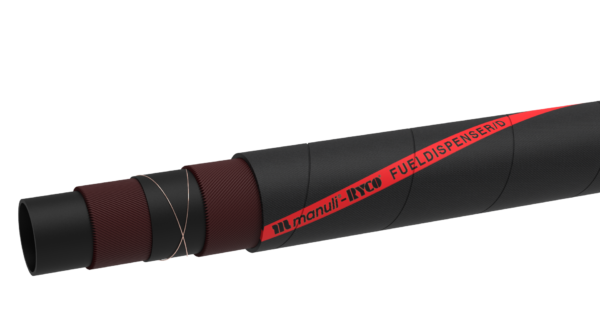

Delivery hose for fuels, oils and petroleum and its derivatives with aromatic content up to 50%.

WORKING PRESSURE: 16 bar / 240 psi.

TUBE: Black NBR rubber.

REINFORCEMENT: High tensile synthetic cord and two crossing copper wires for grounding.

COVER: Black, synthetic CR rubber; fireproof and anti-static (R<106 Ohm/m), chemical, ozone and weathering resistant. Mylar layline for positive, permanent identification.

FEATURES: Hardwall delivery structure; Compact, lightweight and flexible. Highly robust hose structure; Long lasting in severe applications.

Long length assemblies available – Max. length: 61m

APPLICABLE SPECS: EN 1360 Type 1

TEMPERATURE RANGE: From -30°C to +70°C (-22°F to +158°F).

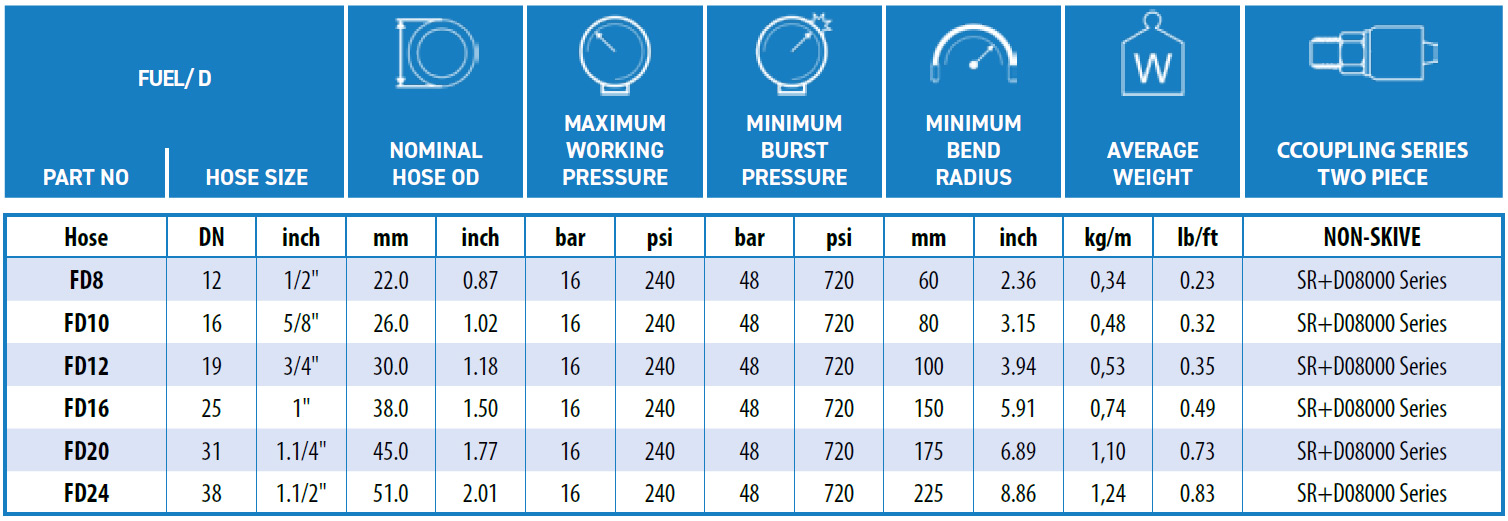

FUELDISPENSER/D MATCH COUPLING SERIES
PART NO HOSE SIZE TWO-PIECE
HOSE DN DASH SKIVE
H80026012 12 -08 SR+D08000 SERIES
H80026016 16 -10 SR+D08000 SERIES
H80026019 19 -12 SR+D08000 SERIES
H80026025 25 -16 SR+D08000 SERIES
H80026031 31 -20 SR+D08000 SERIES
H80026038 38 -24 SR+D08000 SERIES
