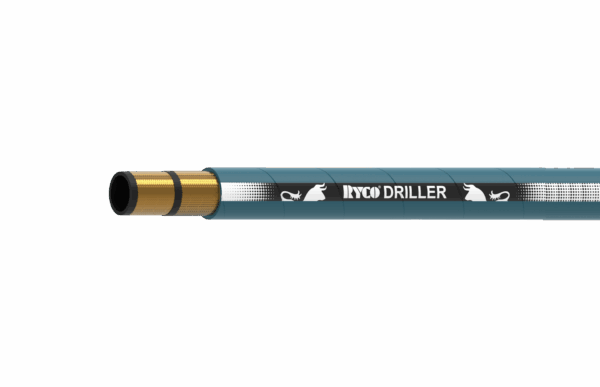

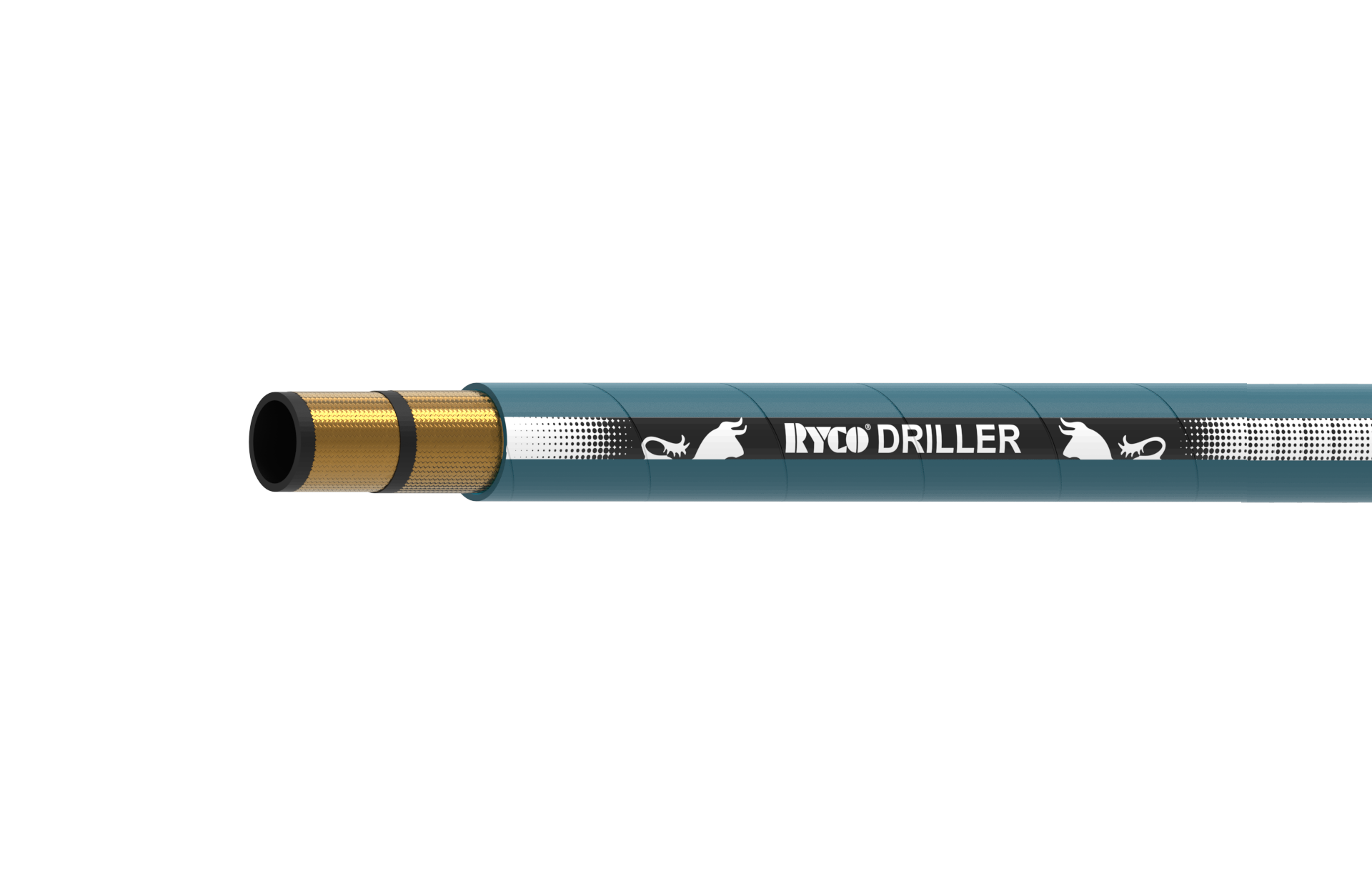

D2B DRILLER High Temperature
Additional information
RECOMMENDED FOR:
Hydraulic oil or air lines. Drill rigs – high pressure, large bore air hose.
PERFORMANCE:
SAE 100R16 (SIZE -20).
TUBE:
Black, oil resistant synthetic rubber specifically compounded for temperature resistance.
REINFORCEMENT:
Two braids of high tensile steel wire.
COVER:
Perforated blue, oil and abrasion resistant synthetic rubber. No skiving required with T2000 & T7000 Series Crimp Couplings.
MSHA – FLAME RESISTANCE:
Complies with Flame Resistant requirements of Australian Standard AS 2660 and Method of Test AS 1180.10B. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.
TEMPERATURE RANGE:
Air: -40°C to +121°C (-40°F to +250°F)
Oil: -40°C to +135°C (-40°F to +275°F)
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
THIRD PARTY APPROVALS:
ABS, DNV-GL, LR, MED, USCG, GOST-R, BV, RINA and KR.
COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series (sizes -20 to -32).
T7000 Series (sizes -24 to -32).
Not suitable for use with field attachable couplings.
| D2B – DRILLER HOSE | MATCHED COUPLINGS SERIES | |||
|---|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | ||
| HOSE | DN | DASH | NON-SKIVE | |
| D220B | 31 | -20 | T2000 | |
| D224B | 38 | -24 | T2000 | T7000 |
| D232B | 51 | -32 | T2000 | T7000 |
