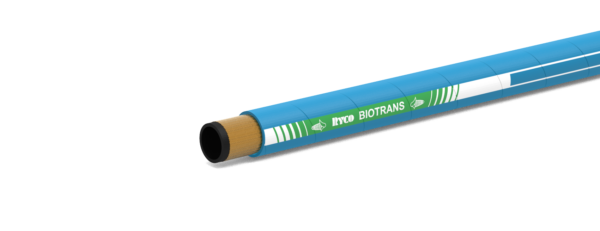

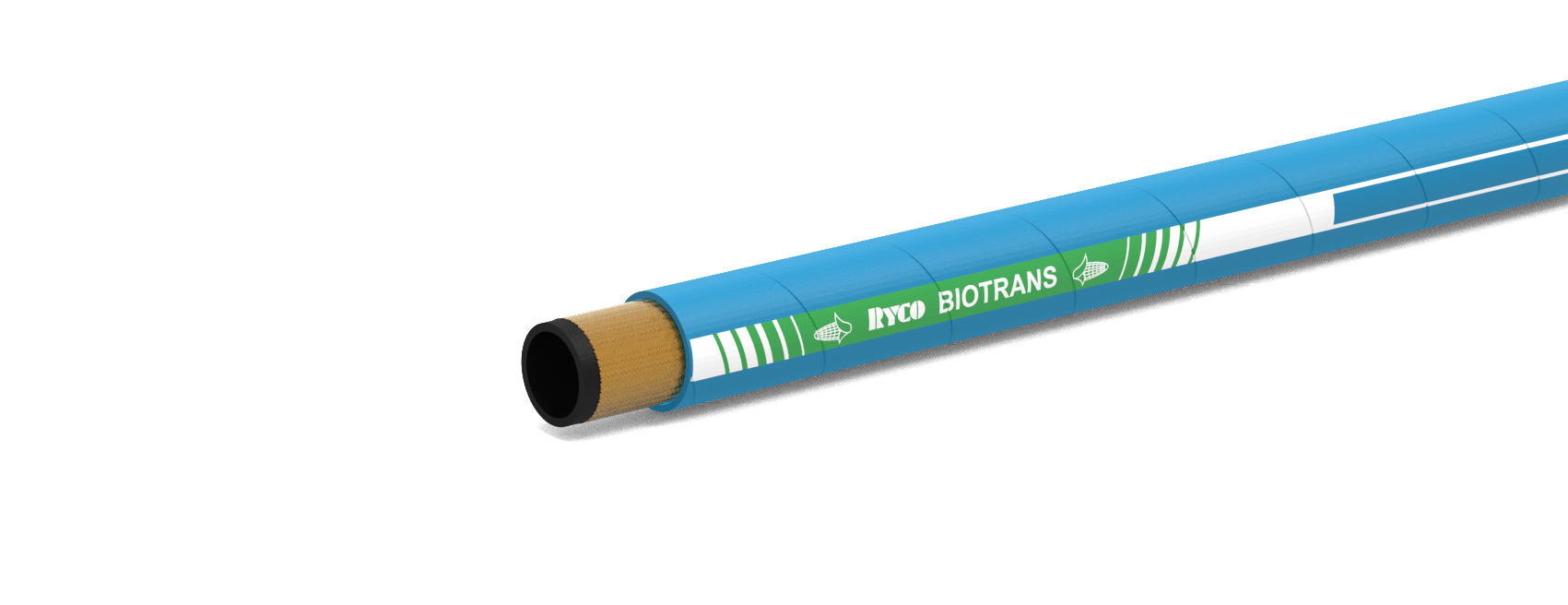

BT1 BIOTRANS – One Wire Braid 725 psi Hose
Additional information
Technical Specifications:
Transportation, marine fuel and engine hose applications. Low pressure hydraulic oil return lines, general purpose water, glycol antifreeze solutions, biodiesel, diesel fuel, ethanol, gasoline/ petrol or air.
TUBE: Black, oil resistant synthetic rubber.
REINFORCEMENT: One braid of high tensile steel wire.
COVER: Blue, oil resistant and abrasion resistant synthetic rubber.
Meets or Exceeds the Performance Requirements of:
SAE J1527 Type Class I, USCG SAE J1942, SAE J30R2
(non-marine). Meets SAE J30R2 performance requirements for
non-marine applications and SAE J1527 Type Class I and USCG
SAEJ1942 for marine applications.
MSHA – FLAME RESISTANCE: Complies with Flame Resistant requirements of Australian Standard AS 2660 and Method of Test AS 1180.10B. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.

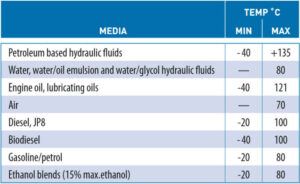

TEMPERATURE RANGE:
WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
| BT1 – BIOTRANS HOSE | MATCHED COUPLINGS SERIES | |||
|---|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | FIELD ATT | |
| HOSE | DN | DASH | NON-SKIVE | |
| BT14 | 6 | -04 | T2000 | 6000 (K000) |
| BT15 | 8 | -05 | T2000 | |
| BT16 | 10 | -06 | T2000 | 6000 (K000) |
| BT18 | 12 | -08 | T2000 | 6000 (K000) |
| BT110 | 16 | -10 | T2000 | 6000 (K000) |
| BT112 | 19 | -12 | T2000 | 6000 (K000) |
| BT116 | 25 | -16 | T2000 | 6000 (K000) |
