BREWERS/12 SD

Additional information

Technical Specifications:

Suction & delivery for beer, wine, alcohol and soft drinks.

WORKING PRESSURE: 12 bar / 180 psi.

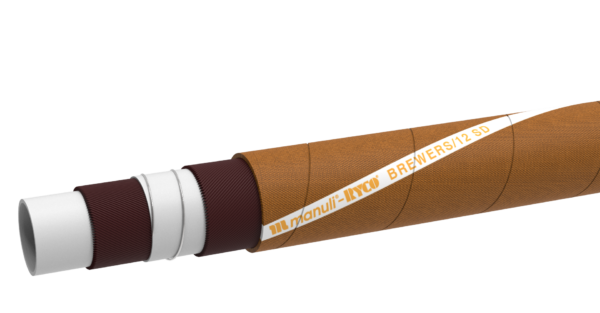

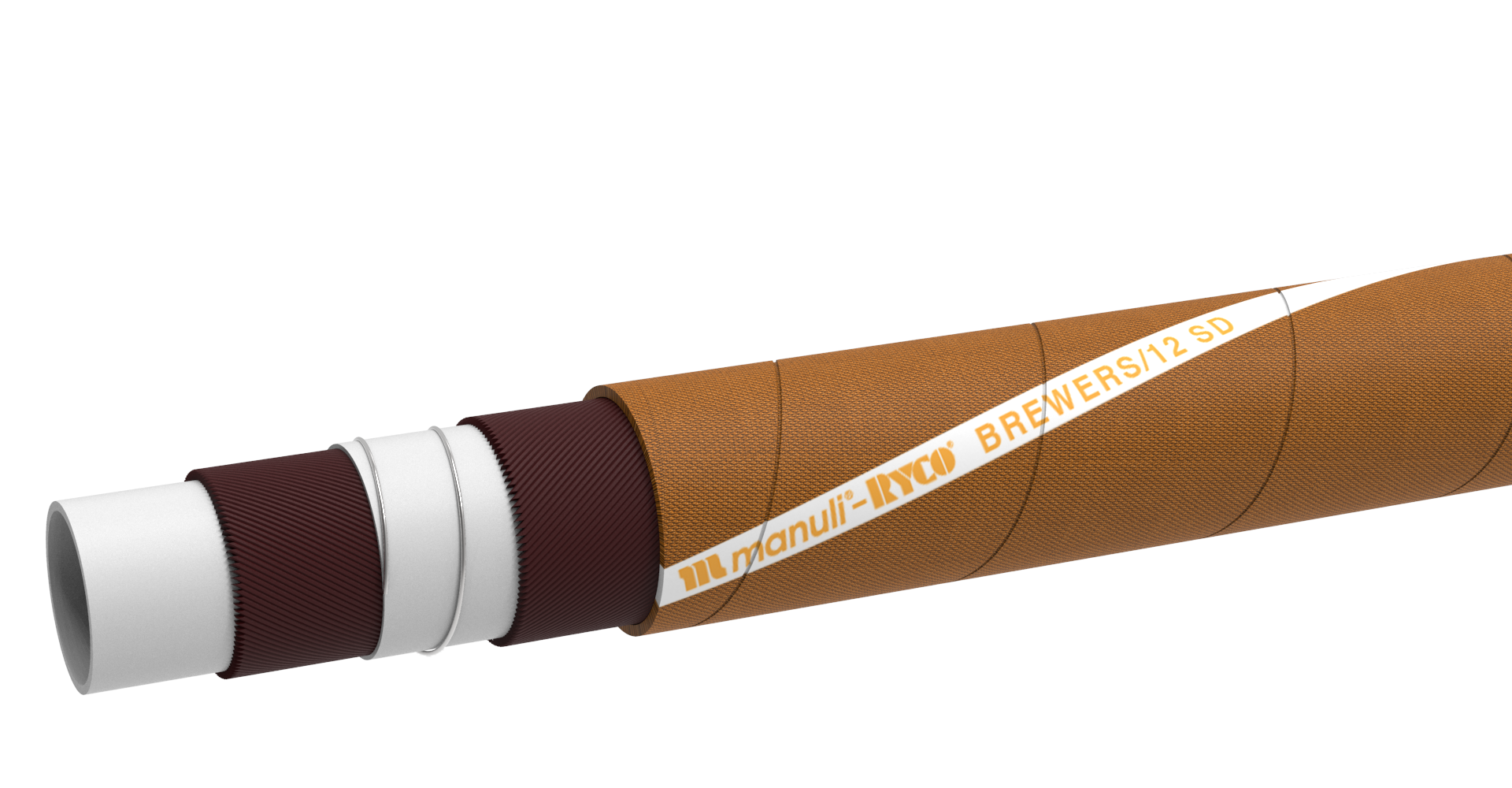

TUBE: White BIIR (butyl) rubber, food quality, odourless and taste-free.

REINFORCEMENT: High tensile synthetic cord and steel helix body wire.

COVER: Orange EPDM rubber; ozone, abrasion and weathering resistant. Mylar layline for positive, permanent identification.

FEATURES: Hardwall suction and delivery structure; Compact, lightweight and flexible; Highly robust hose structure; Long lasting in severe applications.

Long length assemblies available – Max. length: 61m

APPLICABLE SPECS: FDA title 21 art. 177.2600 (e) for liquid foods; BfR; ADI free; CE 1935/2004; PHTHALATE free.

TEMPERATURE RANGE: From -40°C to +120°C (-40°F to +248°F); Sterilization at 110°C/230°C for 30 minutes

BREWERS/12 SD MATCH COUPLING SERIES
PART NO HOSE SIZE TWO-PIECE
HOSE DN DASH SKIVE
H80042019 19 -12 SR+D08000 SERIES
H80042025 25 -16 SR+D08000 SERIES
H80042031 31 -20 SR+D08000 SERIES
H80042038 38 -24 SR+D08000 SERIES
H80042051 51 -32 SR+D08000 SERIES
H80042063 63 -40 SR+D08000 SERIES
H80042076 76 -48 SR+D08000 SERIES
H80042102 102 -64 SR+D08000 SERIES
