| WATER LAYFLAT 5/10 | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| WL1032 | 51 | 2″ | MARKET FITTING |
| WL1048 | 76 | 3″ | MARKET FITTING |
| WL1064 | 102 | 4″ | MARKET FITTING |
| WL1096 | 152 | 6″ | MARKET FITTING |
| WL10128 | 203 | 8″ | MARKET FITTING |
| WL10160 | 254 | 10″ | MARKET FITTING |
| WL10192 | 305 | 12″ | MARKET FITTING |
| WL5288 | 457 | 18″ | MARKET FITTING |
| WL5384 | 609 | 24″ | MARKET FITTING |
Additional information

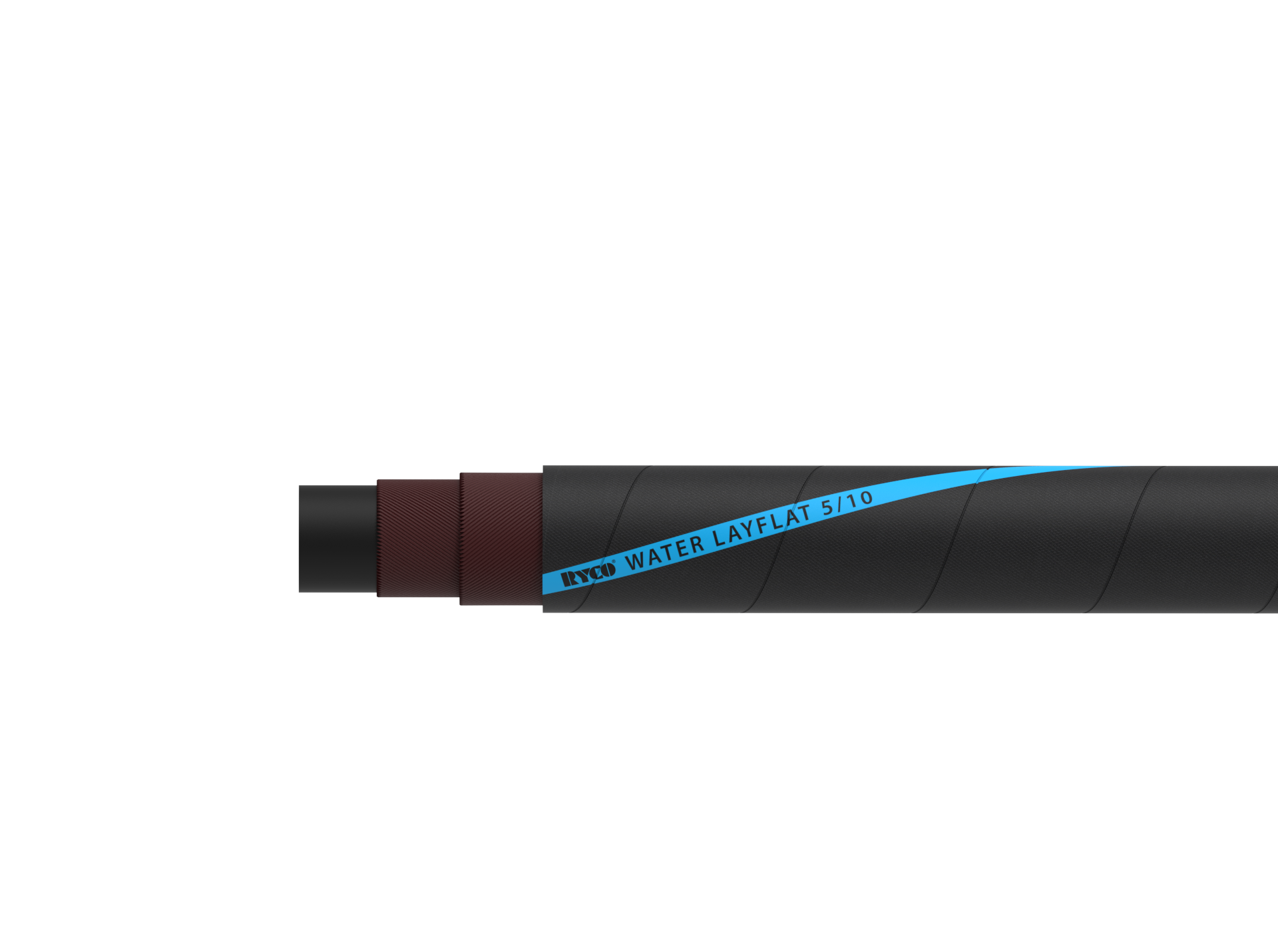

WATER LAYFLAT 5/10
WATER LAYFLAT 5/10
Layflat delivery hose for general purpose water.
TUBE:
Black SBR rubber.
REINFORCEMENT:
High tensile synthetic cord.
COVER:
Black synthetic SBR rubber, abrasion and weathering resistant.
KEY FEATURES:
- Layflat delivery hose.
- Compact, lightweight and flexible.
- Highly robust hose structure.
- Long lasting in severe applications.
- Long length assemblies available:
10 bar: Max length: 61m (DN51 – DN152); 40m (DN203); 20m (DN254 – DN305); 5 bar: Max length: 12m.
APPLICATION & FLUIDS:
Water, liquid fertilizer and non-corrosive inert fluids for irrigation Submersible pumps and general industrial applications.
TEMPERATURE RANGE:
From -30°C to + 80°C (-22°F to +176°F).
WATER LAYFLAT 5/10
Layflat delivery hose for general purpose water.
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
Market Fittings.
