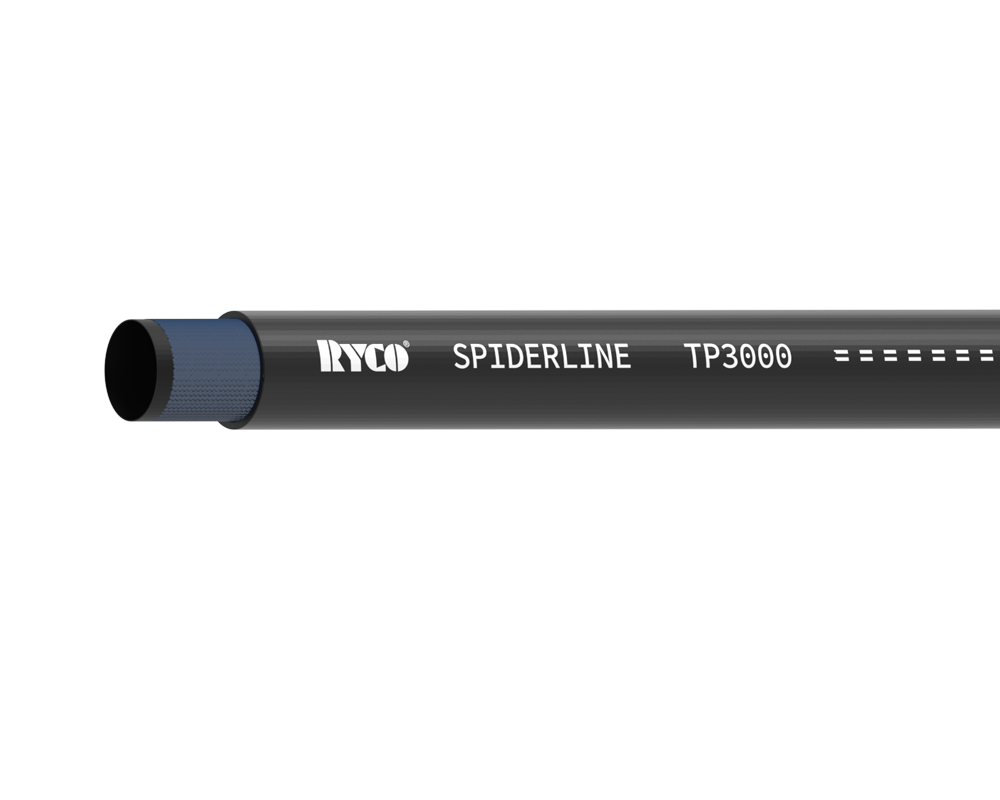

TP3000

RYCO SPIDERLINE

LOW TEMPERATURE R18
ISOBARIC HOSE
210 BAR / 3000 PSI

RECOMMENDED FOR:
Medium pressure hose suitable for petroleum or synthetic based hydraulic fluids in forklift systems. Optimum bonding characteristics and special cover also make it the ideal hose for equipment operating in cold environments, while maintaining a high level of flexibility.

PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
AS 3791 100R8, EN 855 Type R8, ISO 3949, SAE 100R8.

TUBE:
Polyester elastomer.

REINFORCEMENT:
One or two braids of synthetic fibre.

COVER:
Special polyester, black with white ink-jet branding.
Cover is perforated (pin-pricked).

FEATURES:
Special polyester cover resistant to low temperatures and harsh weather conditions. Optimum bonding between tube, braids and cover for tight bend radii without cover wrinkling.

TEMPERATURE RANGE:
From -55˚C to +100˚C (-67˚F to +212˚F)
Air & Water +70 ˚C (+158 ˚F)

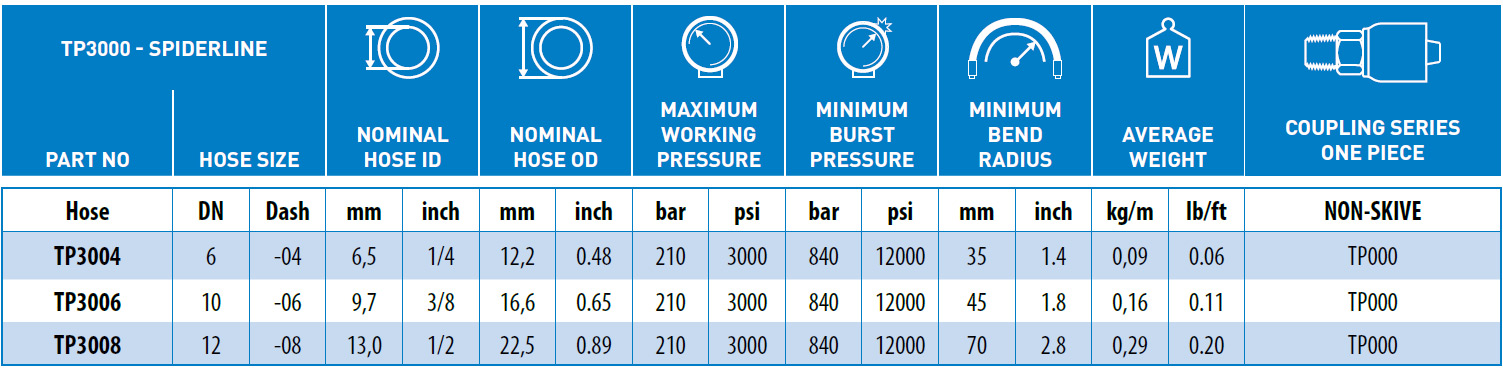

WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:
TP000 Series (Sizes -04 to -16).

Refer to the Ryco Crimp App for the latest crimping parameters.

DISCLAIMER

We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
