Additional information

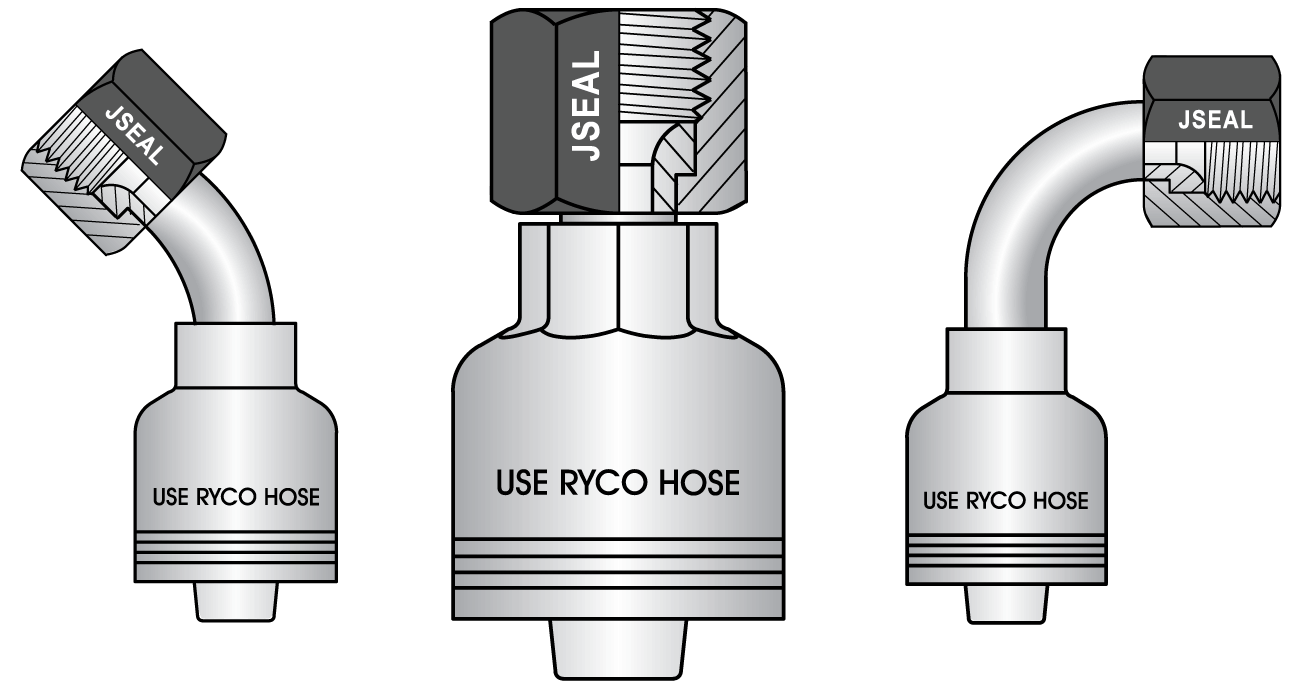

T7000 – JIC / JSEAL™
Sealing Method: 37° Cone Seat / Spherical
Thread Form: 60°
Thread Standard: UN or UNF ASME B1.1
Connection Standard: SAE J514, ISO 8434-2
Thread Form: 60°
Thread Standard: UN or UNF ASME B1.1
Connection Standard: SAE J514, ISO 8434-2
Coupling Part Number & End Style:
- T7030 – T7031 JIC Male

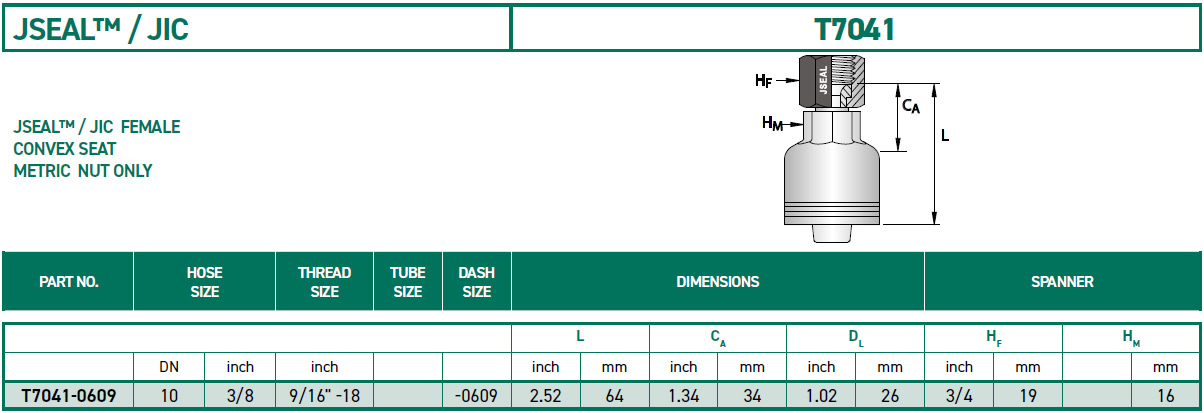

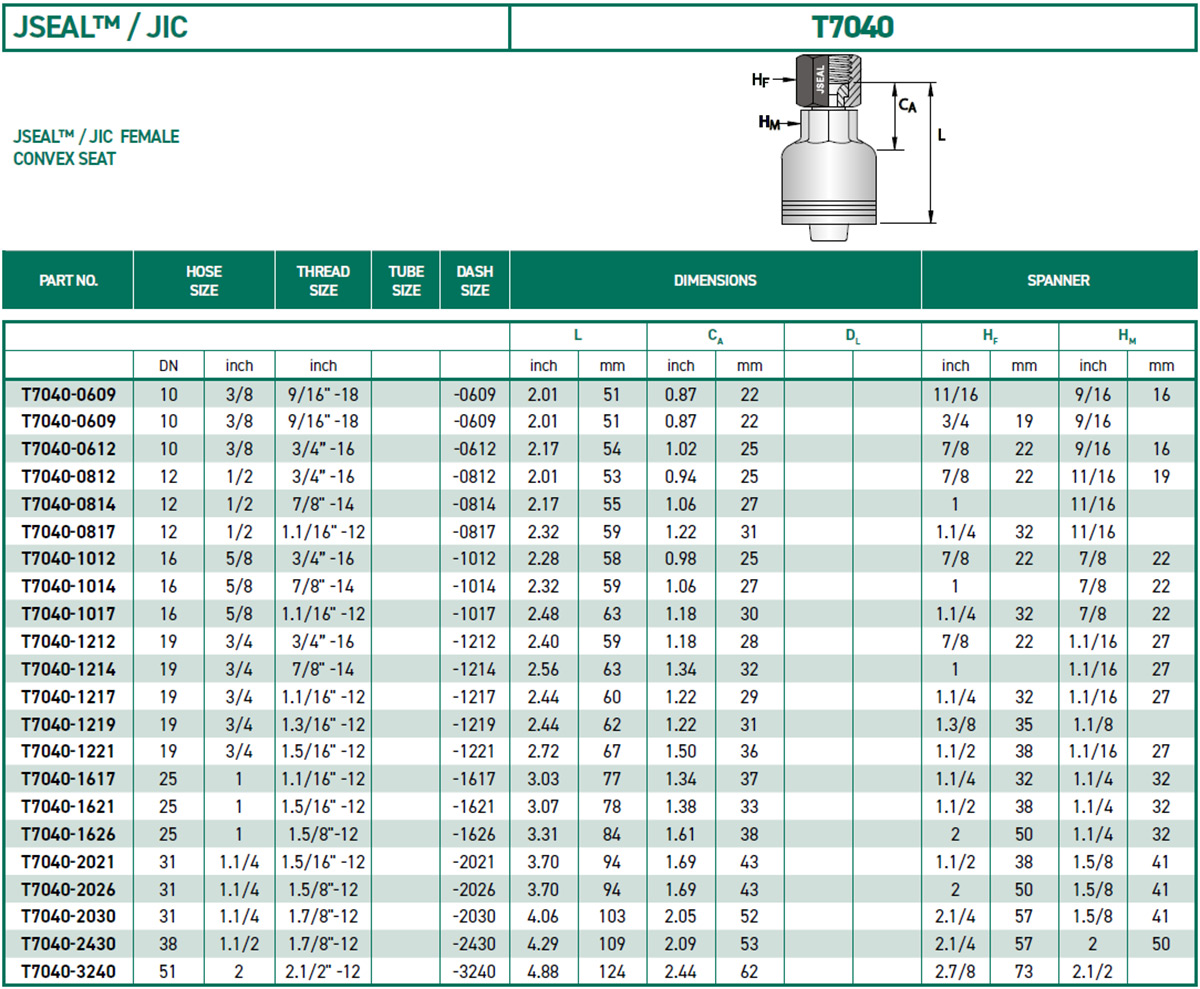

- T7040 – T7041 JSEAL™ / JIC Female
- T7045 – JIC Female High Pressure

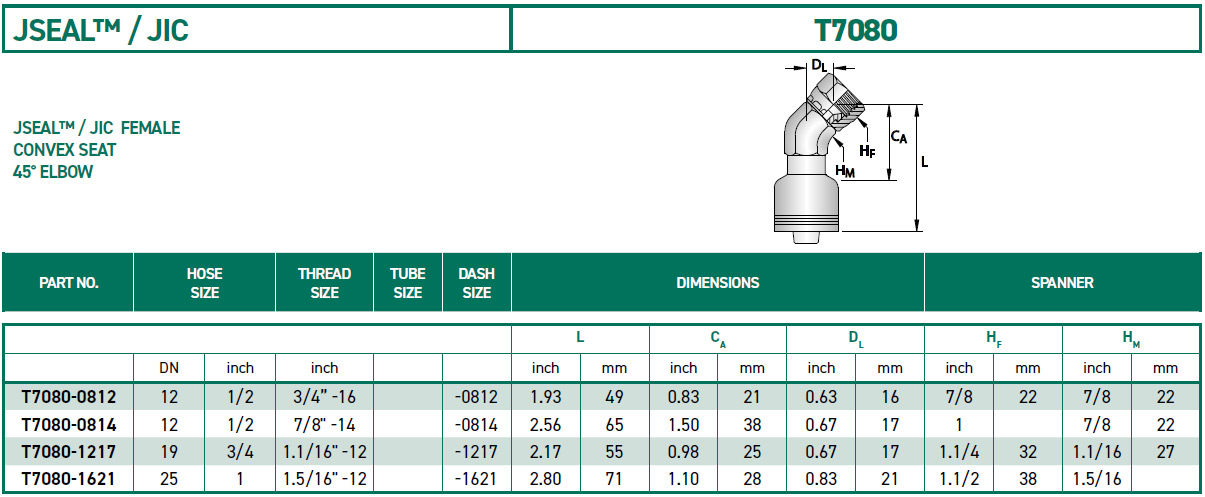

- T7080 – JSEAL™ / JIC Female 45º Elbow

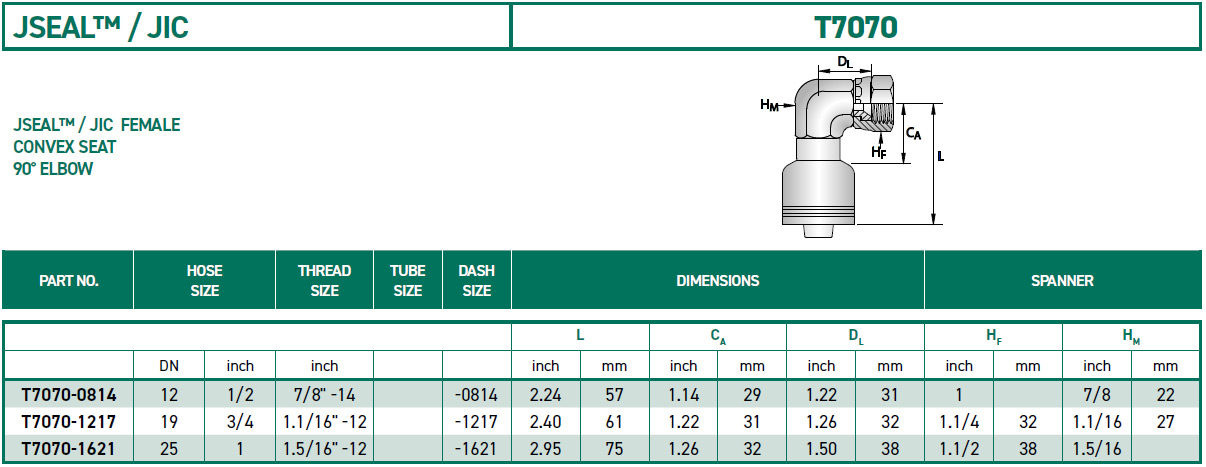

- T7070 – JSEAL™ / JIC Female 90º Elbow

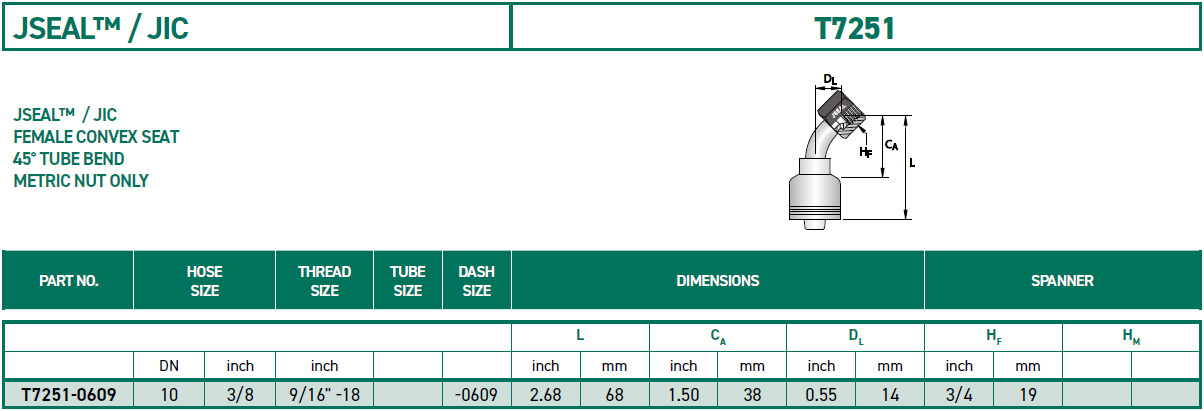

- T7250 – T7251 JSEAL™ / JIC Female 45º Tube Bend
- T7240 – T7241 JSEAL™ / JIC Female 90º Tube Bend

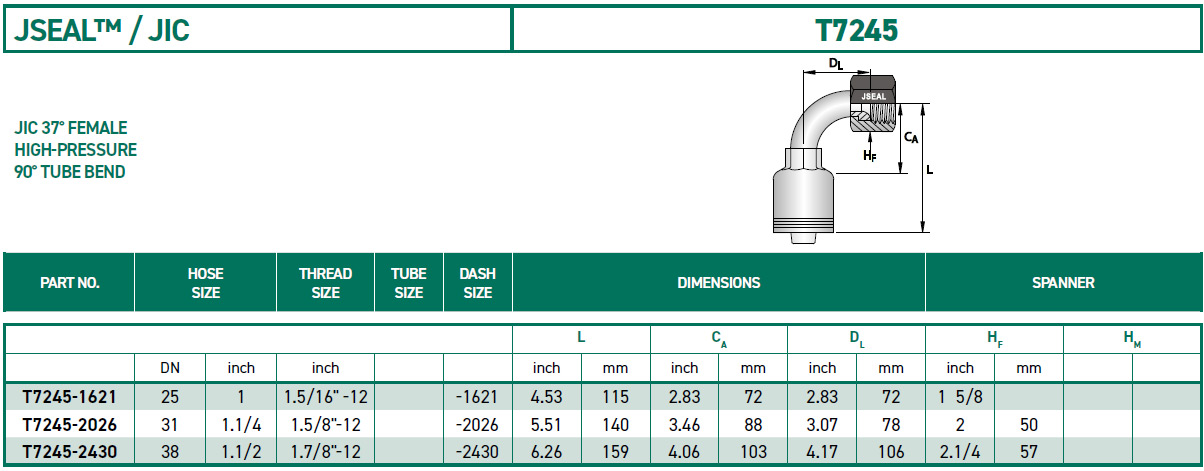

- T7245 – JSEAL™ / JIC Female HP 90º Tube Bend

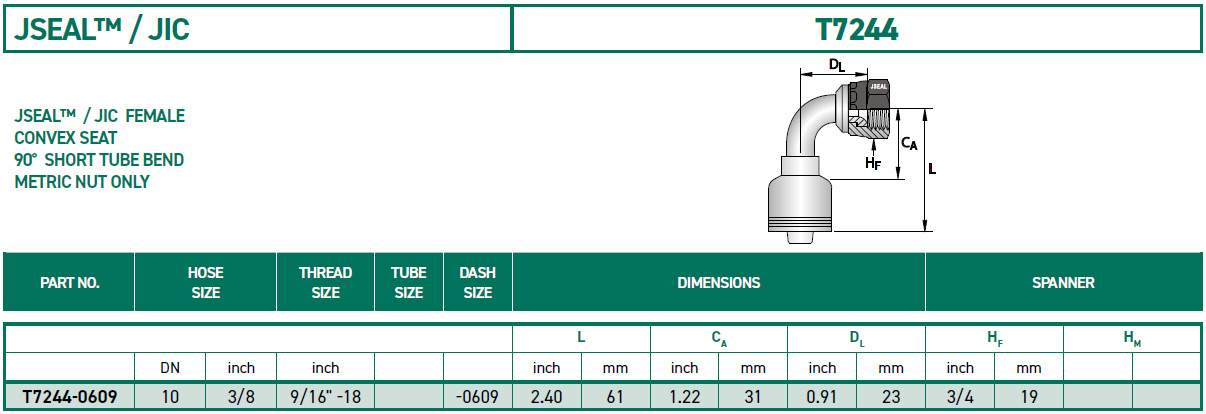

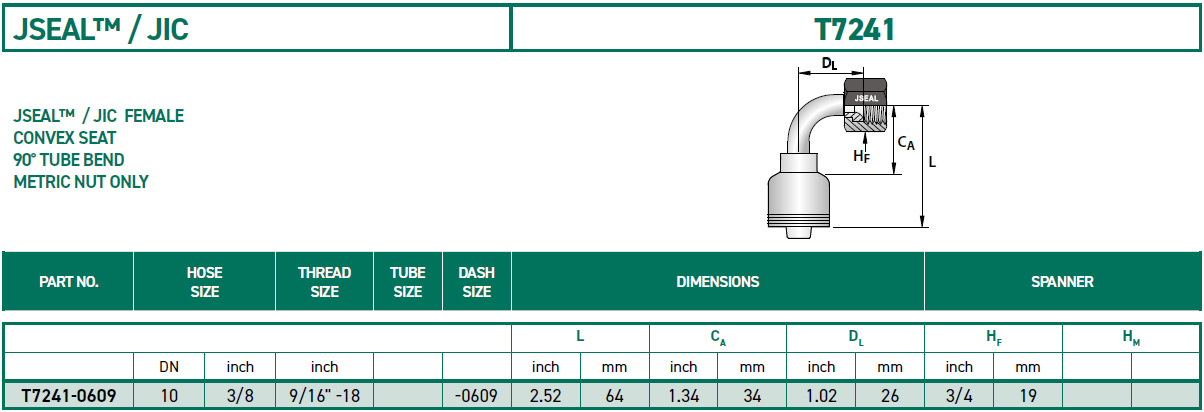

- T7243 – T7244 JSEAL™ / JIC Female 90º Short Tube Bend
- T7280 – JSEAL™ / JIC Female 90º Long Bend
