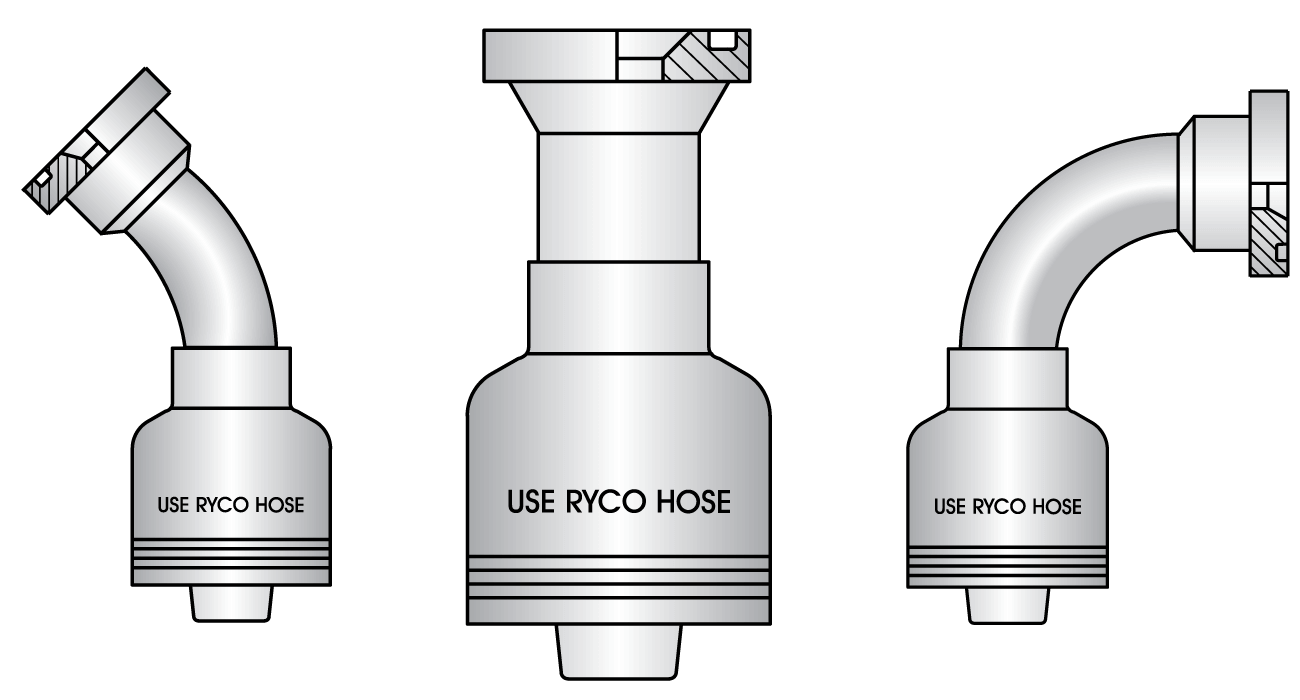

T7000 – Code Flange
High pressure modification of the Code 61 flange
Sealing Method: O Ring on flange face
Retained by bolts Thread form: UNC or Metric
Connection Standard: ISO 6162, SAE J518
Retained by bolts Thread form: UNC or Metric
Connection Standard: ISO 6162, SAE J518
Coupling Part Number & End Style:
- T7130 – CODE 61 Flange
- T7140 – CODE 61 Flange 22.5º Tube Bend
- T7150 – CODE 61 Flange 45º Tube Bend
- T7300 – CODE 61 Flange 60º Tube Bend
- T7290 – CODE 61 Flange 30º Tube Bend
- T7160 – CODE 61 Flange 67.5º Tube Bend
- T7170 – CODE 61 Flange 90º Tube Bend
- T7171 – CODE 61 Flange 90º Special Tube Bend
- T7172 – CODE 61 Flange 90º Special Tube Bend
- T7173 – CODE 61 Flange 90º Long Tube Bend
- T7174 – CODE 61 Flange 90º Special Tube Bend
- T7910 – CODE 61 Flange 110º Tube Bend
- T7330 – CODE 62 Flange
- T7440 – CODE 62 Flange 22.5º Tube Bend
- T7450 – CODE 62 Flange 30º Tube Bend
- T7350 – CODE 62 Flange 40º Tube Bend
- T7460 – CODE 62 Flange 60º Tube Bend
- T7360 – CODE 62 Flange 67.5º Tube Bend
- T7370 – CODE 62 Flange 90º Tube Bend
- T7930 – CODE 62 Flange 110º Tube Bend
- T7333 – CODE 62C Flange
- T7443 – CODE 62C Flange 22.5º Tube Bend
- T7444 – CODE 62C D-Ring Flange 22.5º Tube Bend
- T7453 – CODE 62C Flange 30º Tube Bend
- T7454 – CODE 62C D-Ring Flange 30º Tube Bend
- T7353 – CODE 62C Flange 45º Tube Bend
- T7354 – CODE 62C D-Ring Flange 45º Tube Bend
- T7463 – CODE 62C Flange 60º Tube Bend
- T7464 – CODE 62C D-Ring Flange 60º Tube Bend
- T7363 – CODE 62C Flange 67.5º Tube Bend
- T7364 – CODE 62C D-Ring Flange 67.5º Tube Bend
- T7373 – CODE 62C Flange 90º Tube Bend
- T7378 – CODE 62C Flange 90º Tube Bend
- T7374 – CODE 62C D-Ring Flange 110º Tube Bend
- T7933 – CODE 62C Flange 110º Tube Bend
