Additional information

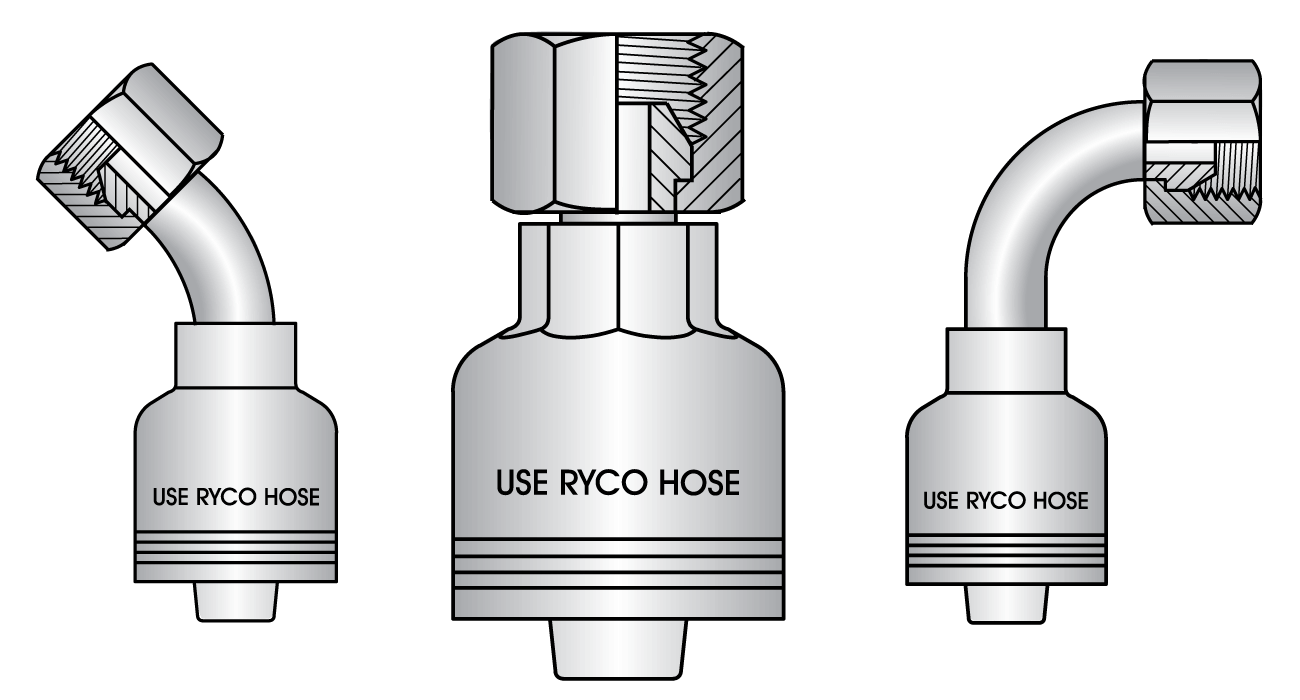

T7000 – BSPT / BSPP
BSPT: BRITISH STANDARD PIPE TAPER
Sealing Method: Tapered thread or 30° cone seat
Thread Form: 55°
Thread Standard: Whitworth thread ISO 7-1, BS 21, AS1722.1, DIN 3852-2 (Form C)
BSPP: BRITISH STANDARD PIPE PARALLEL
Sealing Method: 30° cone seat
Thread Form: 55°
Thread Standard: Whitworth ISO 228-1, BS 2779, AS 1722.2
Connection Standard: BS 5200, ISO 8434-6
Coupling Part Number & End Style:

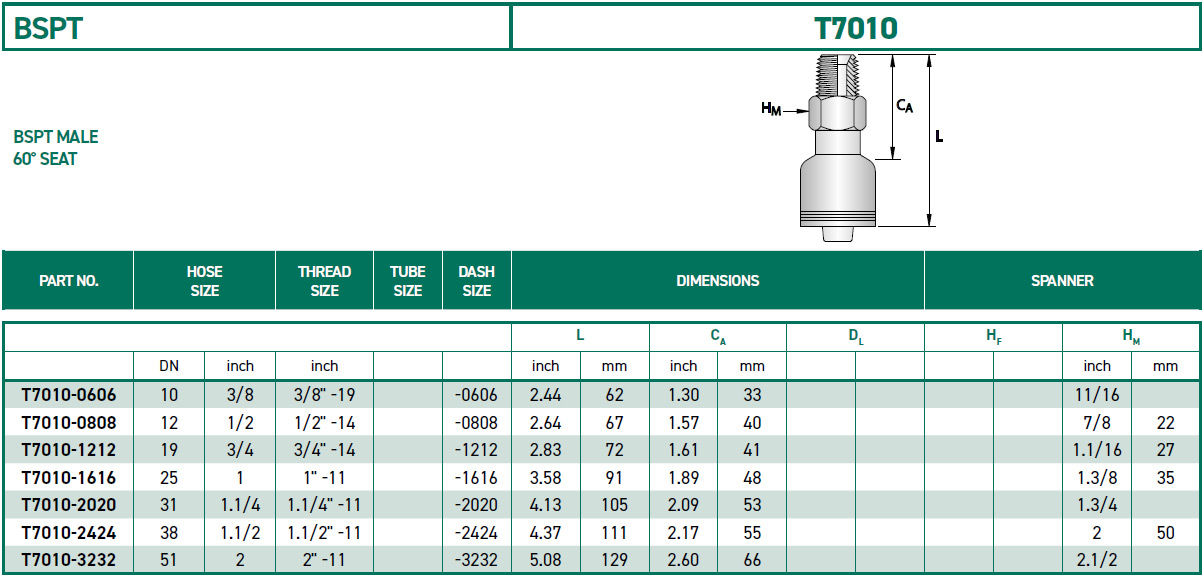

- T7010 – BSPT Male

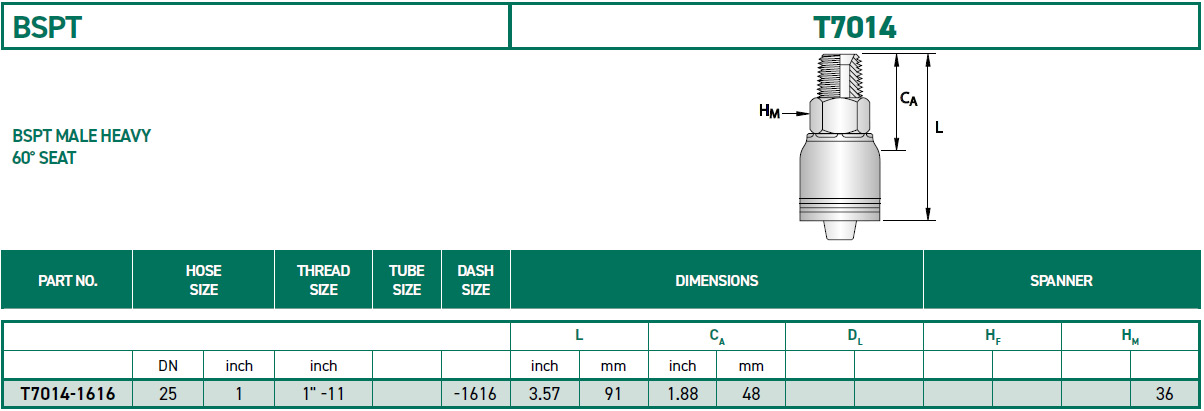

- T7014 – BSPT Male Heavy Duty
- T7013 – BSPP Male
- T7020 – BSPP Female
- T7022 – BSPP Female Heavy Duty
- T7060 – BSPP Female 45º Elbow
- T7050 – BSPP Female 90º Elbow
- T7270 – BSPP Female 45º Tube Bend
- T7260 – BSPP Female 90º Tube Bend
- T7210 – BSPP Female 90º Long Bend
- T7027 – BSPO Female
- T7057 – BSPO Female 90º Elbow
- T7277 – BSPO Female 45º Tube Bend
- T7267 – BSPO Female 90º Tube Bend
