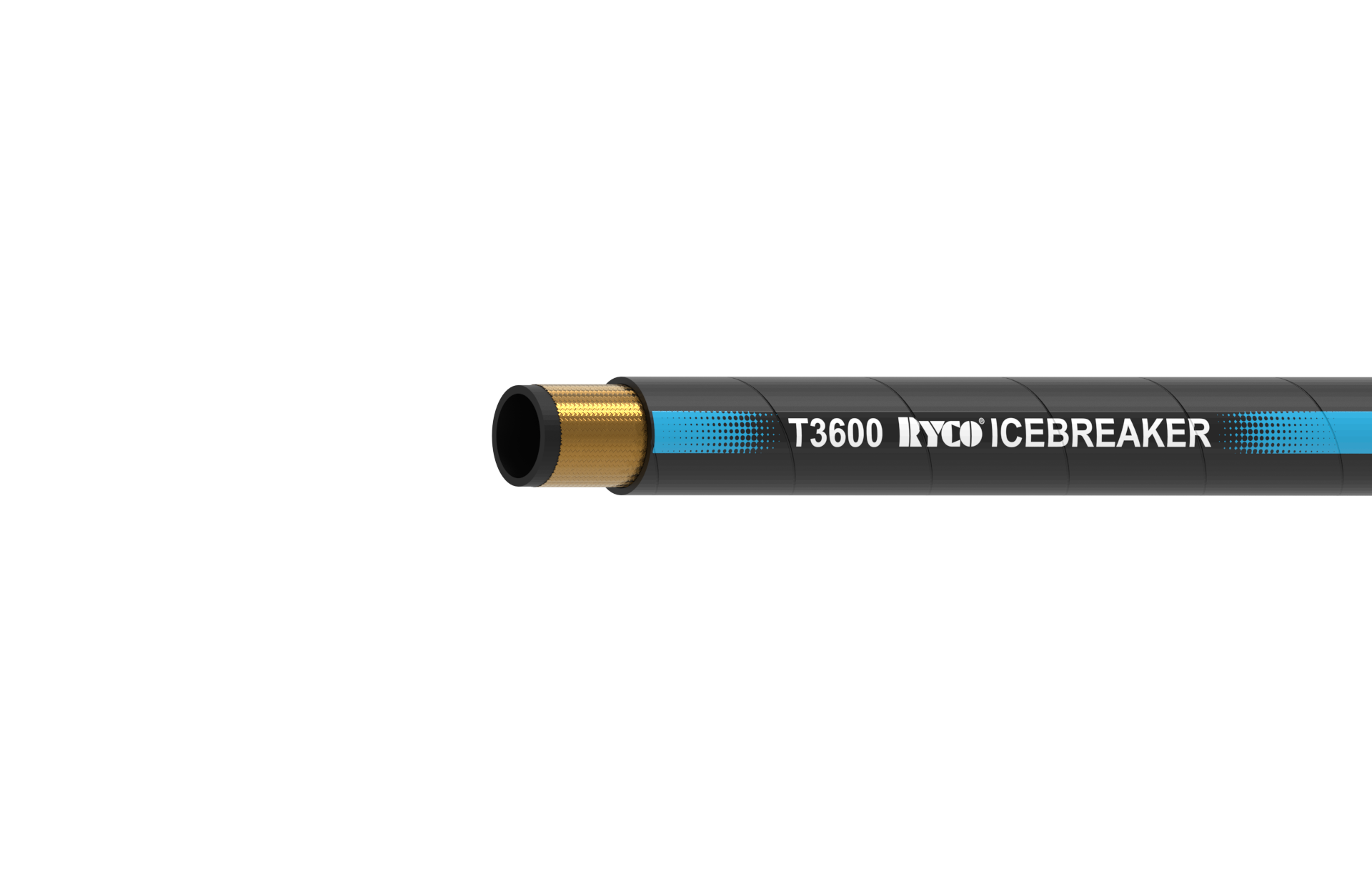

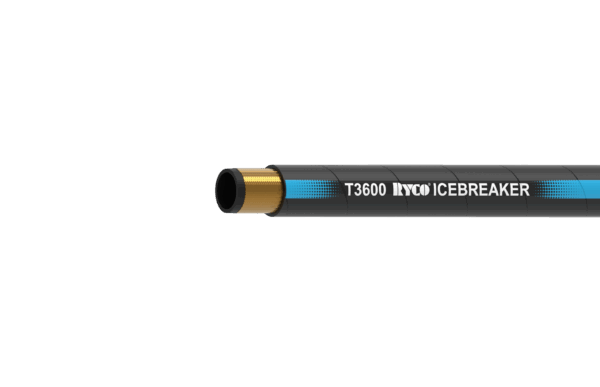

T3600C RYCO ICEBREAKER
Additional information
RECOMMENDED FOR:
High pressure hydraulic oil lines in applications where low temperature environmental conditions exist.
PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
ISO 18752-BC.
TUBE:
Black, specially formulated oil resistant synthetic rubber.
REINFORCEMENT:
One braid (-04 to -06 size) or two braids (-08 to -16 size) of high tensile wire.
COVER:
Black, oil resistant and abrasion resistant synthetic rubber. No skiving required with T2000 Series Crimp Couplings.
FEATURES:
Extremely Flexible. Minimum Bend Radius 25% less than published SAE 100R17 Minimum Bend Radius. Tested to 500,000 cycles. Constant pressure 250 bar / 3625 psi in all sizes for easy system design and hose selection. Small bend radius and compact dimensions are advantages in installations.
TEMPERATURE RANGE:
From -60°C to +100°C (-76°F to +212°F).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
THIRD PARTY APPROVALS:
ABS, DNV-GL, LR, MED, USCG, GOST-R, BV, RINA and KR.
COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series (sizes -04 to -16).
| T3600S – SLIDER COMPACT ISOBARIC HOSE | MATCHED COUPLINGS SERIES | ||
|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | |
| HOSE | DN | DASH | NON-SKIVE |
| T3604C | 6 | -04 | T2000 |
| T3605C | 8 | -05 | T2000 |
| T3606C | 10 | -06 | T2000 |
| T3608C | 12 | -08 | T2000 |
| T3610C | 16 | -10 | T2000 |
| T3612C | 19 | -12 | T2000 |
| T3616C | 25 | -16 | T2000 |
