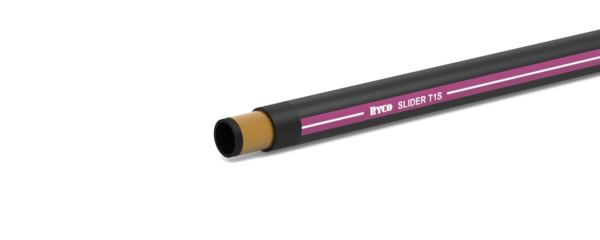

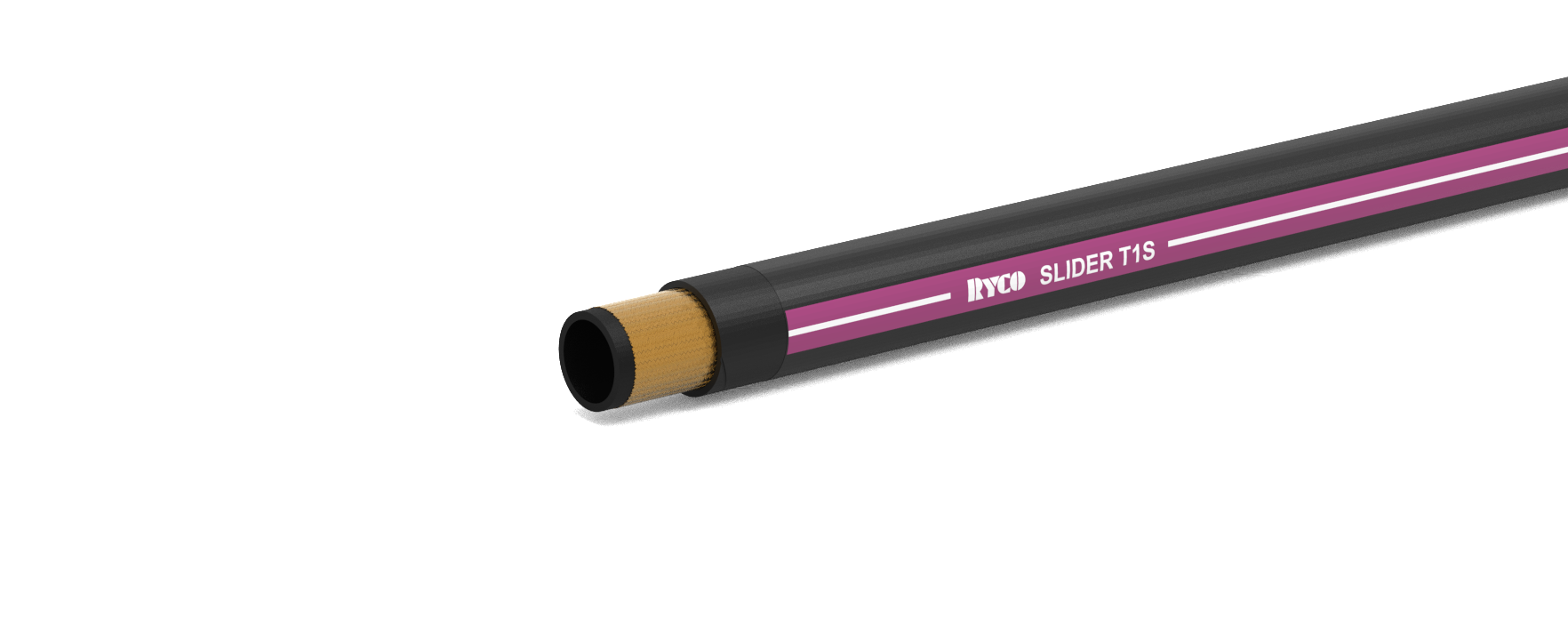

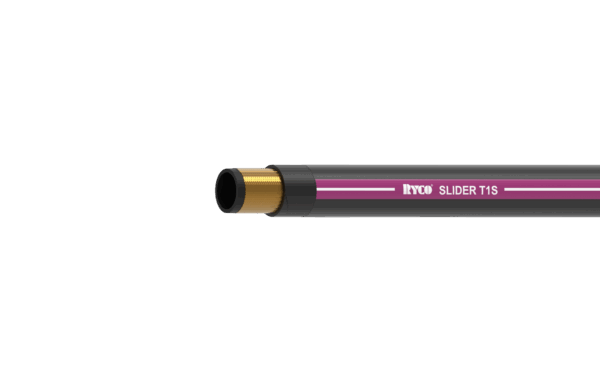

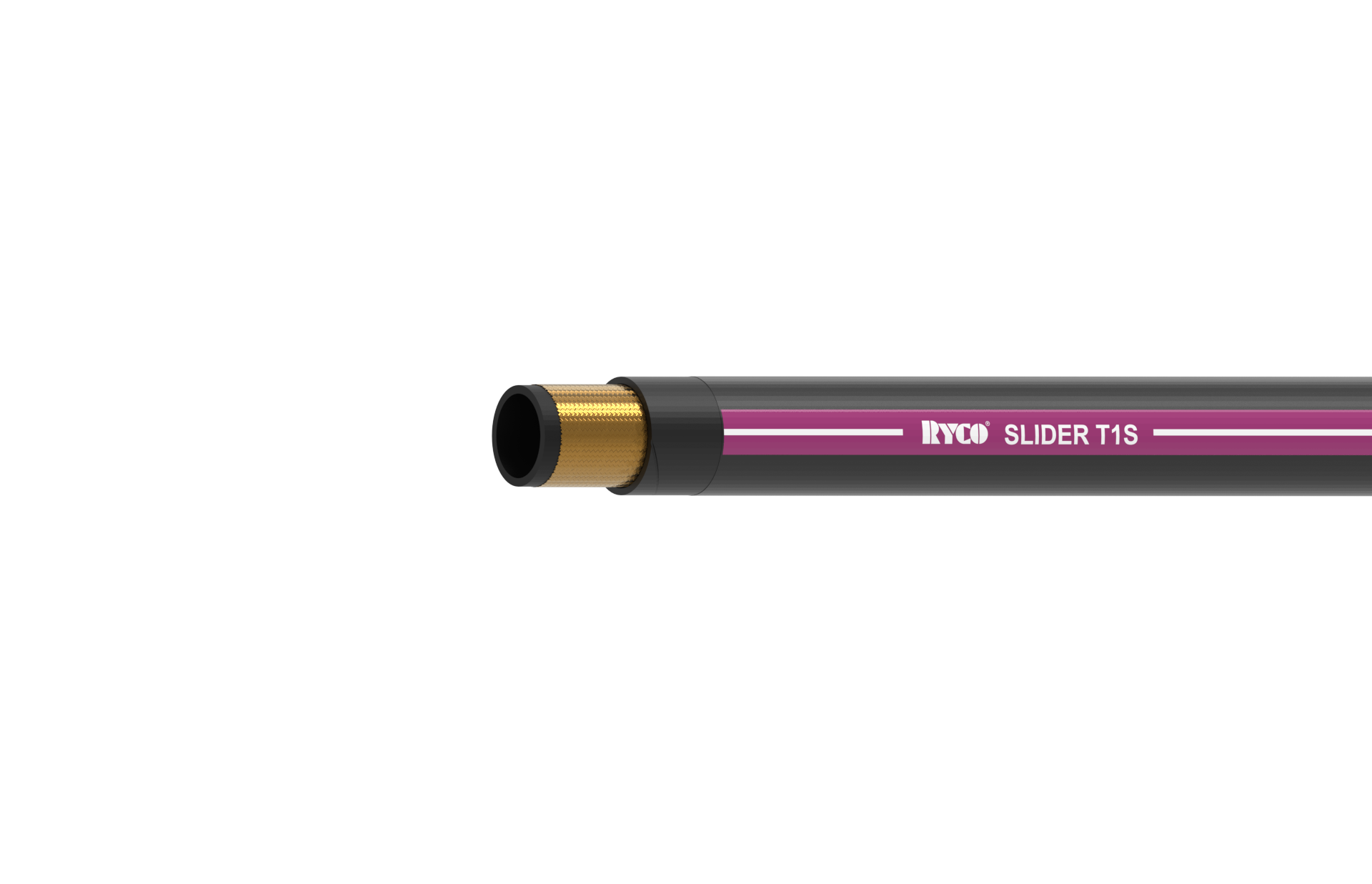

| T1S – SLIDER NON-SKIVE HOSE | MATCHED COUPLINGS SERIES | ||
|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | |
| HOSE | DN | DASH | NON-SKIVE |
| T13S | 5 | -03 | T2000 |
| T14S | 6 | -04 | T2000 |
| T15S | 8 | -05 | T2000 |
| T16S | 10 | -06 | T2000 |
| T18S | 12 | -08 | T2000 |
| T110S | 16 | -10 | T2000 |
| T112S | 19 | -12 | T2000 |
| T116S | 25 | -16 | T2000 |
| T120S | 31 | -20 | T2000 |
| T124S | 38 | -24 | T2000 |
| T132S | 51 | -32 | T2000 |
Additional information
T1S Extremely Abrasion Resistant
RECOMMENDED FOR:
High pressure hydraulic oil lines.
PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
AS 3791 100R1AT, DIN 20022-1SN, EN 853 Type 1SN, ISO 1436 Types R1AT & 1SN, SAE 100R1AT.
TUBE:
Black, oil resistant synthetic rubber.
REINFORCEMENT:
One braid of high tensile steel wire.
COVER:
SLIDER Black, oil and extremely abrasion resistant synthetic rubber sheathed with a layer of extremely abrasion resistant polyethylene. Flame Resistant, MSHA compliant. Highly visible layline branding for easy and permanent identification. No skiving required with T2000 Series Crimp Couplings.
MSHA – FLAME RESISTANCE:
SLIDER complies with Flame Resistant requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.
TEMPERATURE RANGE:
From -40°C to +100°C (-40°F to +212°F).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
THIRD PARTY APPROVALS:
ABS, DNV-GL, LR, MED, USCG, GOST-R, BV, RINA, KR & MA-KA.
COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series (sizes -03 to -32).
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
