SW

RYCO SHOCKWAVE SW

VERY HIGH PRESSURE
WATERBLAST

RECOMMENDED FOR:
Very High Pressure waterblast hose for the cleaning and preparation of marine surfaces, runway and swimming pool cleaning, and paint removal.
DO NOT USE with Steam.

TUBE:
Oil and water resistant synthetic rubber.

REINFORCEMENT:
Four alternating layers of spiralled high tensile steel wire.

COVER:
Oil, water and ozone resistant synthetic rubber. The cover is formulated to resist marking. Internal and External skiving required with TW4000 Series Interlok Crimp Couplings.

FEATURES:
Exceeds ISO 7751 performance requirements. Meets specifications EN 1829-2 (impulse) and AS/NZS 4233.2. Highly abrasion resistant cover.

TEMPERATURE RANGE:
Continuous service from -20°C to +80°C (-4°F to +176°F).
Intermittent service to +100°C (+212°F).

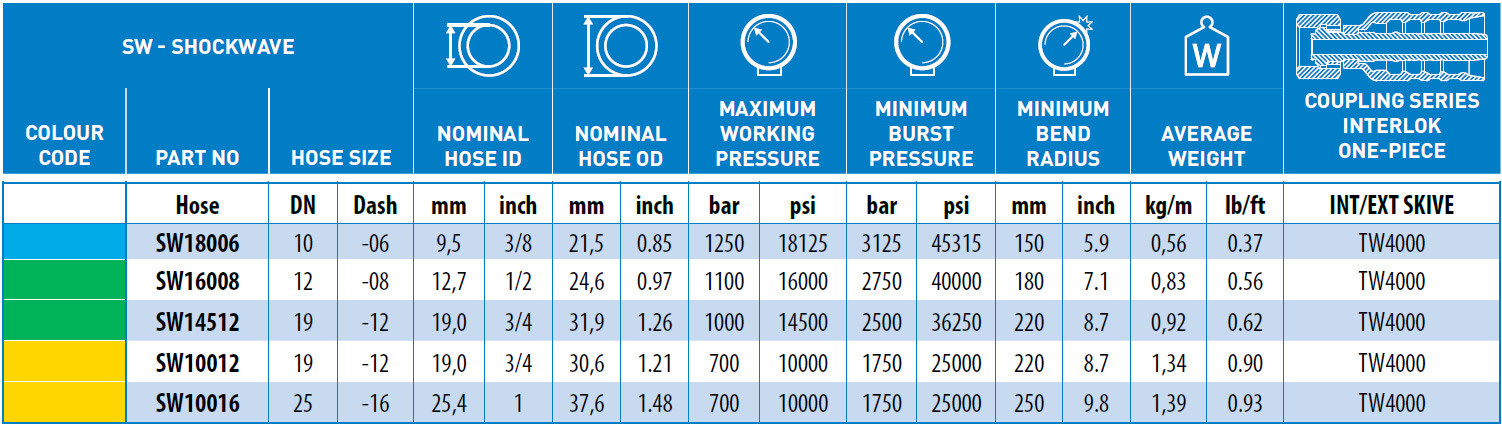

WORKING PRESSURE:
Maximum working pressures are based on 2.5:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:
INTERLOK SKIVE ONE-PIECE CRIMP

A MEMBER OF:

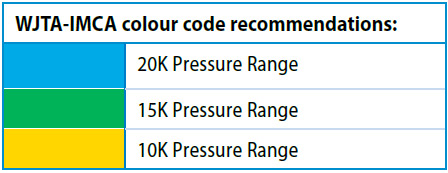

The Waterjet Technology Association (WJTA) and Industrial & Municipal Cleaning Association (IMCA) The Australasian High Pressure Water Jetting Association.

Refer to the Ryco Crimp App for the latest crimping parameters.

DISCLAIMER

We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
