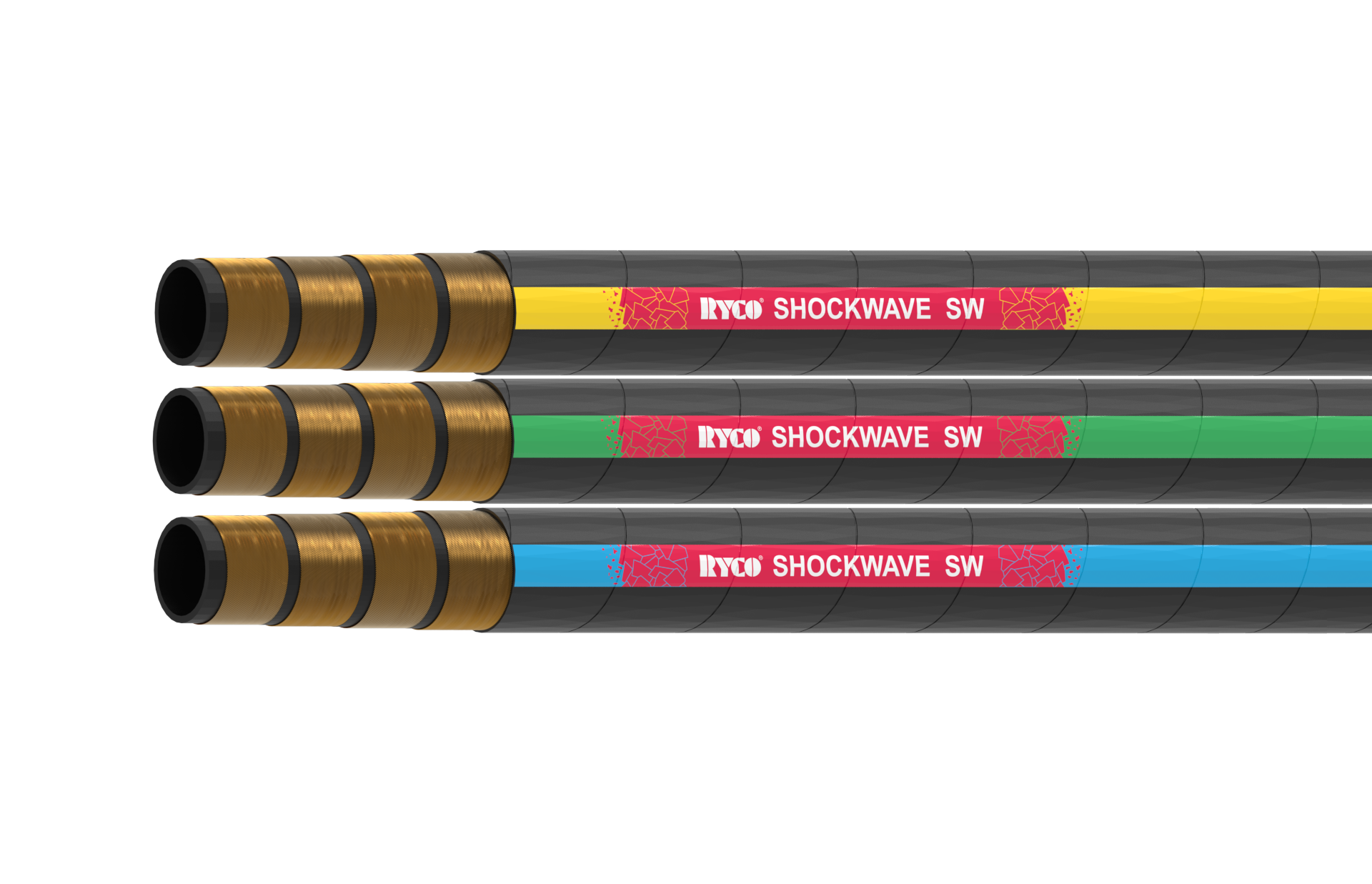

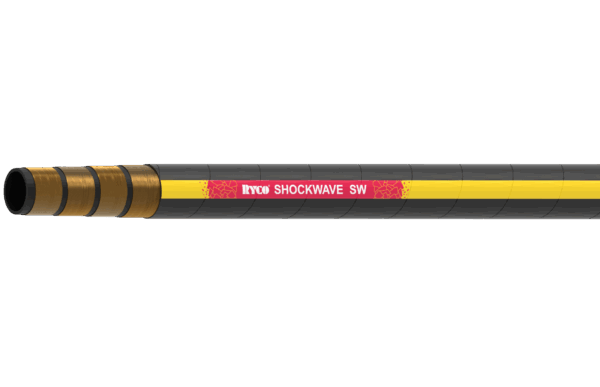

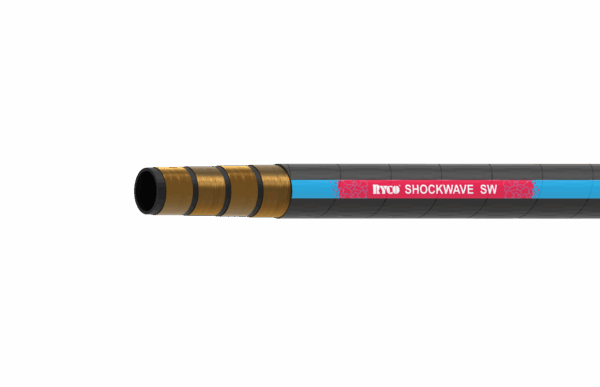

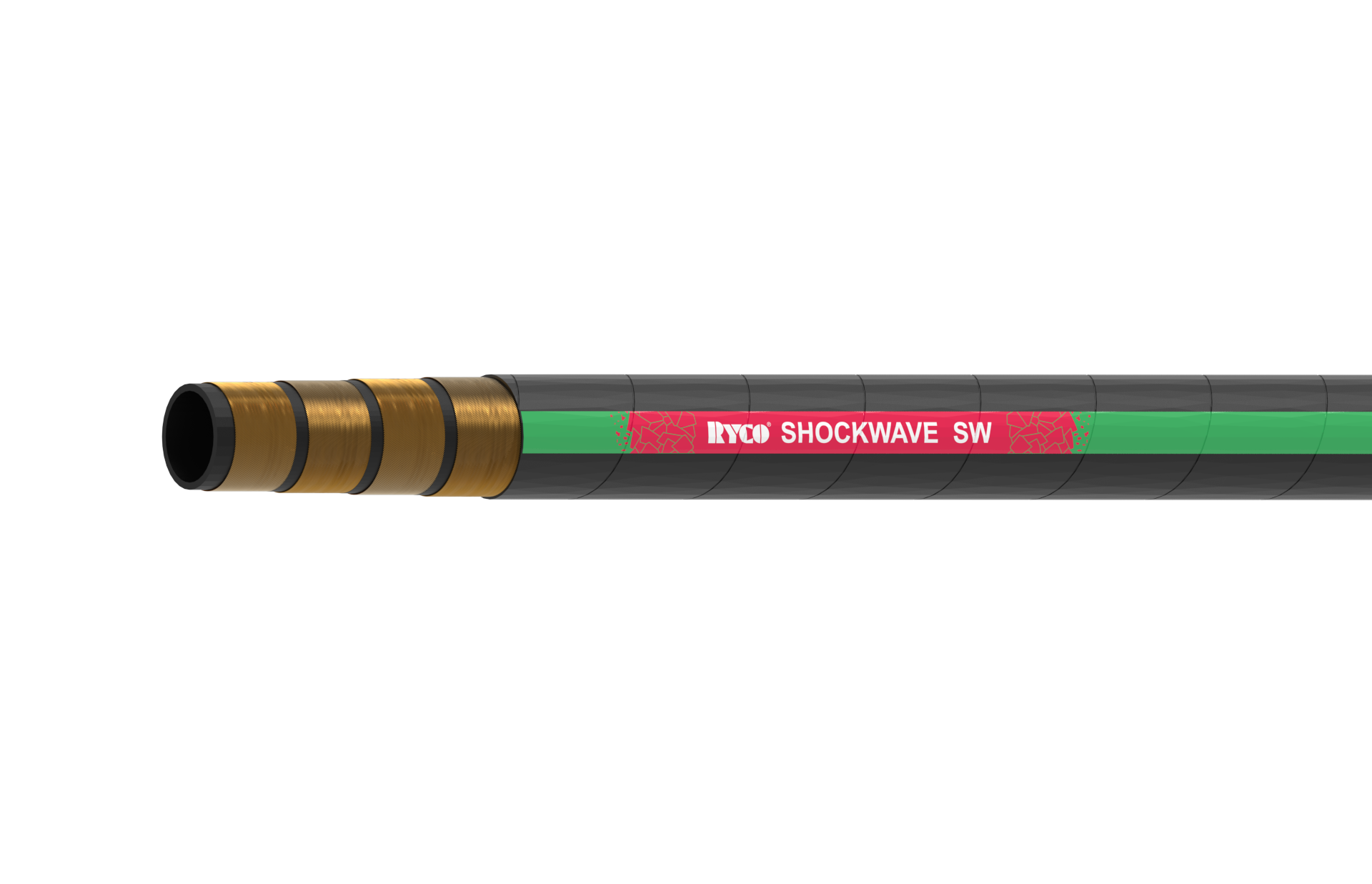

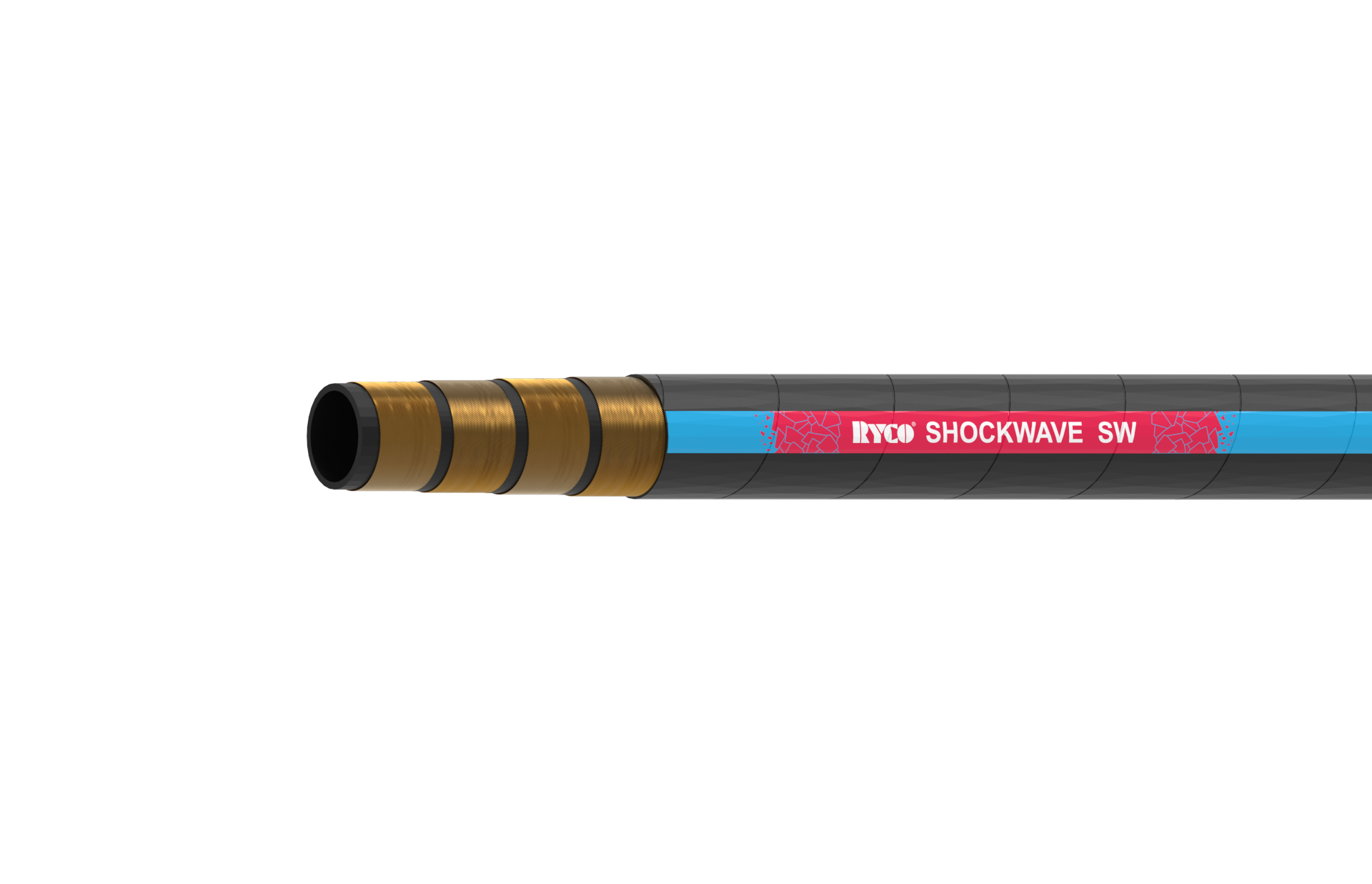

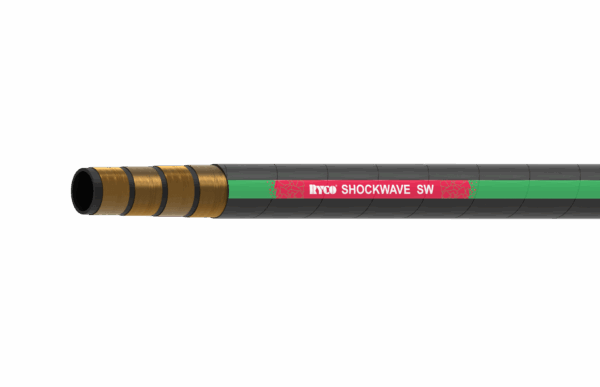

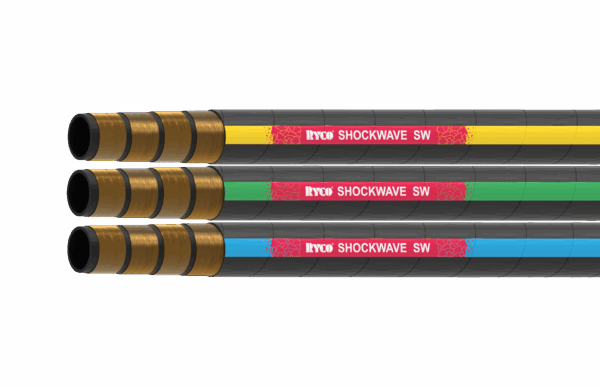

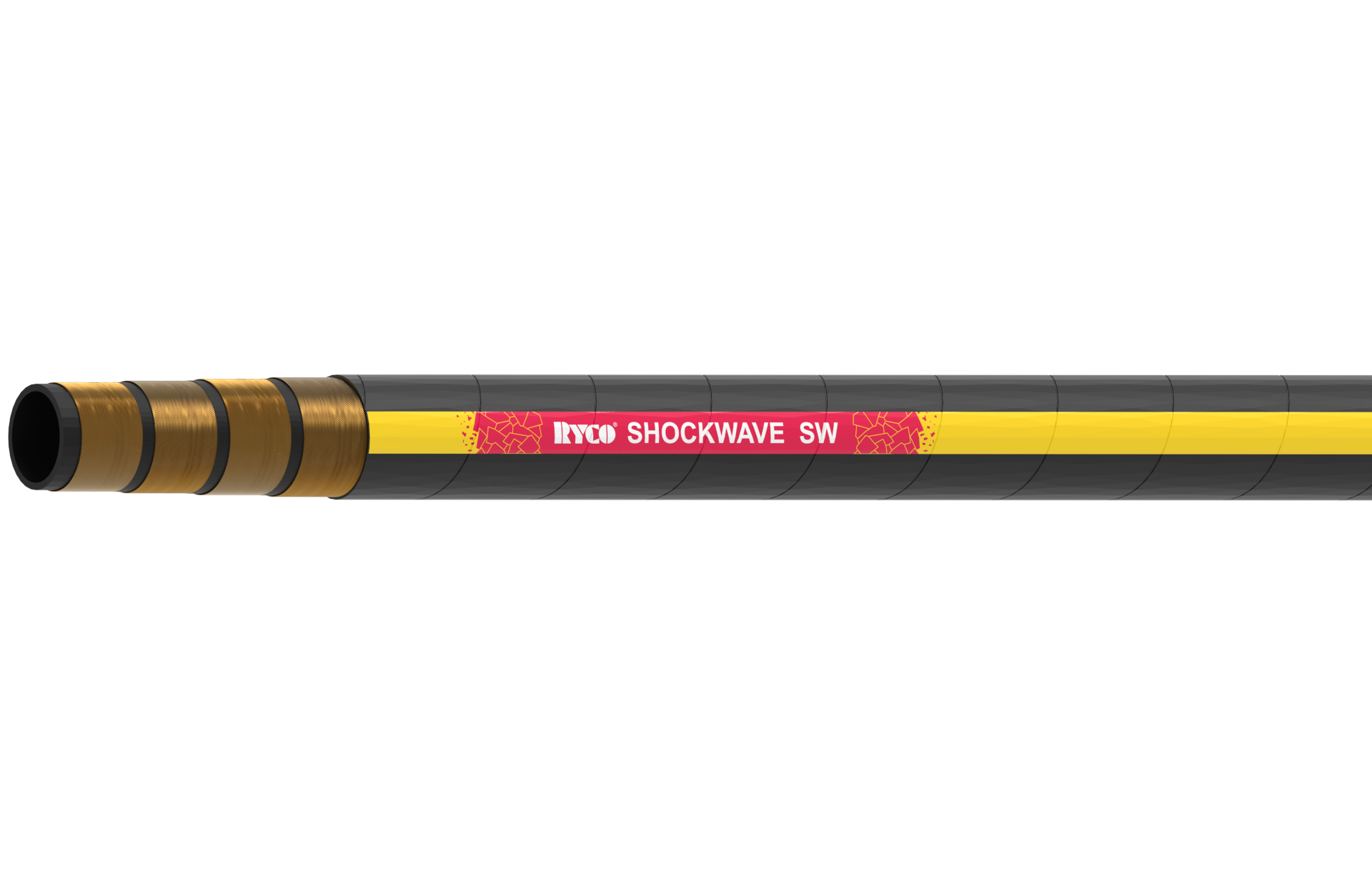

SW SHOCKWAVE Very High Pressure Waterblast Hose
Additional information
RECOMMENDED FOR:
Very High Pressure waterblast hose for the cleaning and preparation of marine surfaces, runway and swimming pool cleaning, and paint removal.
DO NOT USE with Steam.
TUBE:
Oil and water resistant synthetic rubber.
REINFORCEMENT:
Four alternating layers of spiralled high tensile steel wire.
COVER:
Oil, water and ozone resistant synthetic rubber. The cover is formulated to resist marking. Internal and External skiving required with TW4000 Series Interlok Crimp Couplings.
FEATURES:
Exceeds ISO 7751 performance requirements. Meets specifications EN 1829-2 (impulse) and AS/NZS 4233.2. Highly abrasion resistant cover.
TEMPERATURE RANGE:
Continuous service from -20°C to +80°C (-4°F to +176°F).
Intermittent service to +100°C (+212°F).
WORKING PRESSURE:
Maximum working pressures are based on 2.5:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
INTERLOK SKIVE ONE-PIECE CRIMP
A MEMBER OF:
The Waterjet Technology Association (WJTA) and Industrial & Municipal Cleaning Association (IMCA) The Australasian High Pressure Water Jetting Association.
| SW SHOCKWAVE – VERY HIGH PRESSURE HOSE | MATCHED COUPLINGS SERIES | |||
|---|---|---|---|---|
| COLOUR CODE | PART NO | HOSE SIZE | ONE PIECE | |
| HOSE | DN | DASH | NON-SKIVE | |
| SW18006 | 10 | -06 | TW4000 | |
| SW16008 | 12 | -08 | TW4000 | |
| SW14512 | 16 | -10 | TW4000 | |
| SW10012 | 19 | -12 | TW4000 | |
| SW10016 | 25 | -16 | TW4000 | |
WJTA-IMCA colour code recommendations:
| 20K Pressure Range | |
| 15K Pressure Range | |
| 10K Pressure Range |
