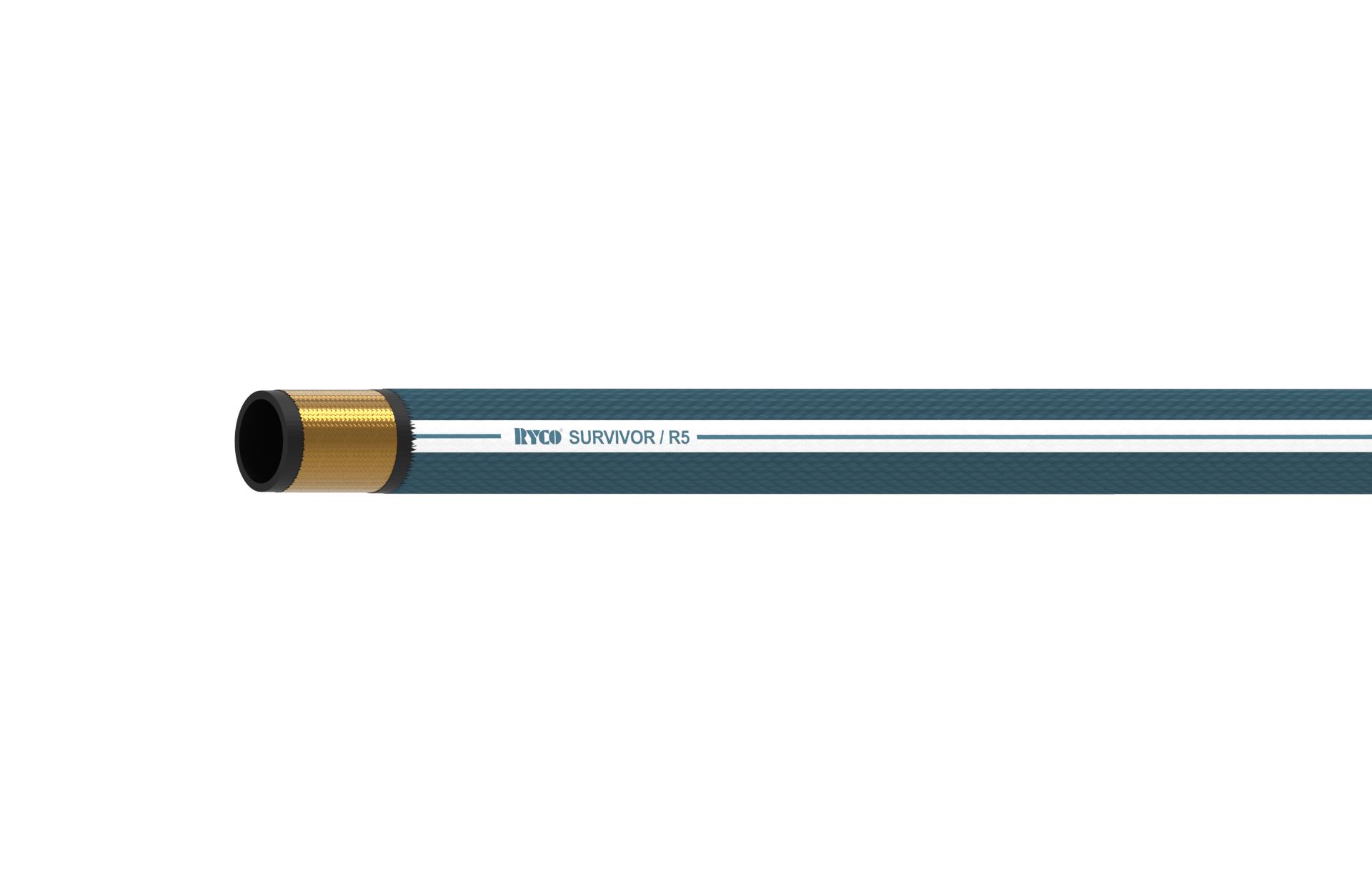

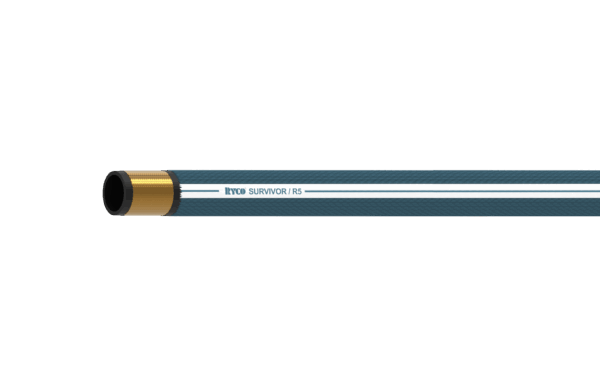

SURVIVOR/5

RECOMMENDED FOR:

Medium pressure hydraulic oil applications where pressure or temperature requirements exceed the performance requirements of SAE 100R5. May be used with compressed air if cover of hose is perforated (pinpricked) and additional Safety Devices are used. Refer to Fluid Compatibility Chart for applicable fluids for SURVIVOR range.

PERFORMANCE:

Meets or Exceeds the Performance Requirements of: SAE J517-100R5, AS 3791 100R5, SAE J1402 Type AII.

TUBE:

Black, synthetic rubber, specifically compounded for high temperature resistance.

REINFORCEMENT:

One braid of high tensile steel wire.

COVER:

Blue, polyester yarn braid.

FEATURES:

High temperature and long lasting aging resistance. Outstanding ozone resistance. Superior weather and UV resistance. No-Skive couplings.

FLAME RESISTANCE AND ANTI-STATIC:

SURVIVOR complies with Flame Resistant and Electrical Resistance (Anti-Static) requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B and 13A. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health

Administration.

TEMPERATURE RANGE:

From -46°C to +135°C (-50°F to +275°F); Peaks of 150°C

(300°F).

WORKING PRESSURE:

Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:

NON-SKIVE ONE-PIECE CRIMP

T2000 Series

FIELD ATTACHABLE NON-SKIVE

V000 Series
