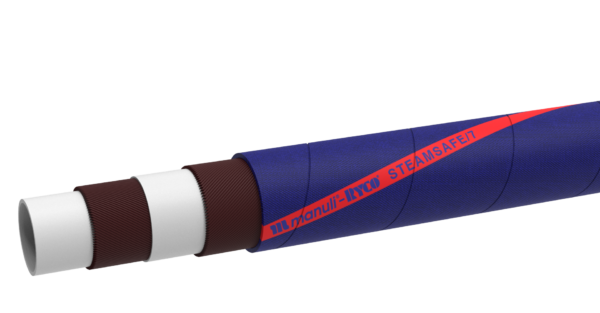

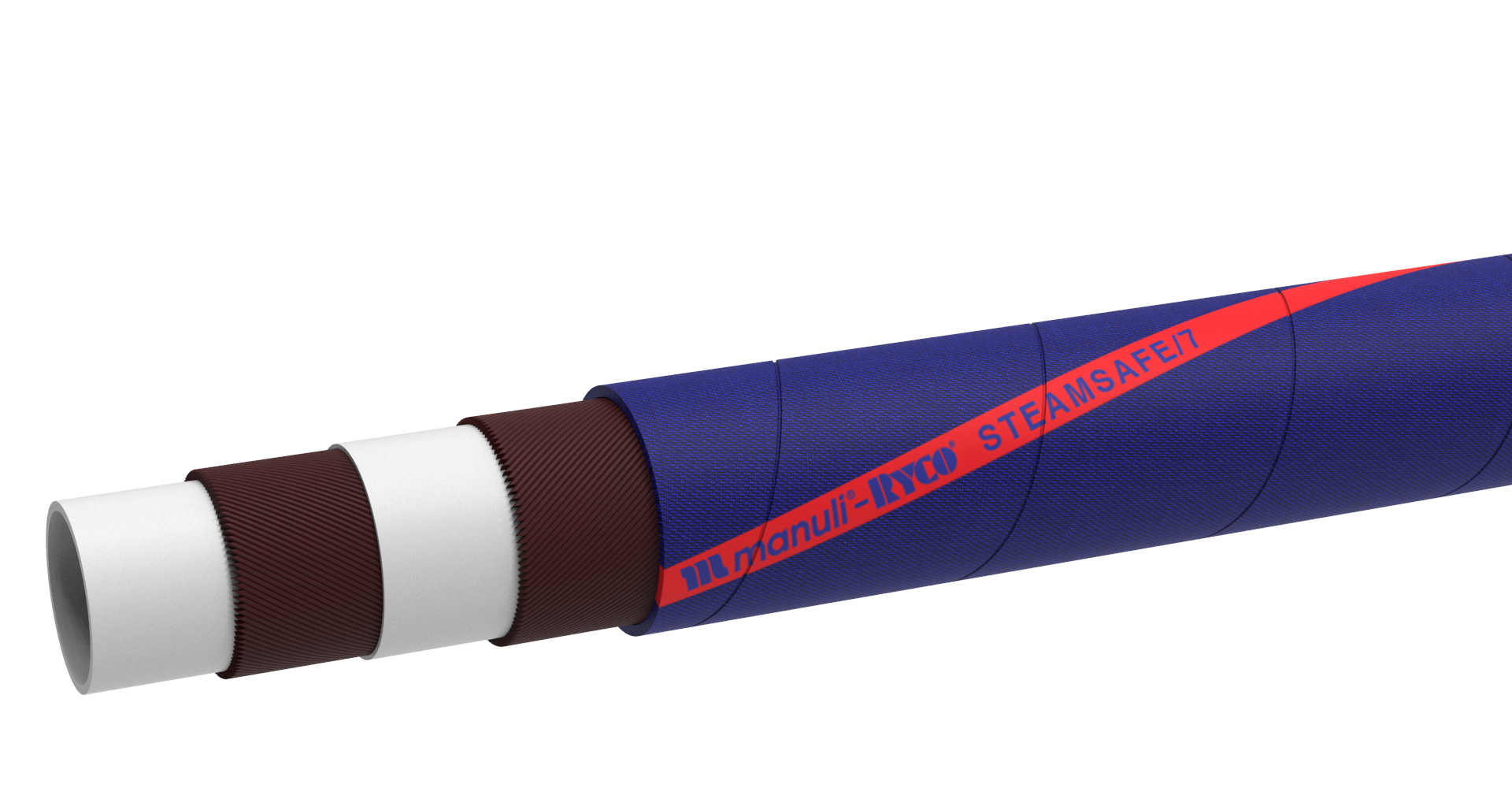

STEAM/7
Additional information
STEAM/7
Steam & vapor hose for food industry cleaning.
TUBE:
White EPM rubber.
REINFORCEMENT:
High tensile synthetic cord.
COVER:
Blue synthetic EPDM rubber, abrasion, weathering and ozone resistant. Cover is pin-pricked.
KEY FEATURES:
- Hardwall delivery structure.
- Compact, lightweight and flexible.
- Highly robust hose structure.
- Long lasting in severe applications.
- Long length assemblies available – Max length: 40m.
APPLICATION & FLUIDS:
Potable hot water mixed with steam and detergent suitable for washdown and sterilization in the food industry.
TEMPERATURE RANGE:
From -40°C to + 170°C (-40°F to +338°F).
WORKING PRESSURE:
Maximum working pressures are based on 10:1 safety factor (maximum working pressure to minimum burst pressure).
APPLICABLE SPECS:
FDA Title 21, art. 177.2600 for aqueous foods.
COUPLINGS:
Market Fittings.
| STEAM/7 | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| ST7 | 10 | 3/8″ | MARKET FITTINGS |
| ST8 | 12 | 1/2″ | MARKET FITTINGS |
| ST10 | 16 | 5/8″ | MARKET FITTINGS |
| ST12 | 19 | 3/4″ | MARKET FITTINGS |
| ST16 | 25 | 1″ | MARKET FITTINGS |
