STEAM/18
Additional information
STEAM/18

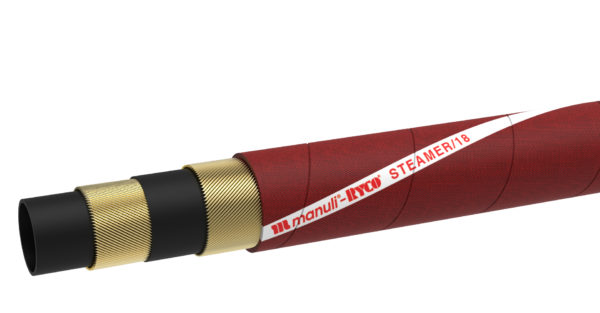

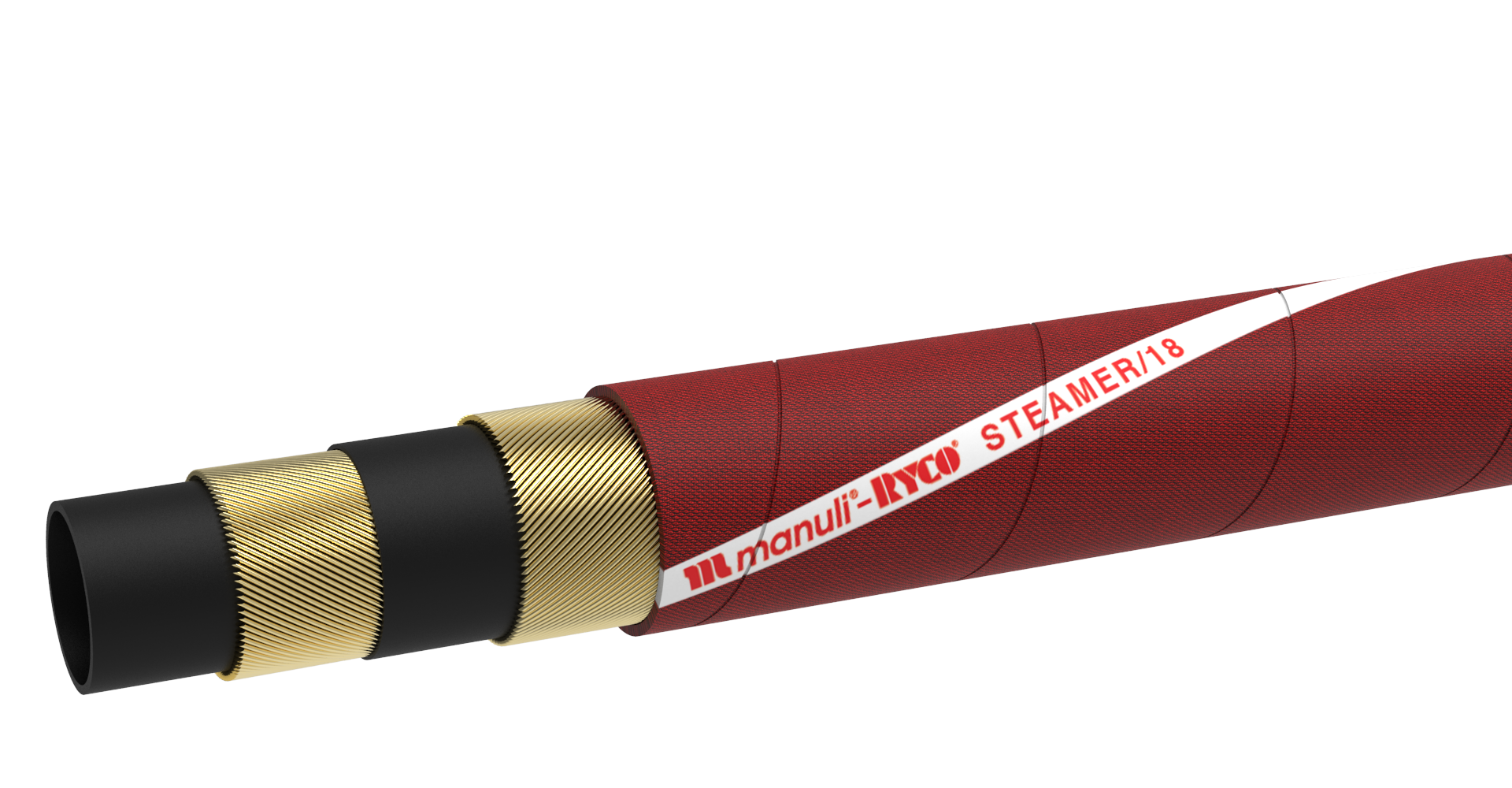

Steam & vapour hose.
TUBE:
Black EPM rubber .
REINFORCEMENT:
High tensile steel reinforcement.
COVER:
Red synthetic EPM pink-pricked rubber, abrasion, weathering and ozone resistant.
KEY FEATURES:
- Hardwall delivery structure.
- Compact, lightweight and flexible.
- Highly robust hose structure.
- Long lasting in severe applications.
- Long length assemblies available – Max length: 40m (DN12 to
- DN16); 61m (DN19 to DN102).
APPLICATION & FLUIDS:
Delivery of high pressure saturated steam.
Suitable for steam cleaning of tanks and pipelines in the petrochemical industry.
TEMPERATURE RANGE:
From -40°C to + 210°C (-40°F to +410°F).
WORKING PRESSURE:
Maximum working pressures are based on 10:1 safety factor (maximum working pressure to minimum burst pressure).
APPLICABLE SPECS:
ISO 6134 – Type 2 Class A Grade M.
COUPLINGS:
Market Fittings.
| STEAM/18 | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| ST188 | 12 | 1/2″ | MARKET FITTINGS |
| ST1810 | 16 | 5/8″ | MARKET FITTINGS |
| ST1812 | 19 | 3/4″ | MARKET FITTINGS |
| ST1816 | 25 | 1″ | MARKET FITTINGS |
| ST1820 | 31 | 1.1/4″ | MARKET FITTINGS |
| ST1824 | 38 | 1.1/2″ | MARKET FITTINGS |
| ST1832 | 51 | 2″ | MARKET FITTINGS |
| ST1840 | 63 | 2.1/2″ | MARKET FITTINGS |
| ST1848 | 76 | 3″ | MARKET FITTINGS |
| ST1864 | 102 | 4″ | MARKET FITTINGS |
