SNOW GUNS/60
Additional information
SNOW GUNS/60

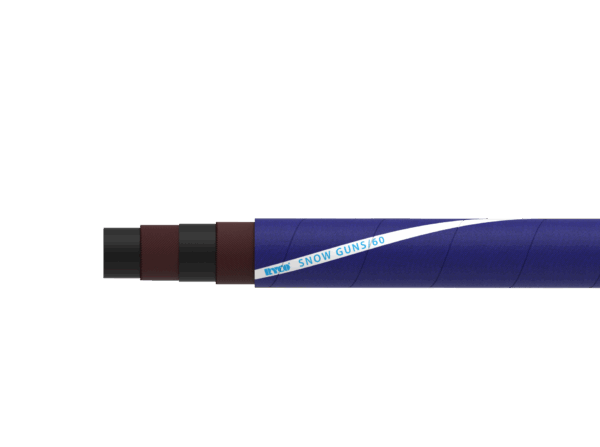

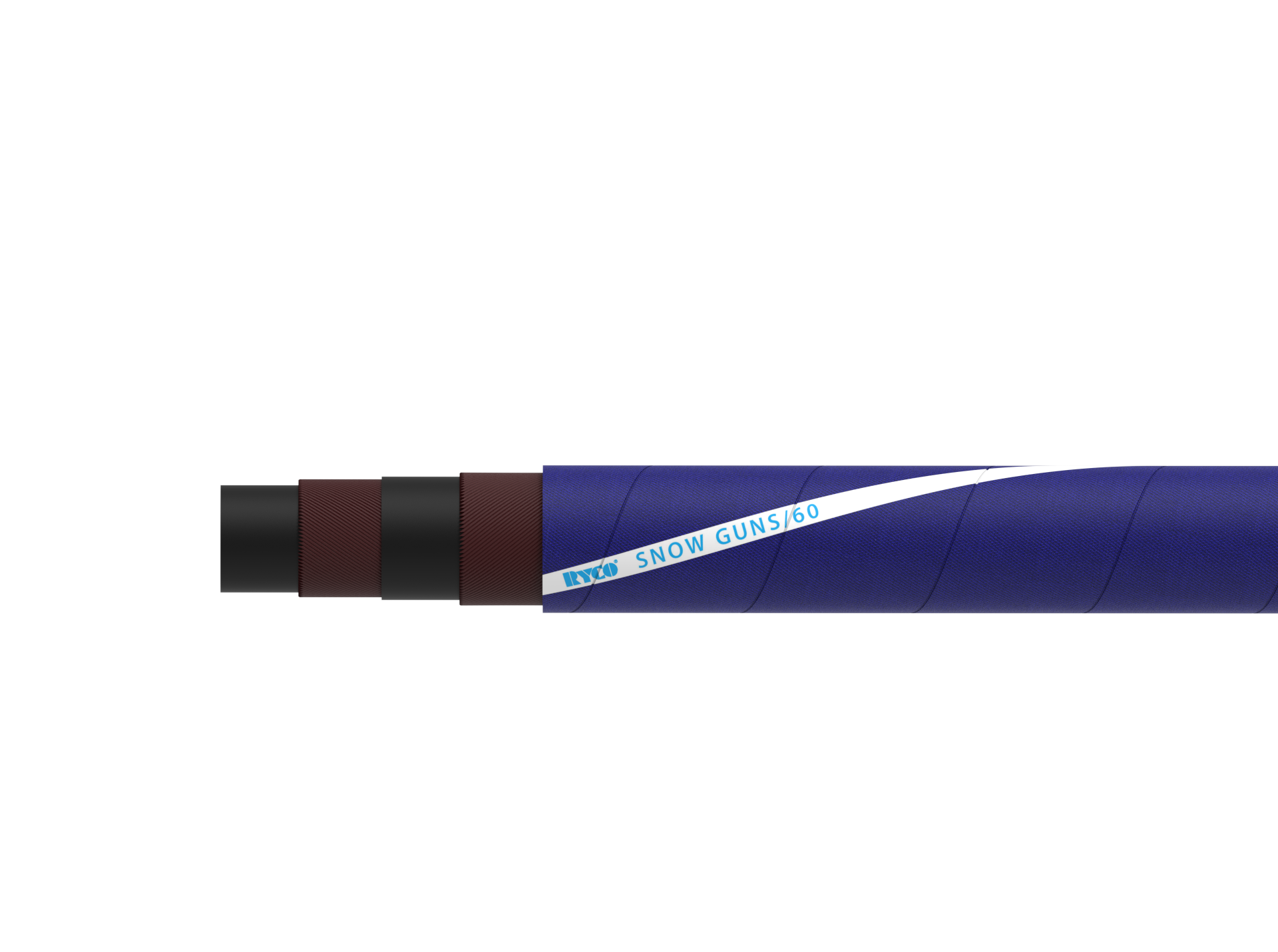

Water hose for snow guns.
TUBE:
Black EPDM rubber.
REINFORCEMENT:
High tensile synthetic cord.
COVER:
Blue, synthetic EPDM rubber; abrasion, weathering and ozone resistant.
KEY FEATURES:
- Hardwall delivery structure.
- Compact, lightweight and flexible.
- Highly robust hose structure.
- Long lasting in severe applications.
- Long length assemblies available – Max length: 60m
APPLICATION & FLUIDS:
Delivery hose for water in snow gun equipment.
TEMPERATURE RANGE:
From -40°C to + 120°C (-40°F to +248°F).
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.
| SNOW GUNS/60 | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| SG6016 | 25 | 1″ | SR+D08000 SERIES |
| SG6020 | 31 | 1.1/4″ | SR+D08000 SERIES |
| SG6024 | 38 | 1.1/2″ | SR+D08000 SERIES |
