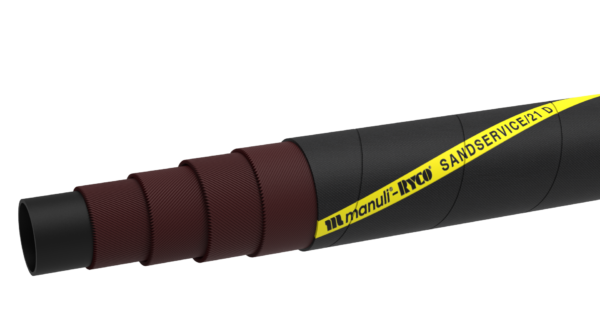

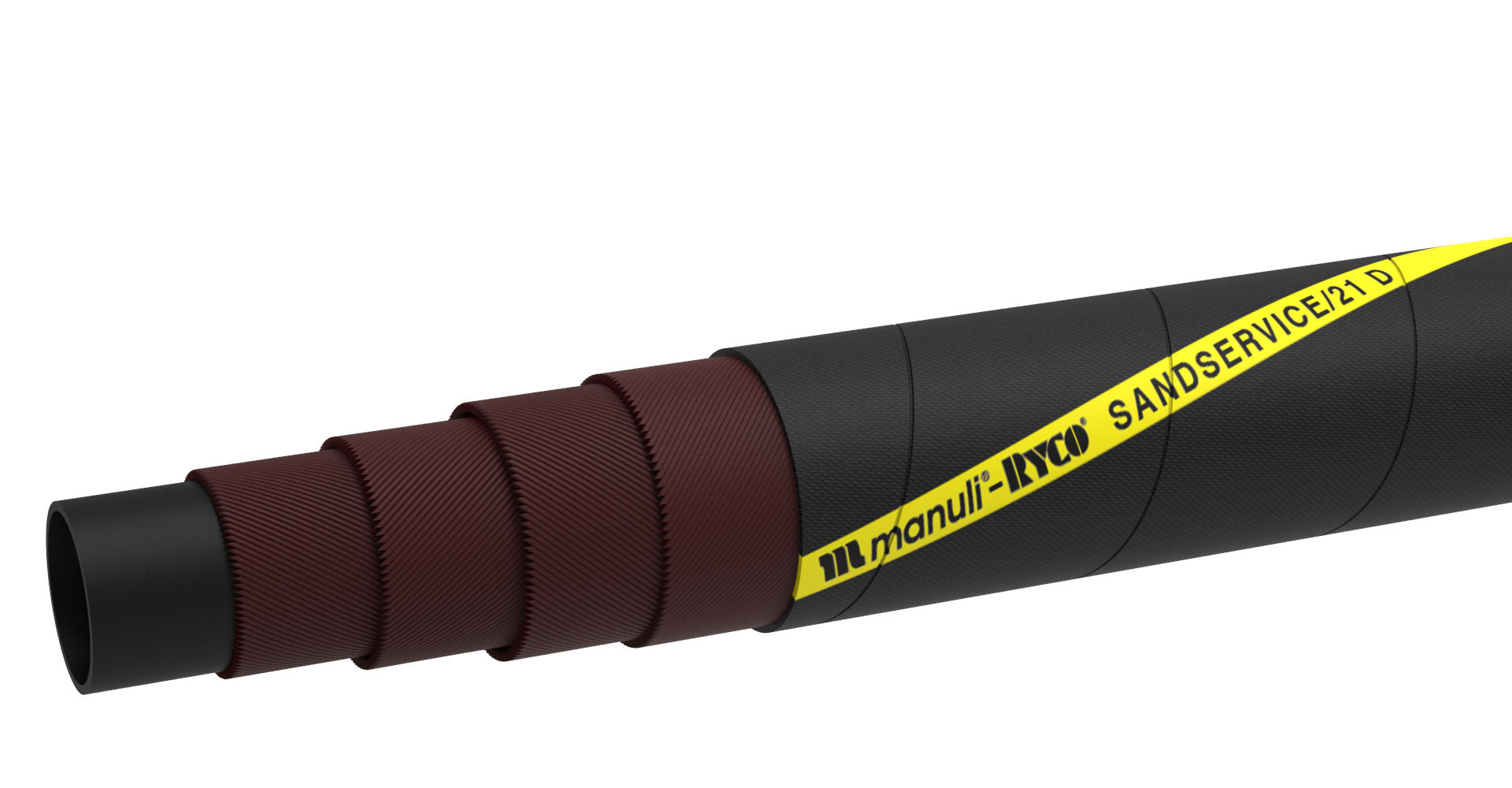

SANDSERVICE/21 D

Additional information

Technical Specifications:

Sandblasting or transfer of highly abrasive materials such as grit and gravel.

WORKING PRESSURE: 21 bar / 300 psi.

TUBE: Black, NR/ SBR rubber; abrasion resistant thick tube.

REINFORCEMENT: High-tensile synthetic cord.

COVER: Black, synthetic SBR rubber. Long-lasting weathering and ozone resistant. Mylar layline for positive, permanent identification.

FEATURES: Softwall delivery structure; Highly robust hose structure; Long lasting in severe applications;

Long length assemblies available – Max. length: 61m

TEMPERATURE RANGE: From -40°C to +80°C (-40°F to +176°F).

SANDSERVICE/21 D MATCH COUPLING SERIES
PART NO HOSE SIZE TWO-PIECE
HOSE DN DASH SKIVE
H80019019 19 -12 SR+D08000 SERIES
H80019025 25 -16 SR+D08000 SERIES
H80019031 31 -20 SR+D08000 SERIES
H80019038 38 -24 SR+D08000 SERIES
H80019051 51 -32 SR+D08000 SERIES
