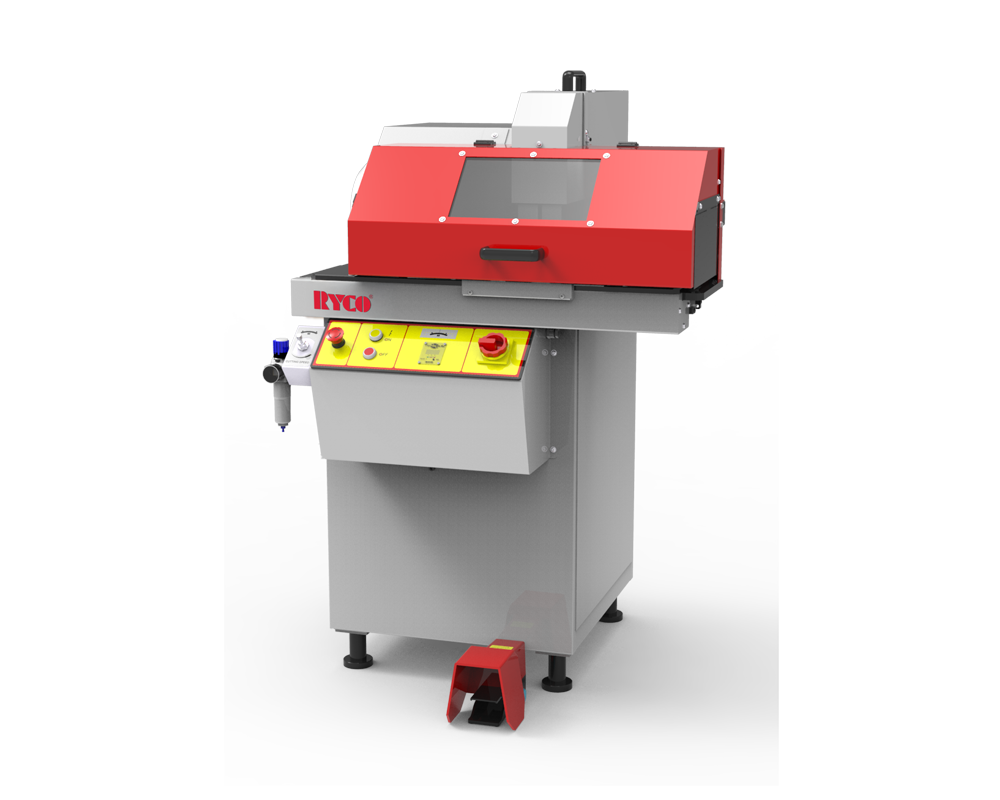

RY-75-CUT-P

RY 75 CUT Pneumatic

EXPERT SERVICE LINE
STAND TYPE CUTTING MACHINE

KEY FEATURES:
• Very powerful
• Heavy duty for difficult cuts
• Resistant for extreme cuts
• New design:
        Easy maintenance
        Efficiency for smoke extraction
• Motor brake
• Pneumatic version (option)
• Option for industrial hose:
        Blade 540 mm for hoses with external OD max 150 mm

CAPACITY:
2wb: 3” max.
4ws: 2” max.
6ws: 2” max.

ROTATION SPEED:
3000 rpm

SCALLOPED BLADE DIAMETER:
520 mm (20.5”) included

MAX HOSE OD.:
125 mm (5”)**

MOTOR:
7.5 kW

VOLTAGES:
220/240 V, 3Ph, 50 Hz
380/415 V, 3Ph, 50 Hz
208/240 V, 3Ph, 60 Hz

DIMENSIONS:
910 x 820 x 1280 mm
(36 x 32 x 50”)

NET WEIGHT:
215 kg (474 lb)

TECHNICAL FEATURES:
Diameter of suction connection:
130 mm
Electronic soft start

Optional tool: ²
Pneumatic version
Other blade on demand

*Minimum air pressure : 9,5 bar
**150 mm with blade option 540 mm

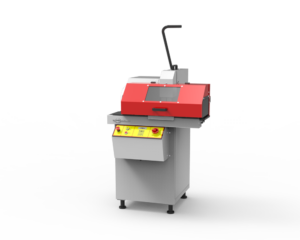

RY-75-CUT-P-Manual

RH-Standard-Optional-Slotted-Blade-2
Slotted Blade
Standard-Optional-Cutting-Rail Standard-Optional-Smooth-Blade Standard-Optional-Smoke-Extractor-2 Standard-Optional-Decoiler Standard-Optional-DV-32
Cutting Rail Smooth Blade Smoke Extractor
*except version 12/24V		 Decoiler DV 32
