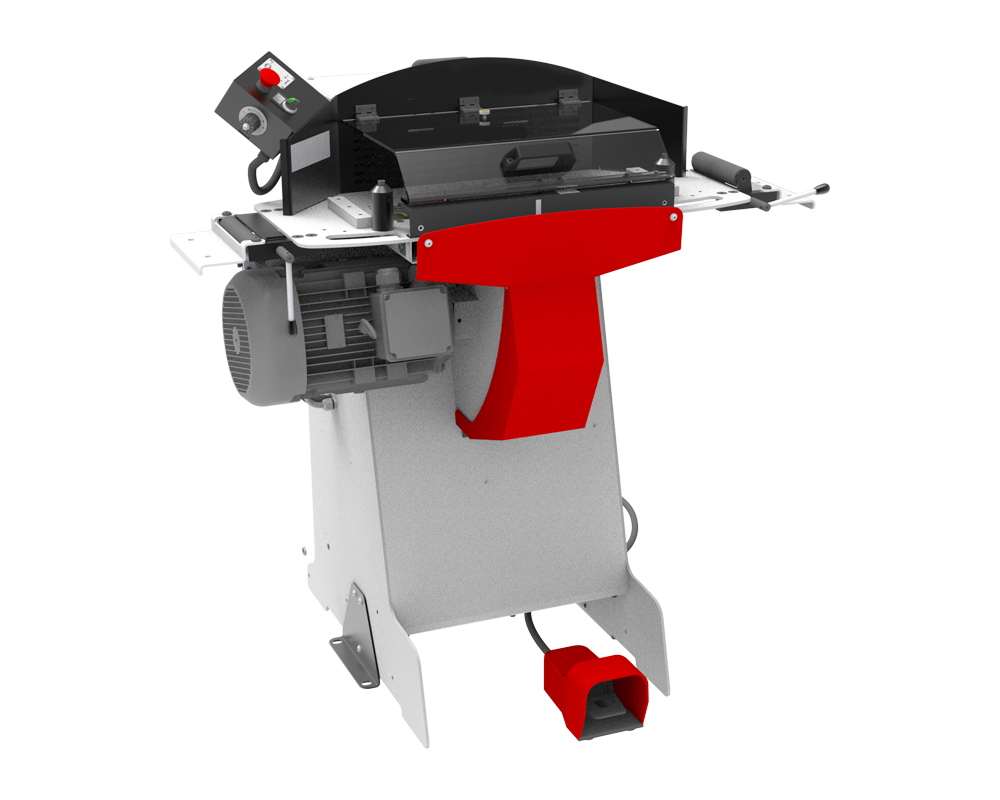

RY-55-CUT-P-v2

RY 55 CUT Pneumatic

EXPERT SERVICE LINE
STAND TYPE CUTTING MACHINE

KEY FEATURES:
• Versatile, slotted blade for high performance with minimal smoke
• Ergonomic and functional design
• Double foot pedal system
• Safety cover and feeding guides for hose (easy and fast cutting operation)
• Digital counter for maintenance assistance
• Adjustable speed for cutting on pneumatic version

CAPACITY:
2wb: 3” max.
4ws: 2” max.
6ws: 2” max.
Industrial: 2”

ROTATION SPEED:
3000 rpm

SCALLOPED BLADE DIAMETER:
400 mm (15.7”)

MAX HOSE OD.:
80 mm (3.15”)

MOTOR:
7.5 kW

VOLTAGES:
220/240 V, 3Ph, 50 Hz
380/415 V, 3Ph, 50 Hz
208/240 V, 3Ph, 60 Hz
Other voltages available on request

DIMENSIONS:
1140 x 1000 x 1280 mm
(45 x 39 x 50”)

PACKAGING:
1600 x 1200 x 1600 mm
(63 x 47 x 63”)

NET WEIGHT:
240 kg (529 lb)

GROSS WEIGHT:
280 kg (617 lb)

TECHNICAL FEATURES:
Diameter of the suction connection: 150 mm (6”)

Options: Pneumatic bending system, scalloped blade

* Indicative capacities depending on hose type.

RY-55-CUT-P-Classic-version

RH-Standard-Optional-Slotted-Blade-2 Standard-Optional-Smoke-Suction-Connector Standard-Optional-2-Dust-Collector Standard-Optional-Control-Panel
Slotted Blade Smoke Suction Connector 2 Dust Collectors Control Panel
Standard-Optional-Cutting-Rail Standard-Optional-Smooth-Blade Standard-Optional-Smoke-Extractor-2 Standard-Optional-Decoiler Standard-Optional-DV-32
Cutting Rail Smooth Blade Smoke Extractor
*except version 12/24V		 Decoiler DV 32
